UHF RFID Panel Antenna
UHF RFID Panel Antenna

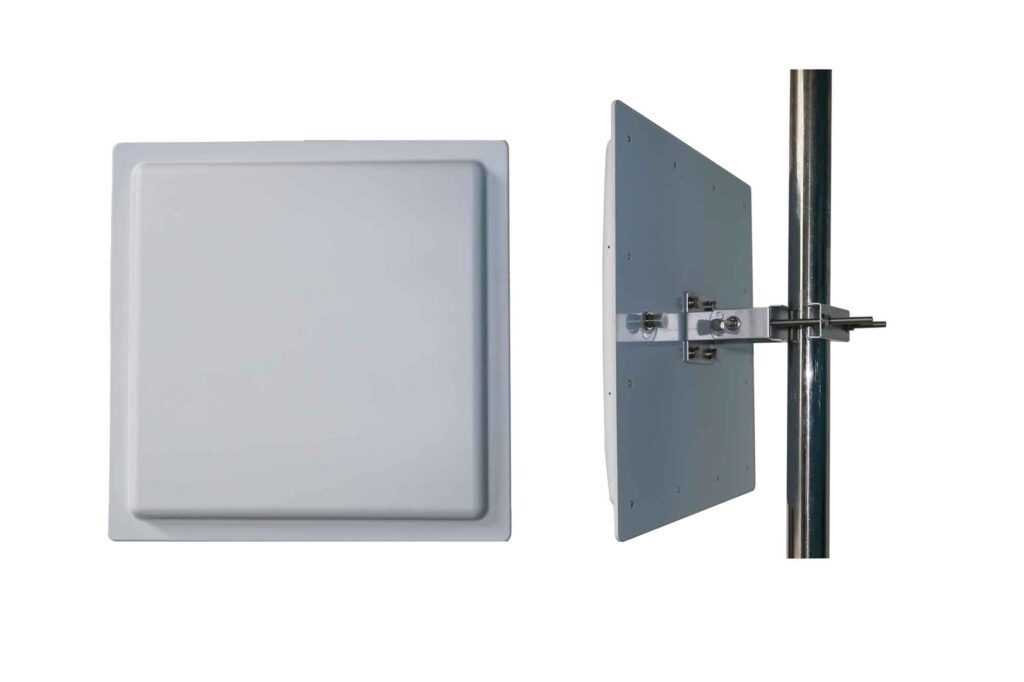

Airplux Technologies UHF RFID Panel Antenna is engineered to provide accurate tag detection, stable RF performance, and reliable coverage for modern RFID identification systems. Available in multiple gain options from 5.5dBi to 15dBi, it offers flexible solutions for different reading distances, coverage requirements, and installation environments.
Designed with optimized radiation patterns, low VSWR, and consistent signal performance, the antenna ensures reliable RFID communication even in complex operating conditions. Factory pre-tuned and fully assembled, Airplux panel antennas support quick deployment and stable long-term operation across logistics, warehousing, asset tracking, and access control applications.
Overview: UHF RFID Panel Antenna for Reliable RFID Reading
UHF RFID panel antennas are designed for fixed RFID systems that require stable coverage, accurate tag detection, and consistent signal performance. Unlike handheld RFID solutions, panel antennas provide a dedicated reading area, making them suitable for automated identification environments where reliable performance is essential.
With different gain levels, polarization options, and installation designs, UHF RFID panel antennas can be deployed in various applications including warehouse management, asset tracking, vehicle identification, and access control systems.
Airplux provides flexible panel antenna solutions that help customers achieve efficient RFID deployment with reliable communication between tags, antennas, and readers.
- In a fixed RFID system, the panel antenna plays a critical role in transmitting and receiving RF signals between tags and readers.
key Features
- Multiple Gain Options：Available from 5.5dBi to 15dBi to support different reading distances.
- Stable RF Performance：Optimized radiation patterns and low VSWR ensure reliable signal transmission.
- Flexible Polarization Options：Circular and linear polarization designs meet different application needs.
- Durable Installation Design：Compact housing supports flexible installation for indoor and outdoor applications.
Applications
- warehouse＆logistics：Supports inventory tracking, automated identification, and warehouse management systems.
- vehicle identification：Suitable for parking management, vehicle tracking, and access control systems.
- asset management：Enables reliable item identification and efficient asset monitoring operations.
- industrial RFID systems：Designed for fixed RFID applications requiring stable long-term performance.
UHF RFID Panel Antenna Models & Specifications
Explore Airplux UHF RFID Panel Antenna models with detailed specifications, including frequency range, gain, polarization, beam width, dimensions, and other key performance parameters to help select the right antenna solution for different RFID applications.
| Model | Gain (dBi) | Beam Width (H/V) | Polarization | Dimensions (mm) |

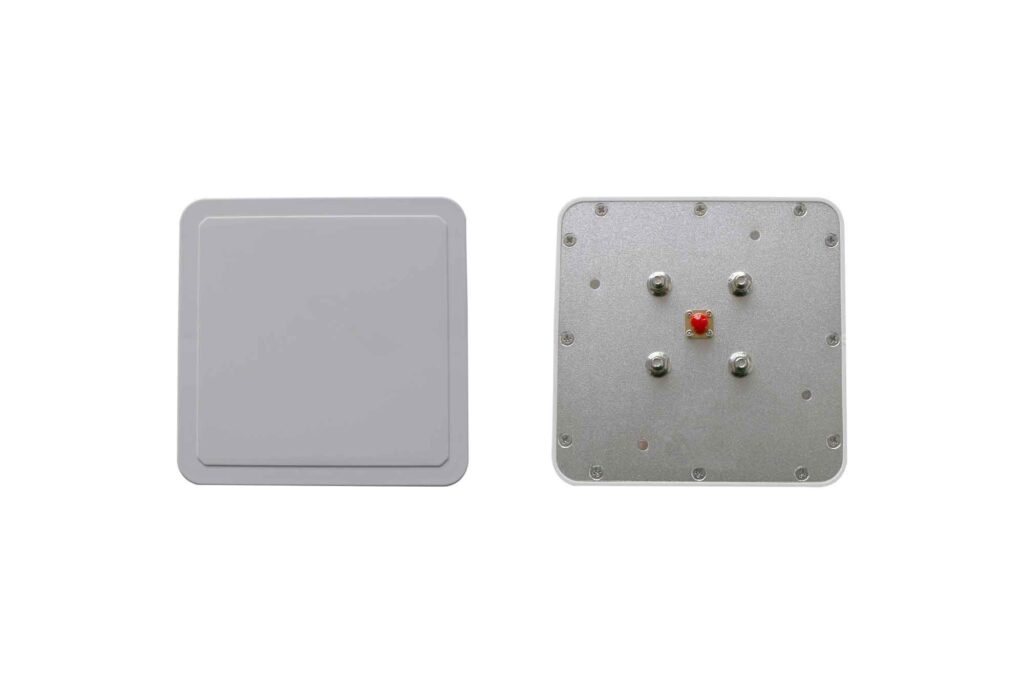

| APRIA86965CA | 5.5 | 190° / 90° | Circular | 140x120x25 |

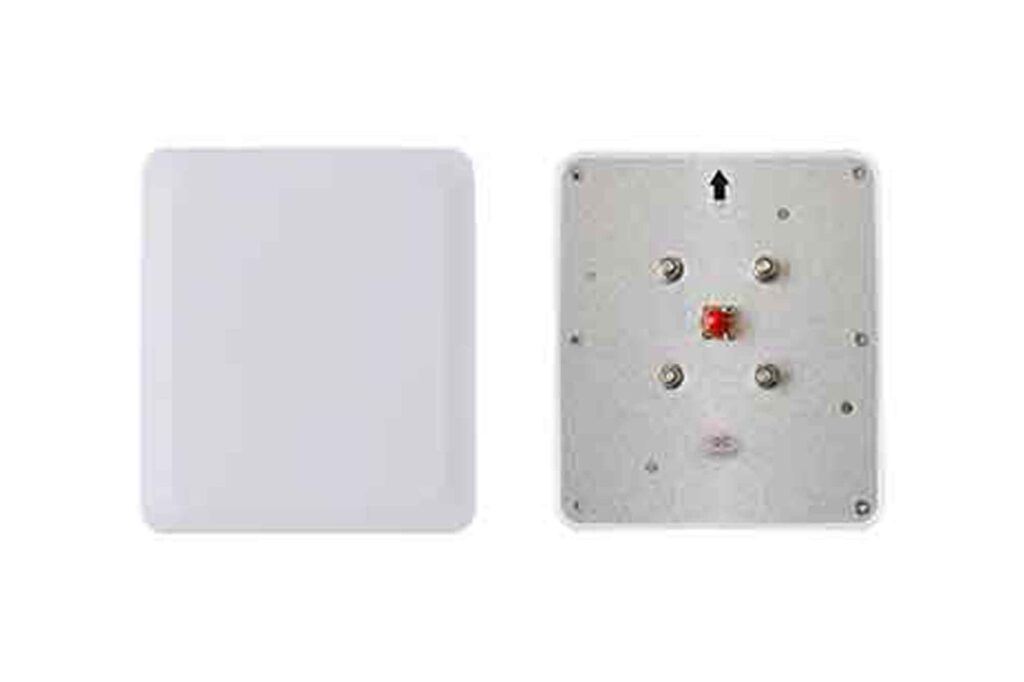

| APRIA86966CA | 6 | 105° / 95° | Circular | 130x130x18.5 |

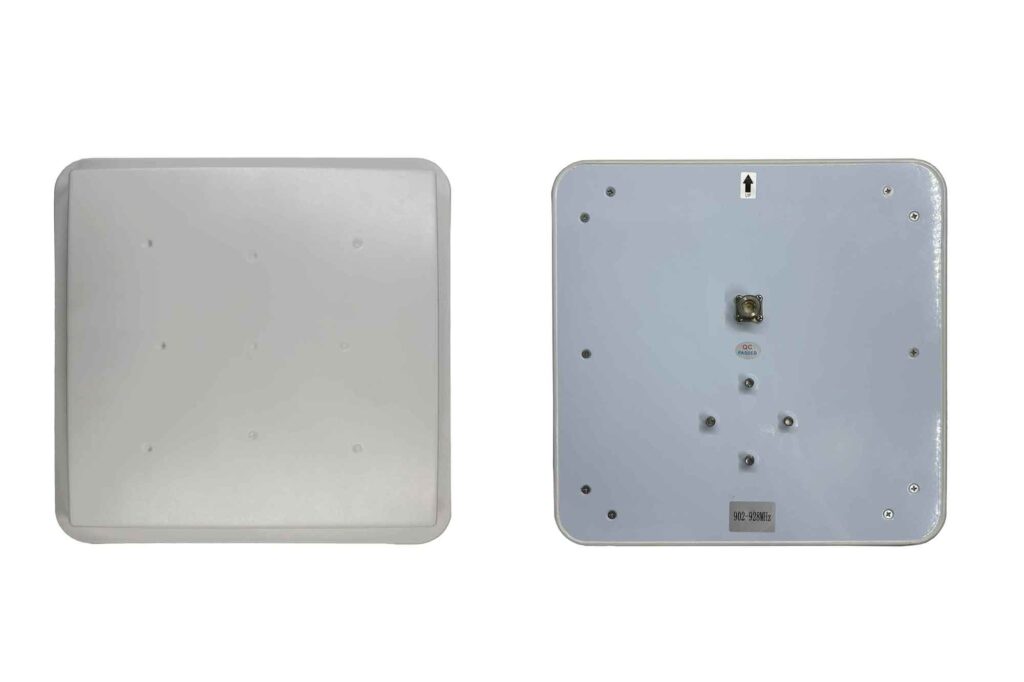

| APRIA8008CA / APRIA9008CA | 8 | 60° / 60° | Circular | 256x256x42.5 |

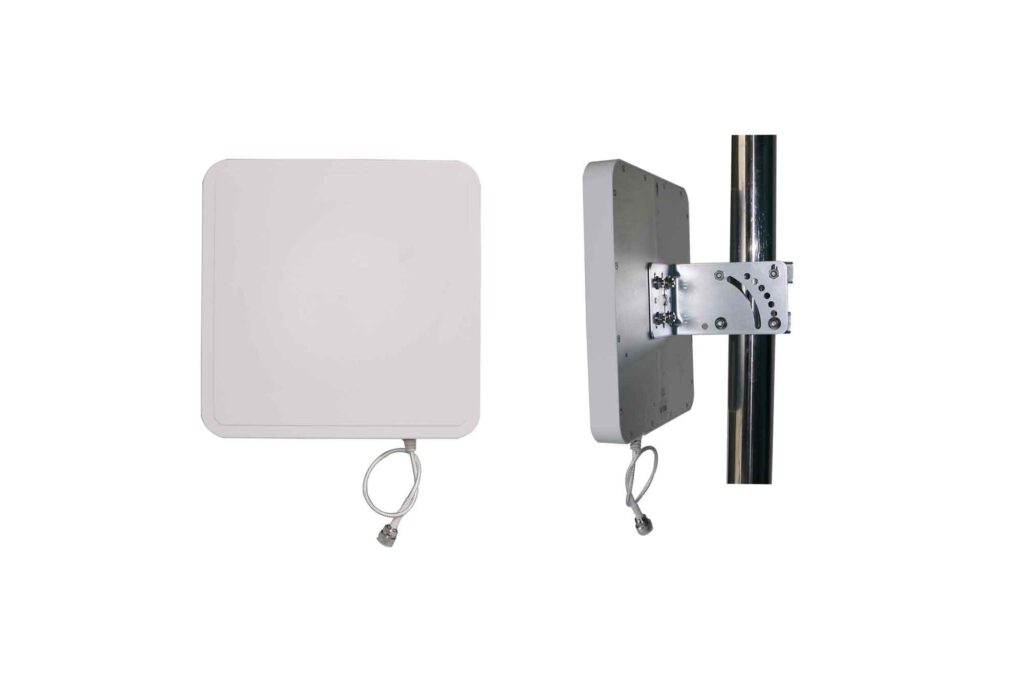

| APRIA86969CA | 9 | 70° / 60° | Circular | 260x260x30 |

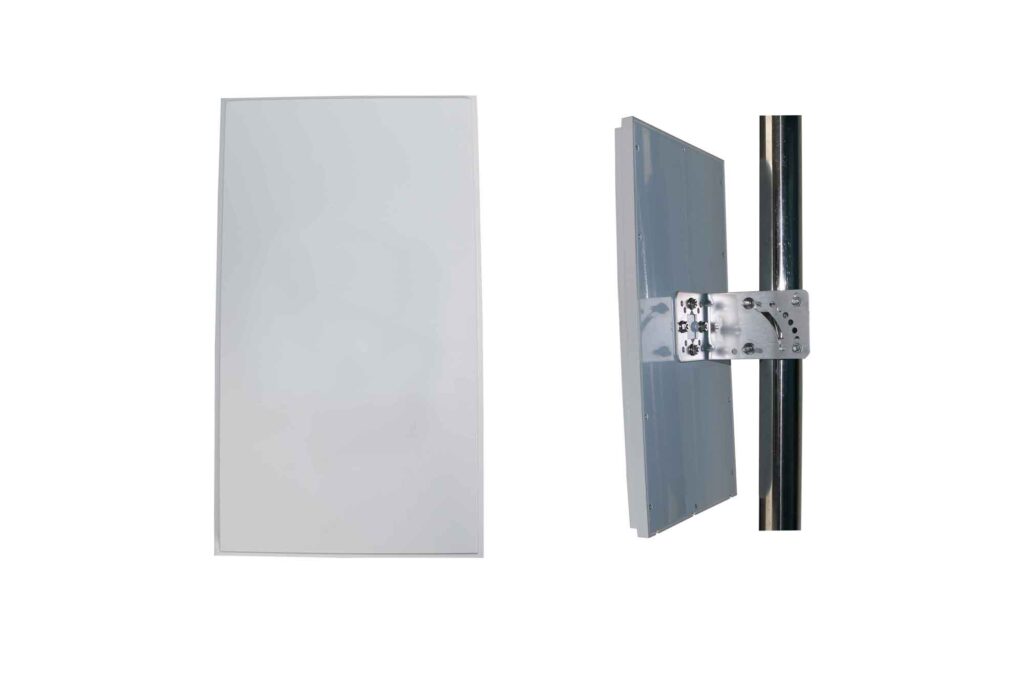

| APRIA80010CA / APRIA90010CA | 10 | 65° / 65° | Circular | 420x240x30 |
| APRIA80012CA / APRIA90012CA | 12 | 40° / 40° | Circular | 445x445x42 |

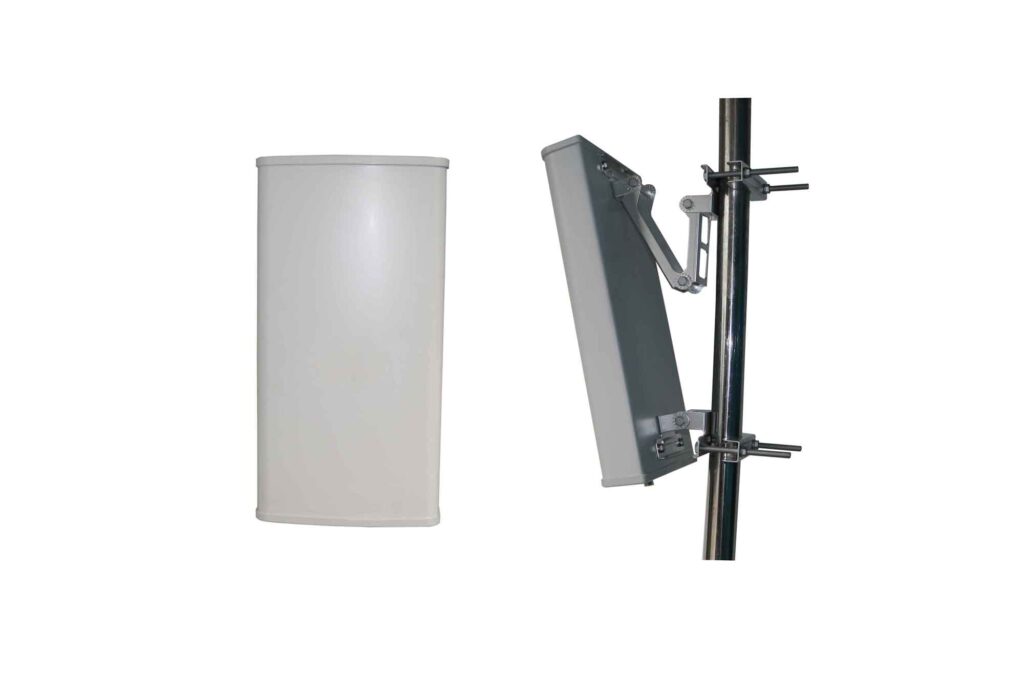

| APRIA869612VA | 12 | 65° / 30° | Vertical | 606x285x80 |

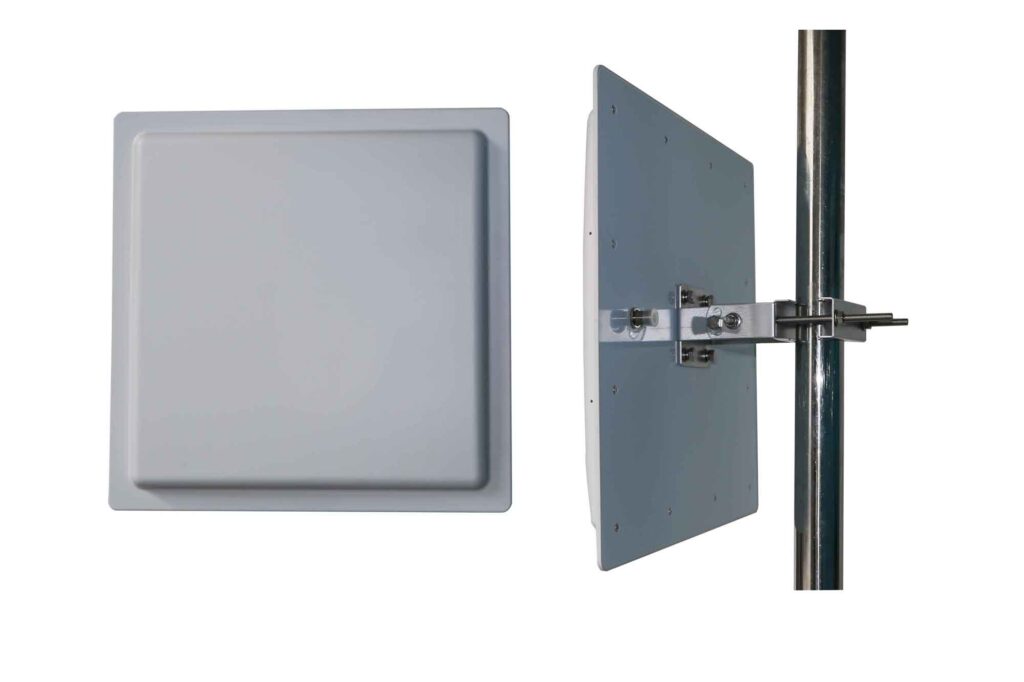

| APRIA869612HA | 12 | 40° / 40° | Horizontal | 445x445x42 |

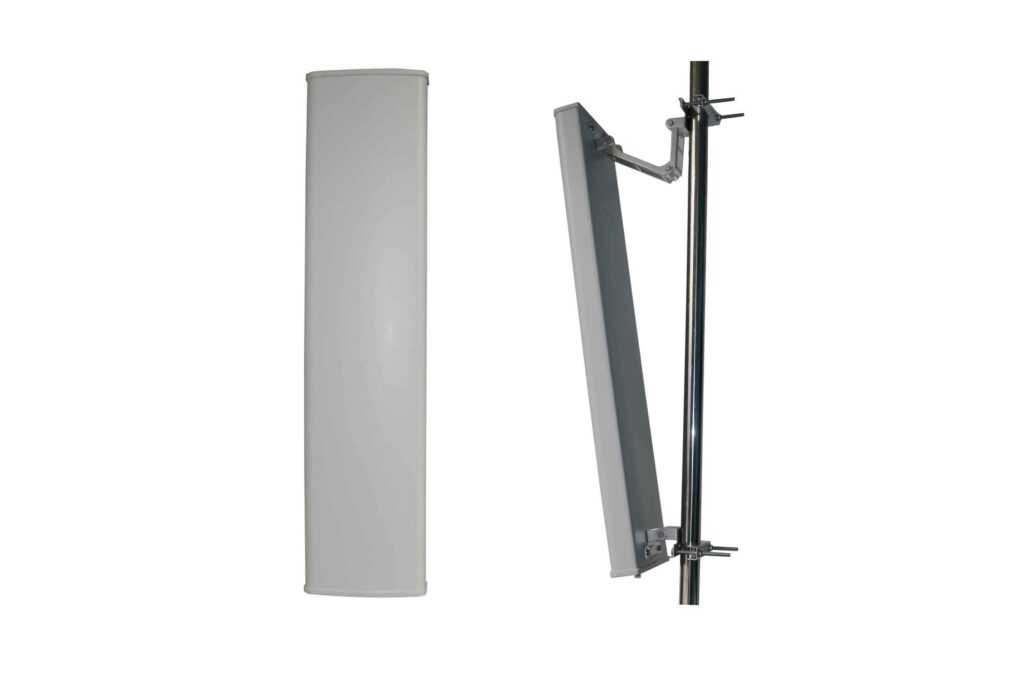

| APRIA869615VA | 15 | 65° / 30° | Vertical | 1205x285x80 |
FAQ
Circular polarized panel antennas (such as our 5.5dBi to 12dBi models) are ideal for dynamic environments like supply chains and retail, as they can read tags from multiple angles.
Linear polarized antennas (Vertical/Horizontal) focus all their energy in a single plane, yielding a longer read range and higher penetration—perfect for predictable tracking such as vehicle toll gates or corridor access control where tag orientation is fixed.
A UHF RFID Panel Antenna is a type of RFID reader antenna designed to provide reliable wireless communication between UHF RFID readers and tags.
In a UHF RFID system, the panel antenna connects to the RFID reader through an RF cable and transmits radio frequency signals to activate passive RFID tags. It also receives the signals returned from RFID tags for identification.
A complete UHF RFID system typically includes:
- RFID Tags
- UHF RFID Reader
- Panel Antennas
- Software Platform
Due to their flat structure and directional radiation characteristics, UHF RFID panel antennas are widely used in:
- Warehouse inventory management
- Logistics tracking
- Manufacturing automation
- Access control systems
- Asset tracking applications
Choosing the right UHF RFID Panel Antenna depends on the application environment, reading distance, coverage area, and tag orientation.
The key factors include:
Reading Distance
Long-range applications may require higher gain antennas, while short-range applications may require antennas with more controlled coverage.
Polarization Type
- Circular polarized antennas are suitable for applications where tag orientation changes.
- Linear polarized antennas are suitable when tag direction is fixed.
Beam Width
A wider beam provides broader coverage, while a narrow beam allows more precise reading in specific areas.
Installation Environment
Metal structures, surrounding objects, and mounting position can affect RFID performance.
A proper antenna selection should match the complete RFID system, including the reader and RFID tags.
A UHF RFID Panel Antenna directly affects RFID reading performance, but reading distance depends on the entire RFID system rather than the antenna alone.
Important factors include:
Antenna Gain
Higher gain can provide stronger directional coverage and longer reading distance in suitable applications.
Beam Width
A narrower beam focuses energy into a smaller area, while a wider beam provides broader coverage.
RFID Tag Performance
Tag size, chip type, material, and installation position can influence read range.
Environment
Metal objects, liquids, and signal reflections may reduce RFID performance.
Therefore, selecting an antenna based only on maximum reading distance may not provide the best result.
UHF RFID Panel Antennas are commonly used in applications that require fixed-position identification and reliable tag reading.
Typical applications include:
Warehouse and Logistics
- Inventory tracking
- Pallet identification
- Shipping and receiving management
Manufacturing
- Production line tracking
- Work-in-process monitoring
- Tool management
Retail
- Smart shelves
- Automated inventory checking
Industrial Applications
- Asset tracking
- Equipment identification
Panel antennas are especially suitable for fixed installations where the reading area needs to be clearly defined.
Unstable RFID reading performance is usually caused by a combination of antenna selection, installation, and environmental factors.
Common reasons include:
Incorrect Antenna Type
The antenna beam pattern may not match the required reading area.
Wrong Polarization
The tag orientation may not match the antenna polarization.
Environmental Interference
Metal surfaces, liquids, and nearby objects may affect RF signal transmission.
Improper Installation
Antenna position, angle, cable length, and mounting method can influence system performance.
To improve reliability, the complete RFID system should be evaluated, including:
- RFID reader
- Antenna
- Cable
- Tag type
- Installation environment
About Airplux RFID Antenna
Solutions
Airplux Technologies specializes in RFID antenna design and manufacturing, providing reliable RFID antenna solutions for various identification and tracking applications.
With professional antenna design capabilities and manufacturing experience, Airplux offers a wide range of RFID antennas, including UHF RFID antennas, near-field RFID antennas, ceramic RFID antennas, narrow beam antennas, and integrated RFID antenna solutions.
Our RFID antennas are designed to deliver stable signal performance, accurate tag reading, and reliable operation in different RFID environments. By supporting both standard products and customized antenna solutions, Airplux helps system integrators, enterprises, and manufacturers develop efficient RFID systems for inventory management, access control, logistics tracking, asset management, and other applications.
