10dBi Long Range UHF RFID Antenna
Long Range UHF RFID Antenna
Model: APRIA80010CA
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 10dBi
Product Descriptions
The APRIA80010CA 10dBi Circular Polarization Panel Antenna is a versatile UHF RFID antenna designed for reliable performance in the 865-868MHz band. With 10dBi gain, circular polarization, and a 75° × 40° beamwidth, it provides consistent tag detection and broad coverage. Its IP65-rated aluminum radome makes it suitable for warehouse management, portal gates, parking access, and other indoor or outdoor RFID applications.
Descriptions
- 865-868MHz
- 10dBi
- Circular Polarization
- 420*240*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking management
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 10dBi |
Beam width | Hor：75° Ver：40° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Dimension | 420*240*30mm |
Net weight | 1.15kg |
Packing size | 45*25*5.5cm |
Gross weight | 1.95kg |
Radome material | Aluminum |
Radome colour | White |
Pole Diameter | Φ40-80mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |
Antenna Pattern

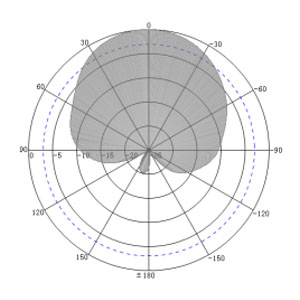

H-Plane

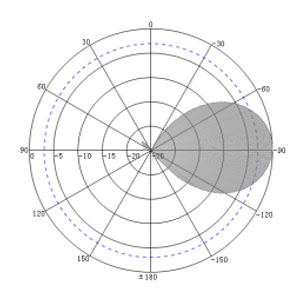

E-Plane
Antenna Drawing
Installation Photos
Applications
Warehouse Management
Optimizes inventory handling in distribution centers and warehouses by automating item identification and movement, improving operational efficiency.
RFID logistics tracking
Enhances logistics operations by enabling real-time item identification and tracking throughout transportation, sorting, and distribution processes, improving visibility and efficiency.
Door control system
Improves access control by automatically identifying authorized RFID tags at entrances and exits, enabling fast and reliable access management.
Parking management
Streamlines vehicle access and parking operations by using RFID for automatic vehicle identification, entry and exit management, and efficient parking control.
