8dBi UHF Circular Polarized RFID Antenna
Circular Polarized RFID Antenna
Model: APRIA8008CA
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 8dBi
Product Descriptions
The APRIA8008CA 8dBi Circular Polarized RFID Antenna is a mid range, flat panel antenna.It is one of the most common type of RFID antenna, provides a 60 degrees beamwidth. The design of circular polarization makes the antenna could read the horizontal tag or vertical tag. The antenna size is 256x256x42.5mm, comes with an integral N-Female connector and includes pole mount bracket.
The rugged antenna radome is suitable for a range of indoor / outdoor RFID deployments, including industrial applications.It’s wide using application such as warehousing, logistic, production, yard. It’s used on assets tracking, warehouse management, intelligent traffic management, vehicle tracking, production line management, intelligent weight measurement etc.
This model is ETSI UHF RFID frequencies for 865-868MHz, there is also another model is ETSI UHF RFID frequencies for902-928MHz.
Descriptions
- 865-868MHz
- 8dBi
- Circular Polarization
- 256*256*42.5mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking management
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 8dBi |
Beam width | Hor：65° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Dimension | 256*256*42.5mm |
Net weight | 0.65kg |
Packing size | 29*29*8cm |
Gross weight | 1.32kg |
Radome material | ABS |
Radome colour | White |
Pole Diameter | Φ30-50mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |

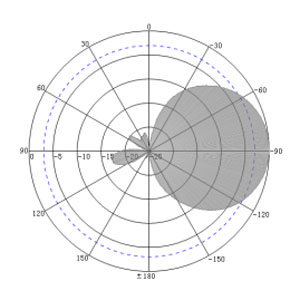

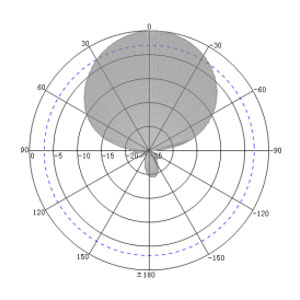

Antenna Pattern
H-Plane
E-Plane
Antenna Drawing
Installation Photos
Applications
Warehouse Management
Optimizes inventory handling in distribution centers and warehouses by automating item identification and movement, improving operational efficiency.
RFID logistics tracking
Enhances logistics operations by enabling real-time item identification and tracking throughout transportation, sorting, and distribution processes, improving visibility and efficiency.
Door control system
Improves access control by automatically identifying authorized RFID tags at entrances and exits, enabling fast and reliable access management.
Parking management
Streamlines vehicle access and parking operations by using RFID for automatic vehicle identification, entry and exit management, and efficient parking control.
