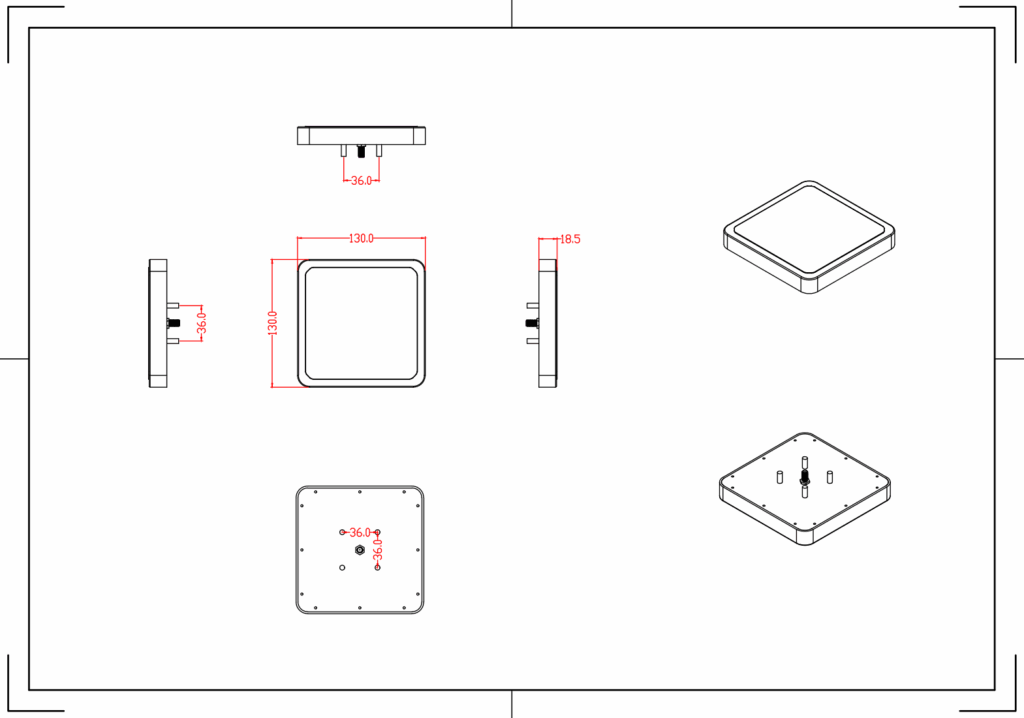

6dBi UHF RFID Patch Antenna – 130x130mm

An RFID antenna transmits and receives radio frequency signals between an RFID reader and RFID tags. It enables the reader to communicate with tags and retrieve their stored identification data. In a typical RFID system, the antenna works with the reader, tags, and software to support functions such as inventory tracking, asset identification, and access control. Antenna selection affects the reading area, communication performance, and reliability of the overall RFID system.

Circularly polarized RFID antennas are useful when tag orientations vary or cannot be controlled, while linearly polarized antennas generally perform best when tag and antenna polarization are properly aligned. Circular polarization can help improve the likelihood of detecting tags at different orientations, although actual performance depends on the tag, antenna placement, and RF environment. For outdoor inventory tracking and access control, circular polarization can be a practical choice when items pass through the reading area in different positions.

A low voltage standing wave ratio (VSWR) indicates better impedance matching between the antenna and its connected RF system, helping reduce reflected power. The APRIA86966CA has a VSWR of no more than 1.3 and a nominal impedance of 50 Ω. Proper cable selection and connector compatibility are also important for overall system performance.

The APRIA86966CA has an IP65 rating, meaning its enclosure is dust-tight and protected against water jets under specified test conditions. Its operating temperature range is -20°C to 60°C. Before using it in a freezer management system, confirm that the actual temperature remains within this range and assess condensation, icing, and connector protection.

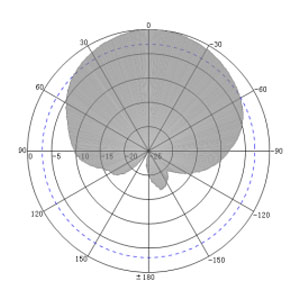

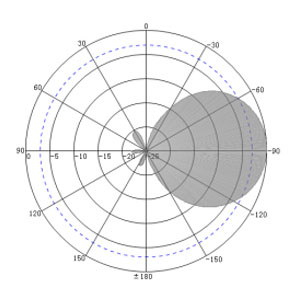

Yes. A 6 dBi circularly polarized antenna can be considered for smart retail and asset tracking systems that require RFID tag detection within a defined area. The APRIA86966CA has a 105° horizontal and 95° vertical beamwidth, making antenna placement important when defining the reading zone. Performance depends on tag placement, reader configuration, and the surrounding materials.

The APRIA86966CA operates across 860–960 MHz, has a 50 Ω impedance, and uses an SMA-Female connector. To confirm compatibility, check that the RFID reader supports the required operating frequency and that the cable or adapter matches the antenna connector. The reader’s regional frequency configuration must also comply with local regulations.
