9dBi Long Range UHF RFID Antenna
Long Range UHF RFID Antenna
Model: APRIA8009CC
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 9dBi
Product Overview
Airplux 9dbi long range UHF RFID Antenna is engineered for superior performance in the 865–868MHz band, making it ideal for inventory tracking, access control, and industrial RFID portals.
Electrical highlights: With 9dBi gain and a symmetrical 70° beam width (both horizontal and vertical), it delivers reliable circular-polarized coverage. The ≤1.4 VSWR and ≥20dB front-to-back ratio ensure excellent impedance matching and low interference. Impedance is 50Ω, maximum power handling is 50W, and DC ground lightning protection provides built-in surge safety.
Mechanical durability: The compact 260×260×30mm ABS white radome houses an N-type female connector. Net weight is 1.1kg, gross weight 1.68kg, and packing size 29×29×8cm. It supports pole diameters of Φ30-50mm, operates from -40°C to 70°C, and withstands rated wind velocities up to 60m/s—making it a rugged choice for both outdoor and industrial RFID deployments.
Descriptions
- 865-868MHz
- 9dBi
- Circular Polarization
- 260*260*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Man management system
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：70° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Dimension | 260*260*30mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Gross weight | 1.68kg |
Radome material | ABS |
Radome colour | White |
Pole Diameter | Φ30-50mm |
Rated wind velocity | 60m/s |
Operating temperature | -40-70℃ |
Antenna Pattern

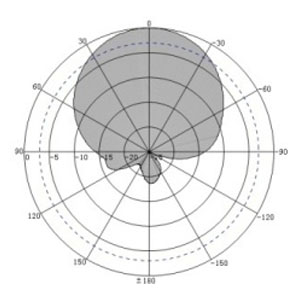

H-Plane

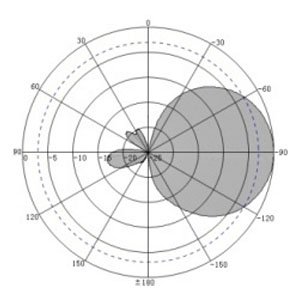

E-Plane

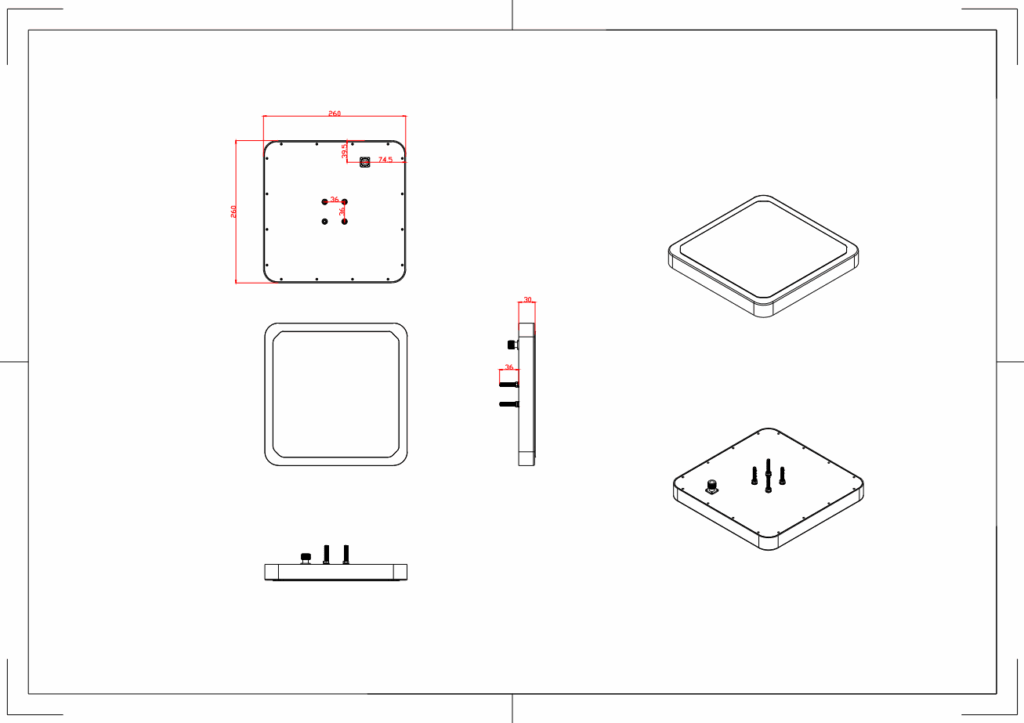

Antenna Drawing
