9dBi Long Range RFID Reader Antenna
Long Range RFID Reader Antenna
Model: APRIA8009CB
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 9dBi
Product Descriptions
9dbi Long Range RFID Reader Antenna is specifically designed for reliable operation in the 865–868MHz band, making it suitable for warehouse portals, retail checkpoints, and automated identification systems.
Electrical performance: The antenna delivers 9dBi gain with a symmetrical 70° beam width (horizontal and vertical) and circular polarization, ensuring consistent tag reading from multiple orientations. Key electrical characteristics include VSWR ≤1.4, front-to-back ratio ≥20dB, impedance of 50Ω, and maximum input power of 50W. The DC ground lightning protection enhances surge immunity, while the N‑type female connector ensures a secure RF interface.
Mechanical and environmental features: The compact 260×260×30mm ABS white radome supports hanging installation, with a net weight of 1.1kg. Packing dimensions are 29×29×8cm and gross weight 1.68kg. It operates reliably from -40°C to 70°C, making this RFID reader antenna a durable choice for both indoor and outdoor deployments.
Descriptions
- 865-868MHz
- 9dBi
- Circular Polarization
- 260*260*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking management
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：70° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Dimension | 260*260*30mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Gross weight | 1.68kg |
Radome material | ABS |
Radome colour | White |
Installation | Hanging installation |
Operating temperature | -40-70℃ |
Antenna Pattern

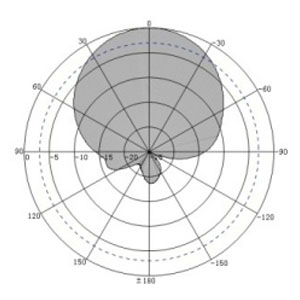

H-Plane

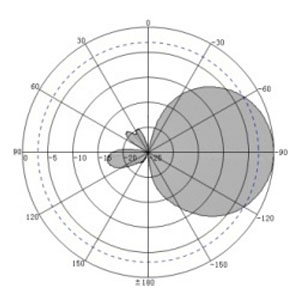

E-Plane

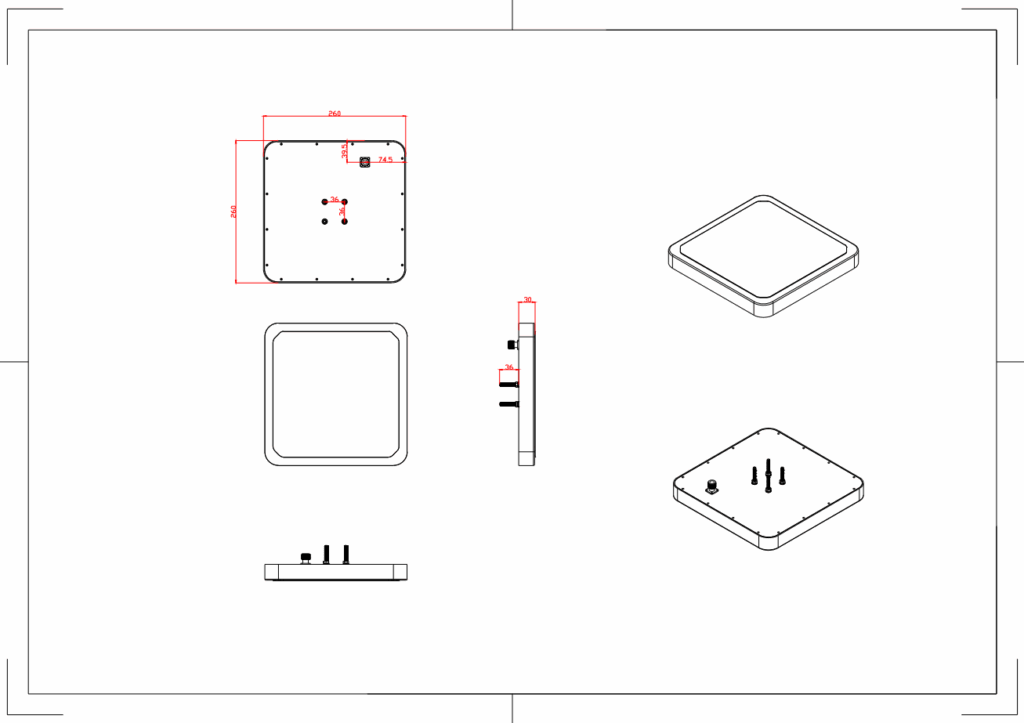

Antenna Drawing
RFID Antenna Applications

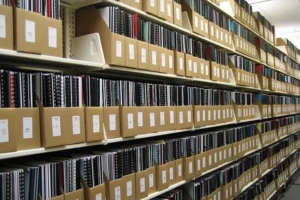

File Management

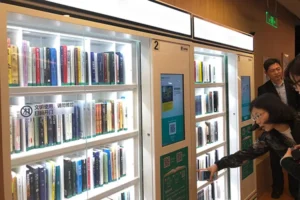

Libray Management

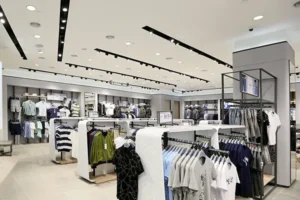

Retail store management

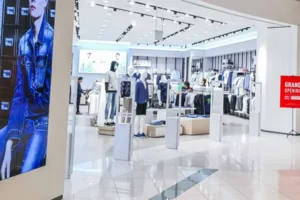

Door control system

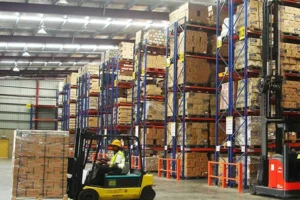

Warehouse Management

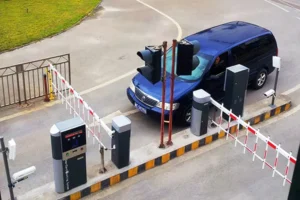

Parking management
