6dBi Ultra-Slim UHF RFID Antenna - 960x34x5mm

Ultra-Slim UHF RFID Antenna

Model: APRIA9006LX-960

Frequency Range: 902-928MHz

Polarization: Linear

Gain: 6dBi

Product Descriptions

The APRIA9006LX-960 uses a 960 mm elongated PCB design to support concealed RFID installations along larger surfaces or extended equipment layouts. Its 6 dBi gain and narrow vertical beam help focus coverage within the intended reading area, making it suitable for production line management, garment management, access control, and smart inventory systems where a discreet, extended antenna format is preferred.

Descriptions

  • 902-928MHz
  • 6dBi
  • Linear Polarization
  • 960*34*5mm

Applications

  • Production line management
  • Garment management
  • Access control system
  • Smart inventory

Product Specifications

Electrical Specifications

Frequency

902-928MHz

Gain

6dBi

Beam width

Hor:191°  Ver:16°

Polarization

Linear

VSWR

≤1.5

Impedance

50Ω

Maximum power

100W

Lightning protection

DC Ground

Connector

SMA-Female

Mechanical Specifications

Antenna dimensions

960*34*5mm

Net weight

0.6kg

Packing size

98*5*3cm

Gross weight

0.7kg

Antenna material

PCB

Antenna color

Black

Operating temperature

-20-60℃



Antenna Pattern

6dBi Ultra-Slim UHF RFID Antenna - 960x34x5mm - Antenna Pattern H

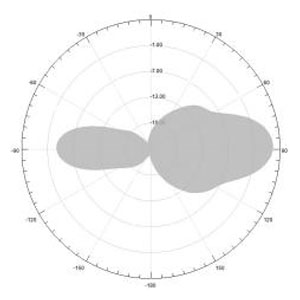

6dBi Ultra-Slim UHF RFID Antenna - 960x34x5mm - Antenna Pattern V

H-Plane

E-Plane

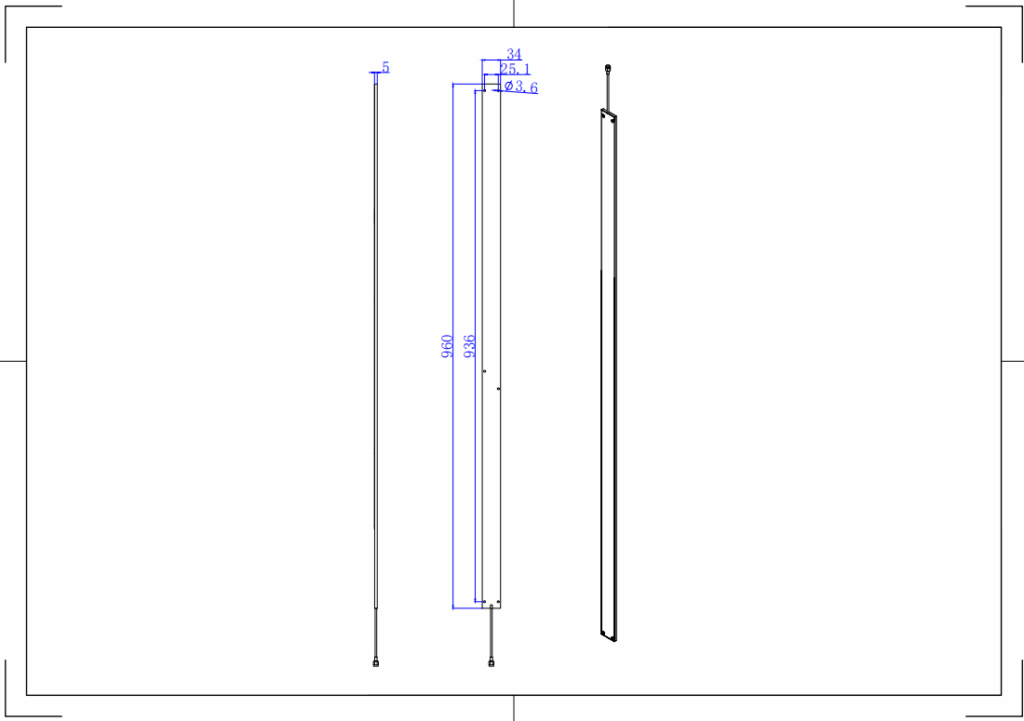

Antenna Drawing

6dBi Ultra-Slim UHF RFID Antenna - 960x34x5mm

Applications

product line

Production Line Management

Retail Inventory Management

Garment management

Access Contral

Access control system

Smart inventory

Smart inventory

PRODUCT SUPPORT

FAQ - 902–928MHz UHF RFID Antenna

902–928MHz UHF RFID antennas are commonly used in applications that require wireless identification and tracking of tagged items. Typical examples include:​

  • Warehouse management: Identifying goods during storage, inventory checks, and movement.​
  • Logistics tracking: Supporting identification at shipping, receiving, and distribution checkpoints.​
  • Retail inventory: Tracking tagged products and improving stock visibility.​
  • Industrial automation: Identifying components and work-in-progress items along production processes.​
  • Asset management: Tracking tools, equipment, and other valuable assets.​

The antenna design should match the application’s reading area, tag orientation, installation environment, and required coverage.​

RFID reading performance depends on several factors working together. These include antenna gain, polarization, tag sensitivity, reader output power, antenna positioning, and the distance between the antenna and tags.​

The surrounding environment also matters. Metal structures, liquid-filled objects, and nearby reflective surfaces can affect RF propagation and create areas with weaker or inconsistent tag detection. To improve reading reliability, position the antenna carefully, check tag placement, and test the system under actual operating conditions.​

Installing a long RFID antenna requires attention to the available mounting length, supporting surface, antenna alignment, and cable routing. The antenna should be positioned in relation to the intended tag locations and the direction in which items move. Nearby metal structures and other materials may affect RF propagation, so the complete installation should be tested with representative tags. For the APRIA9006LX-960, the 960mm length should also be considered when planning mounting support and access for maintenance.

RFID systems can help identify tagged garments during receiving, sorting, storage, stocktaking, and dispatch. Antennas installed near designated work areas communicate with garment tags through RFID readers, allowing inventory software to record item information and movement. In sorting or handling areas, the reading setup should match how garments are presented and moved. Tag placement, garment arrangement, antenna alignment, and reader configuration all influence identification performance.

A narrow vertical beam concentrates the antenna’s main radiation pattern within a smaller vertical angle, which can be useful when planning coverage for a defined reading area. The APRIA9006LX-960 specifies a vertical beamwidth of 16° and a horizontal beamwidth of 191°. These figures help describe its radiation pattern, but they do not directly determine the actual reading distance or guarantee that tags outside the intended area will not be detected. Site layout, reflections, tag orientation, and reader settings must also be considered.

Yes. Linear polarized RFID antennas can be suitable for fixed reading zones where tag orientation is predictable or can be controlled. They are worth considering for applications such as production stations, garment handling areas, and equipment-based inventory systems. To achieve consistent performance, the tag antenna should be aligned with the RFID antenna’s polarization direction as closely as the application allows. If tag orientation varies significantly, the system should be tested under normal operating conditions before deployment.
