12dBi UHF RFID Antenna

An RFID antenna transmits and receives radio frequency signals between an RFID reader and RFID tags. It enables the reader to communicate with tags and retrieve their stored identification data. In a typical RFID system, the antenna works with the reader, tags, and software to support functions such as inventory tracking, asset identification, and access control. Antenna selection affects the reading area, communication performance, and reliability of the overall RFID system.

Circularly polarized RFID antennas are useful when tag orientations vary or cannot be controlled, while linearly polarized antennas generally perform best when tag and antenna polarization are properly aligned. Circular polarization can help improve the likelihood of detecting tags at different orientations, although actual performance depends on the tag, antenna placement, and RF environment. For outdoor inventory tracking and access control, circular polarization can be a practical choice when items pass through the reading area in different positions.

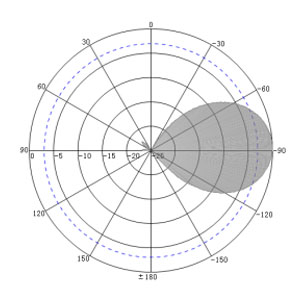

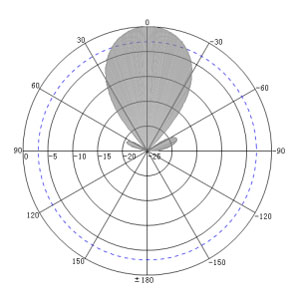

A 40° horizontal and vertical beamwidth creates a relatively focused reading area compared with antennas that have wider beamwidths. The APRIA869612HA is suitable for applications where RFID coverage needs to be directed toward a specific zone, such as a warehouse reading point, door control area, or parking access point. Accurate antenna alignment helps keep the intended area within the coverage zone.

A horizontally polarized antenna transmits and receives radio waves with horizontal polarization, while a circularly polarized antenna uses a rotating electric-field orientation. Horizontal polarization can work well when the RFID tags have a compatible orientation, but tag placement should be considered during installation. The APRIA869612HA uses horizontal polarization, so testing with the intended tags is recommended.

An IP64-rated antenna is dust-tight and protected against water splashes from any direction, but it is not designed for immersion in water. The APRIA869612HA has an aluminum enclosure and an operating temperature range of -20°C to 60°C. It may suit appropriately protected outdoor installations, provided the exposure conditions, mounting, and connector sealing meet the application’s requirements.

A 12 dBi panel antenna can be suitable for RFID logistics tracking, warehouse management, door control systems, and parking management when a defined reading zone is required. The APRIA869612HA combines 12 dBi gain with a 40° × 40° beamwidth, allowing installers to direct coverage toward the target area. Final performance depends on tag placement, reader settings, and the installation layout.
