14dBi UHF RFID Tool Cabinet Asset Management Antenna

UHF RFID Smart Cabinet Antenna

Model: APRIA90014CP

Frequency Range: 902-928MHz

Polarization: Circular

Gain: 14dBi

Product Descriptions

The APRIA90014CP is a 14dBi circularly polarized UHF RFID panel antenna designed for applications requiring focused RFID coverage. Operating at 902–928MHz, its narrow 30° horizontal and 28° vertical beamwidth helps concentrate the reading area in specific zones, making it suitable for logistics tracking, warehouse management, door access control, and file cabinet management. Its large 720 × 500mm panel design and organic glass radome provide a practical solution for fixed RFID installations.

Descriptions

  • 902-928MHz
  • 14dBi
  • Circular Polarization
  • 720*500*20mm

Applications

  • RFID logistics tracking
  • Warehouse management
  • Door control system
  • File cabinet management

Product Specifications

Electrical Specifications

Frequency

902-928MHz

Gain

14dBi

Beam width

Hor:30° Ver:28°

Polarization

Circular

VSWR

≤1.5

F/B Ratio

≥20

Impedance

50Ω

Maximum power

100W

Lightning protection

DC Ground

Connector

SMA-Female



Mechanical Specifications

Antenna dimensions

720*500*20mm

Net weight

3.5kg

Packing size

77*55*6cm

Gross weight

3.8kg

Radome material

Organic glass

Radome color

Black

Operating temperature

-20-60℃



Antenna Pattern

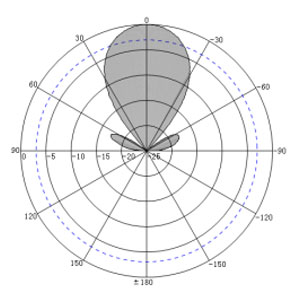

14dBi UHF RFID Tool Cabinet Asset Management Antenna - Antenna Pattern H
14dBi UHF RFID Tool Cabinet Asset Management Antenna - Antenna Pattern V

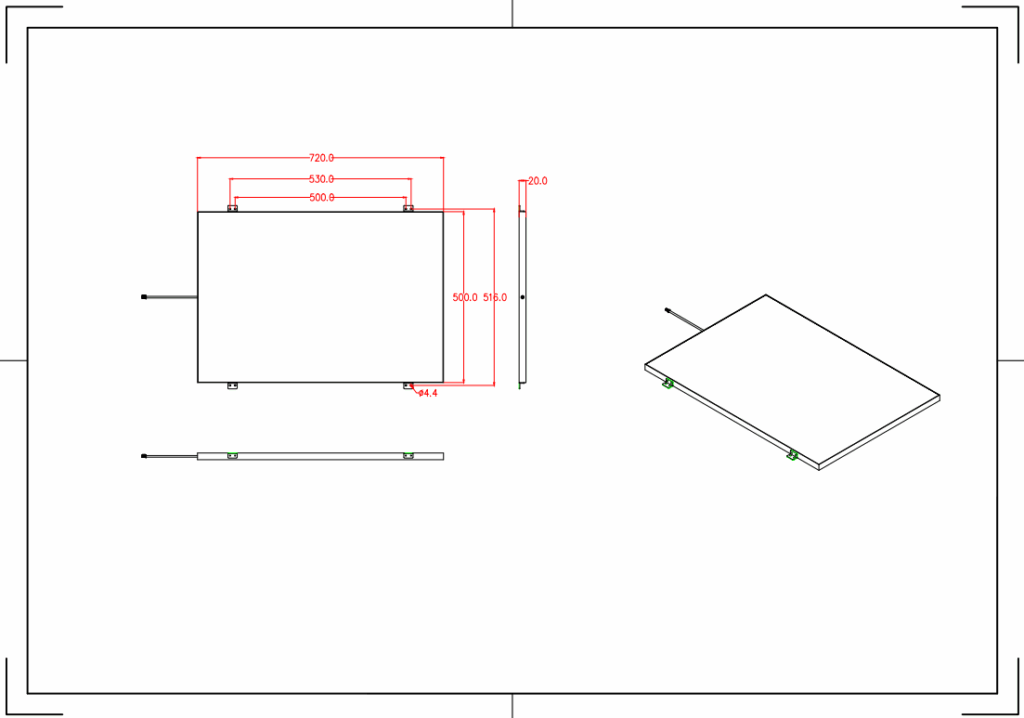

Antenna Drawing

H-Plane

E-Plane

14dBi UHF RFID Tool Cabinet Asset Management Antenna

Applications

Supply Chain Management

RFID Logistics Tracking

RFID Antenna Warehouse Management

Warehouse Management

door control

Door Control System

File cabinet management

Filing Cabinet Management

PRODUCT SUPPORT

FAQ - 14dBi UHF RFID Tool Cabinet Asset Management Antenna

A UHF RFID antenna enables communication between an RFID reader and UHF RFID tags using radio frequency signals. It transmits energy to passive tags and receives their responses, allowing the reader to identify tagged items without direct line of sight in many applications. UHF RFID antennas are commonly used in inventory management, logistics, asset tracking, and access control. Their gain, polarization, and radiation pattern influence how tags are detected within a reading area.

A high-gain RFID antenna concentrates more RF energy in certain directions, while a lower-gain antenna generally provides a broader radiation pattern, depending on its design. The Airplux 14dBi model combines high gain with a 30° horizontal and 28° vertical beamwidth, making it worth considering for focused reading areas. Higher gain does not automatically mean better performance; the antenna must match the required coverage and installation conditions.

A 14dBi RFID antenna provides high directional gain, concentrating more RF energy toward its main coverage area than a lower-gain antenna with a comparable radiation pattern. This can help support RFID reading in a defined tool cabinet or asset tracking zone. However, actual reading performance depends on cabinet design, tag placement, reader power, antenna positioning, and the materials surrounding the tagged items.

Yes, an RFID system can identify multiple tagged tools within its effective reading zone when the reader, tags, and antenna are configured appropriately. The Airplux antenna operates in the 902–928MHz UHF band and uses circular polarization. Actual multi-tag performance depends on the RFID reader’s anti-collision capability, tag spacing and orientation, cabinet materials, and the antenna’s position relative to the tools.

Choose an RFID antenna based on the cabinet’s dimensions, the number and arrangement of tools, tag locations, and the reading area that needs to be covered. A high-gain antenna with a narrow beam may suit a defined reading zone, while a wider beam may be preferable when broader coverage is required. You should also check frequency compatibility, polarization, connector type, mounting space, and the reader’s supported antenna connections before selecting a model.

The Airplux 14dBi UHF RFID antenna has a specified operating temperature range of -20°C to 60°C. Its dimensions are 720 × 500 × 20mm, and its radome is made of black organic glass. These specifications help determine whether the antenna fits the available installation space and operating conditions. Before deployment, also evaluate humidity, exposure to chemicals or impact, mounting support, and any required environmental protection rating.
