12dBi UHF RFID Smart Shelf Antenna
UHF RFID Smart Shelf Antenna
Model: APRIA80012CP
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 12dBi
Product Descriptions
The APRIA80012CP 12dBi Circular Polarization Panel Antenna is a high-performance UHF RFID antenna engineered for reliable long-range reading in the 865-868MHz band. With 12dBi gain and a 70° × 20° beamwidth, it delivers broad horizontal coverage with a controlled vertical spread, making it ideal for portal gates, warehouse aisles, and conveyor systems where consistent tag detection across varying orientations is essential. Its circular polarization minimizes read nulls caused by tag misalignment, ensuring superior performance in dynamic environments. The slim-profile (21mm) organic glass radome offers excellent durability, while SMA-Female connectivity and DC-ground lightning protection provide reliable integration. This antenna is a versatile solution for logistics tracking, warehouse management, door control, and file cabinet applications.
Descriptions
- 865-868MHz
- 12dBi
- Circular Polarization
- 1200*188*21mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- File cabinet management
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 12dBi |
Beam width | Hor：70° Ver：20° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Dimension | 1200*188*21mm |
Net weight | 3.5kg |
Packing size | 125*23*6cm |
Gross weight | 3.8kg |
Radome material | Organic Glass |
Radome colour | Black |
Operating temperature | -20-60℃ |
Antenna Pattern

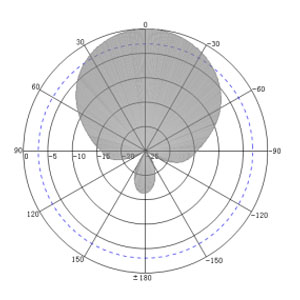

H-Plane

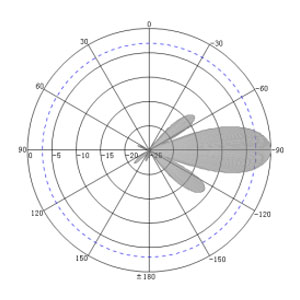

E-Plane

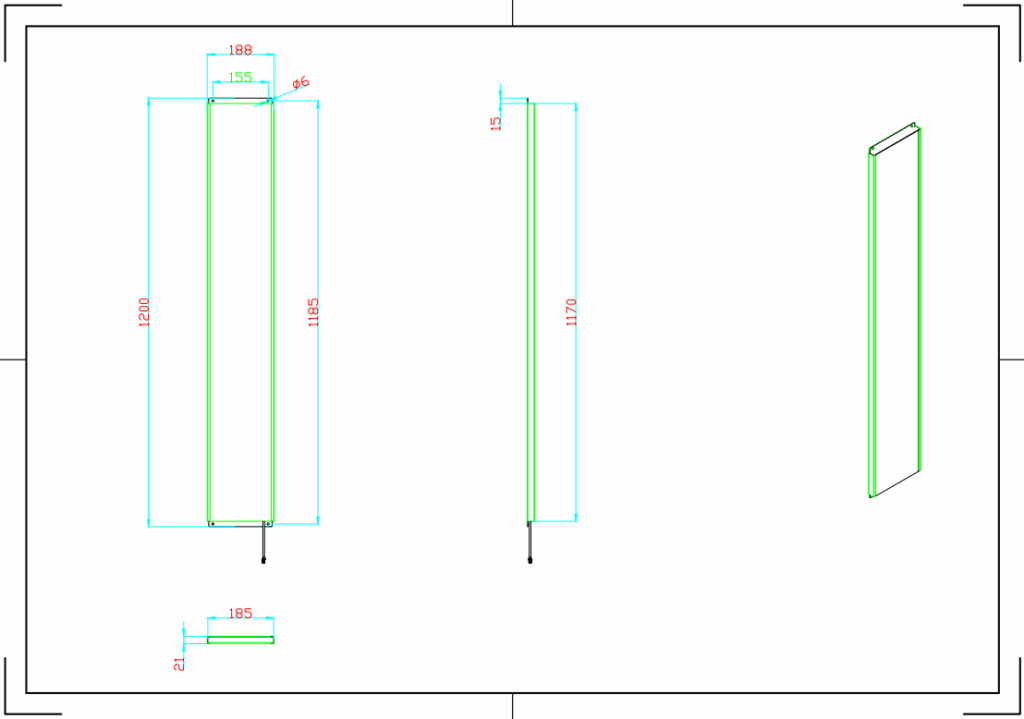

Antenna Drawing
Applications
Warehouse management
Optimizes inventory handling in distribution centers and warehouses by automating item identification and movement, improving operational efficiency.
Smart Cabinet Systems
Enables automatic item identification and tracking in smart cabinets, improving access control, inventory visibility, and asset management.
Door control system
Improves access control by automatically identifying authorized RFID tags at entrances and exits, enabling fast and reliable access management.
File cabinet management
Improves document management by automatically identifying and tracking RFID-tagged files, making storage, retrieval, and inventory checks faster and more efficient.
