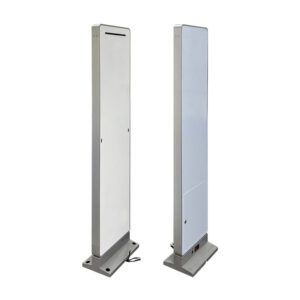

Warehouse & Asset Tracking Industrial UHF RFID Portal
Warehouse & Asset Tracking Industrial UHF RFID PortaI
Model: AP13737
Frequency Range: 865-868MHz/902-928MHz
Polarization: Circular
Gain: 9dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 9dBi
- Circular Polarization
- 1370*370*55mm
Applications
- Access gate management
- Freezer management
- Asset management
- Library management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Antenna dimensions | 1370*370*55mm |
Antenna material | Aluminum |
Radome colour | White |
Operating temperature | -20-60℃ |
Antenna Pattern

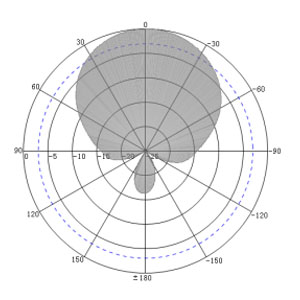

H-Plane

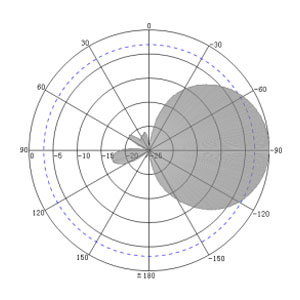

E-Plane

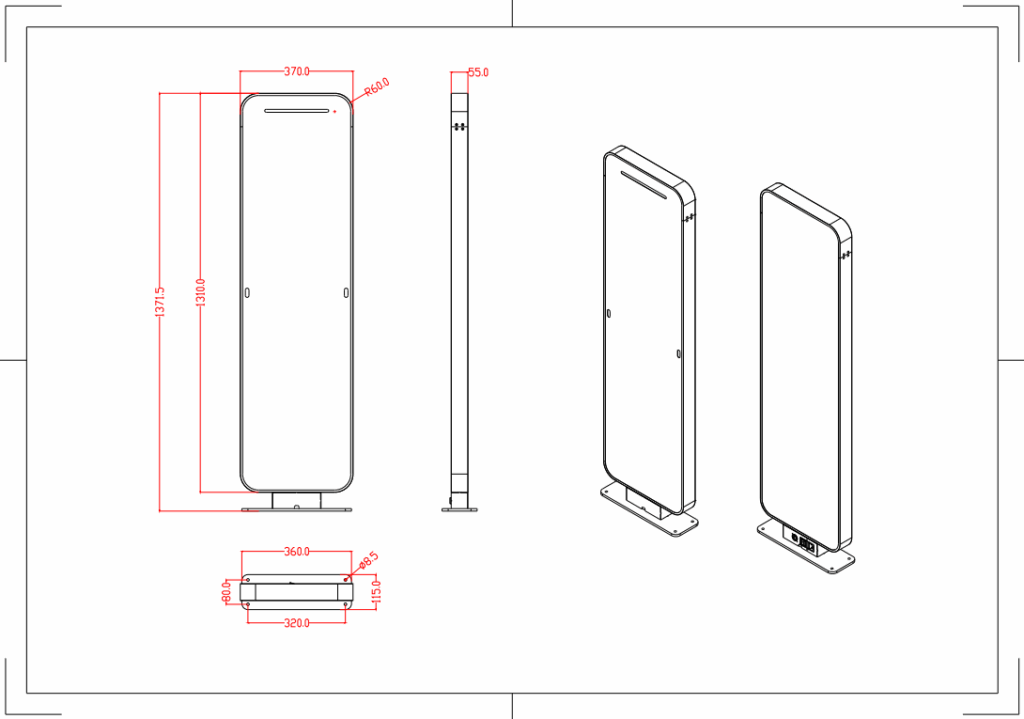

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more Warehouse & Asset Tracking Industrial UHF RFID Portal products, or here for more RFID Products.
