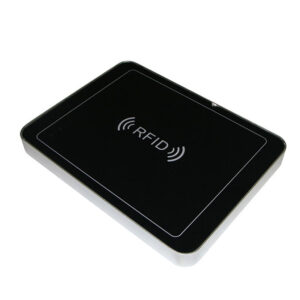

UHF RFID POS (Point-of-Sale) Antenna – 370x280x35mm
UHF RFID POS (Point-of-Sale) Antenna
Model: AP3728
Frequency Range: 865-868MHz/902-928MHz
Polarization: Circular
Gain: 9dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 9dBi
- Circular Polarization
- 370*280*35mm
Applications
- Smart retail
- Desktop management
- Asset management
- Jewelry management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥25 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 370*280*35mm |
Net weight | 1.2kg |
Gross weight | 1.3kg |
Radome colour | Black |
Operating temperature | -10-55℃ |
Antenna Pattern

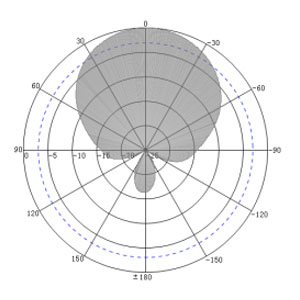

H-Plane

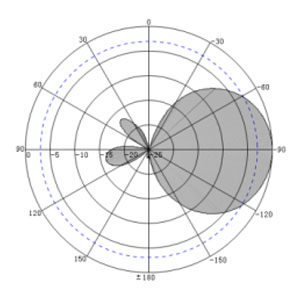

E-Plane

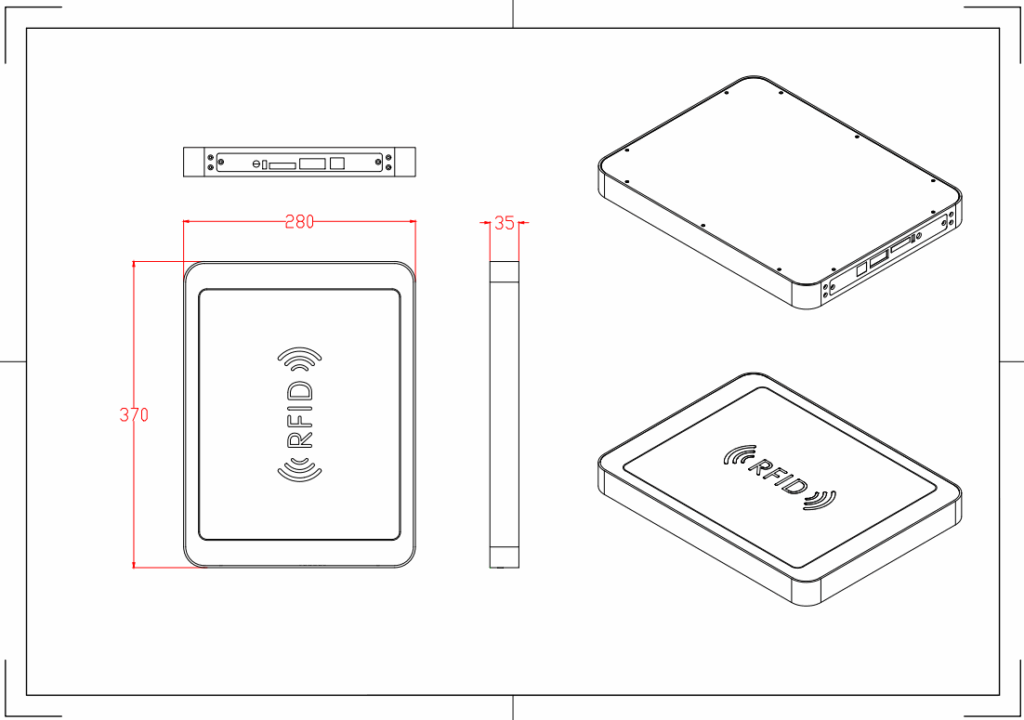

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID POS (Point-of-Sale) products, or here for more RFID Products.
