UHF RFID Mini Checkout Station Antenna – 255x200x25mm

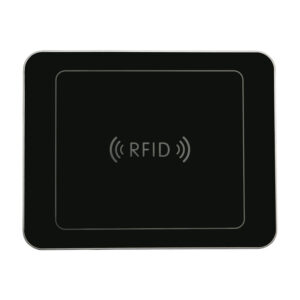

UHF RFID Mini Checkout Station Antenna
Model: AP2520
Frequency Range: 865-868MHz/902-928MHz
Polarization: Circular
Gain: 3dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 3dBi
- Circular Polarization
- 255*200*25mm
Applications
- Smart retail
- Freezer management
- Asset management
- Jewelry management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 3dBi |
Beam width | Hor：73° Ver：64° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥10 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 255*200*25mm |
Net weight | 0.98kg |
Gross weight | 1.1kg |
Radome colour | Black |
Operating temperature | -10-55℃ |
Antenna Pattern

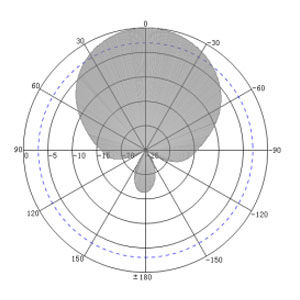

H-Plane

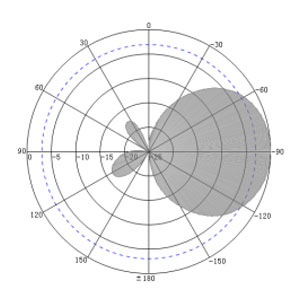

E-Plane

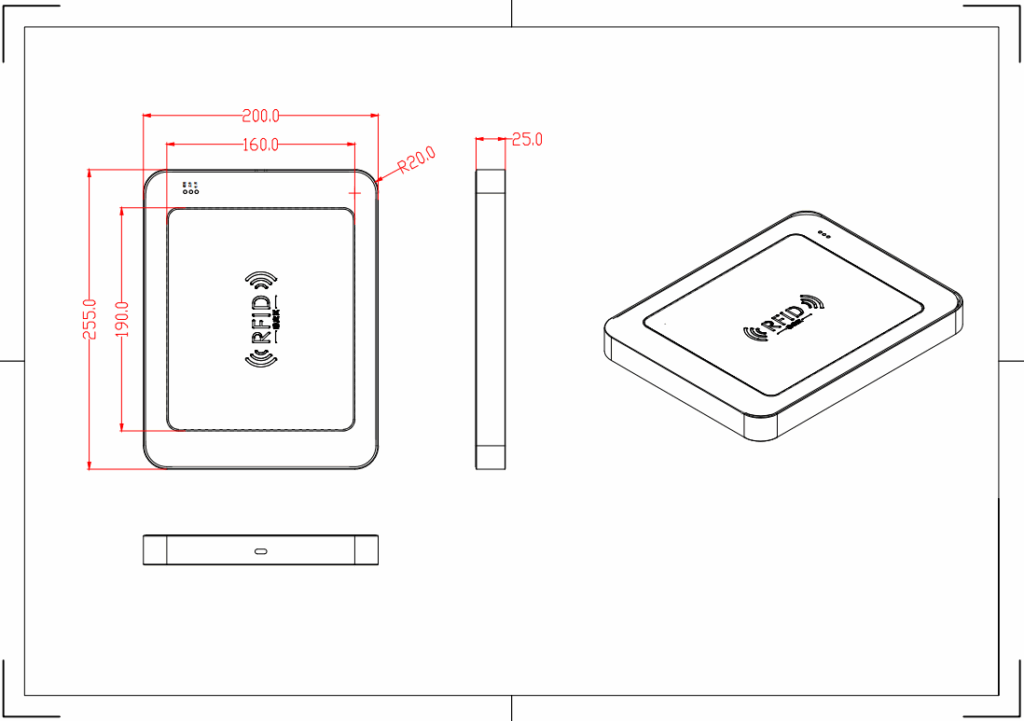

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Mini Checkout Station Antenna products, or here for more RFID Products.
