UHF RFID Large Inventory Pad Antenna – 800x600x35mm
UHF RFID Large Inventory Pad Antenna
Model: AP8060
Frequency Range: 865-868MHz/902-928MHz
Polarization: Circular
Gain: 8dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 8dBi
- Circular Polarization
- 800*600*35mm
Applications
- Smart retail
- Freezer management
- Asset management
- Jewelry management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 8dBi |
Beam width | Hor：38° Ver：37° |
Polarization | Circular |
VSWR | ≤1.8 |
F/B Ratio | ≥25 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 800*600*35mm |
Net weight | 2.2kg |
Gross weight | 2.3kg |
Radome colour | Black |
Operating temperature | -10-55℃ |
Antenna Pattern
H-Plane
E-Plane

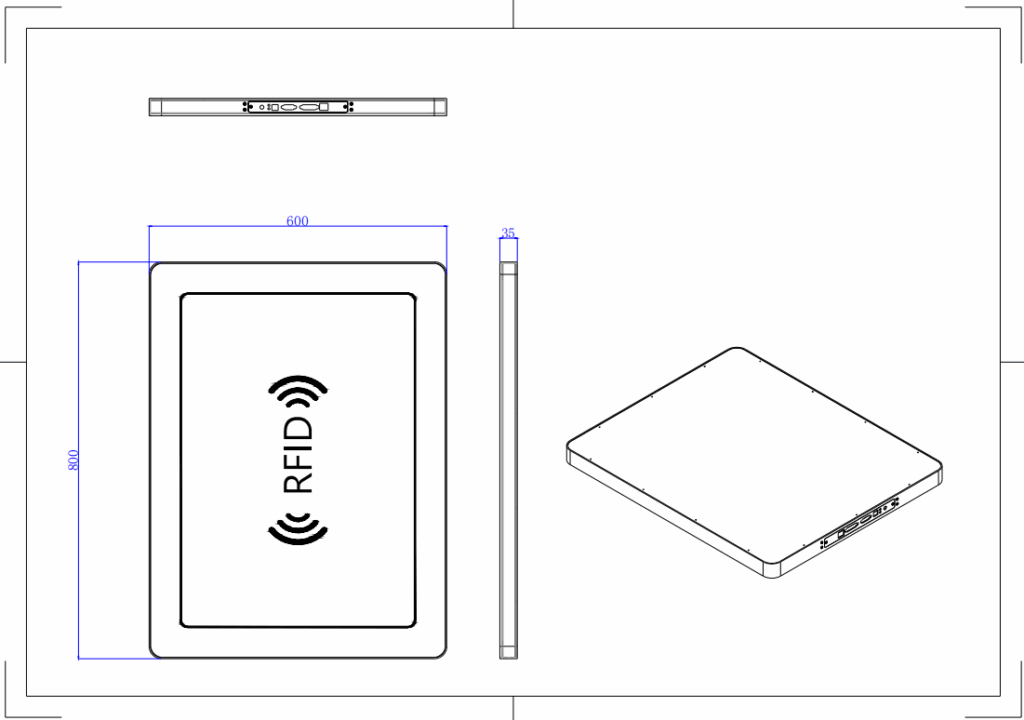

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Large Inventory Pad Antenna products, or here for more RFID Products.
