Small UHF RFID Panel Antenna – 99x99mm
Small UHF RFID Panel Antenna
Model: APRIA86960909CB
Frequency Range: 860-960MHz
Polarization: Circular
Gain: 5dBi
Descriptions & Applications
Descriptions
- 860-960MHz
- 5dBi
- Circular Polarization
- 99*99*32mm
Applications
- Vehicle management
- Book management
- Tool and consumables management
- Medical device management
Product Specifications
Electrical Specifications | |
Frequency | 860-960MHz |
Gain | 5dBi |
Beam width | Hor：160° Ver：95° |
Polarization | Circular |
VSWR | ≤1.5 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Antenna dimensions | 99*99*32mm |
Net weight | 0.2kg |
Packing size | – |
Gross weight | 0.3kg |
Antenna material | PCB |
Radome colour | White |
Operating temperature | -20-60℃ |
Installation method | Magnetic or ear – hook mounting |

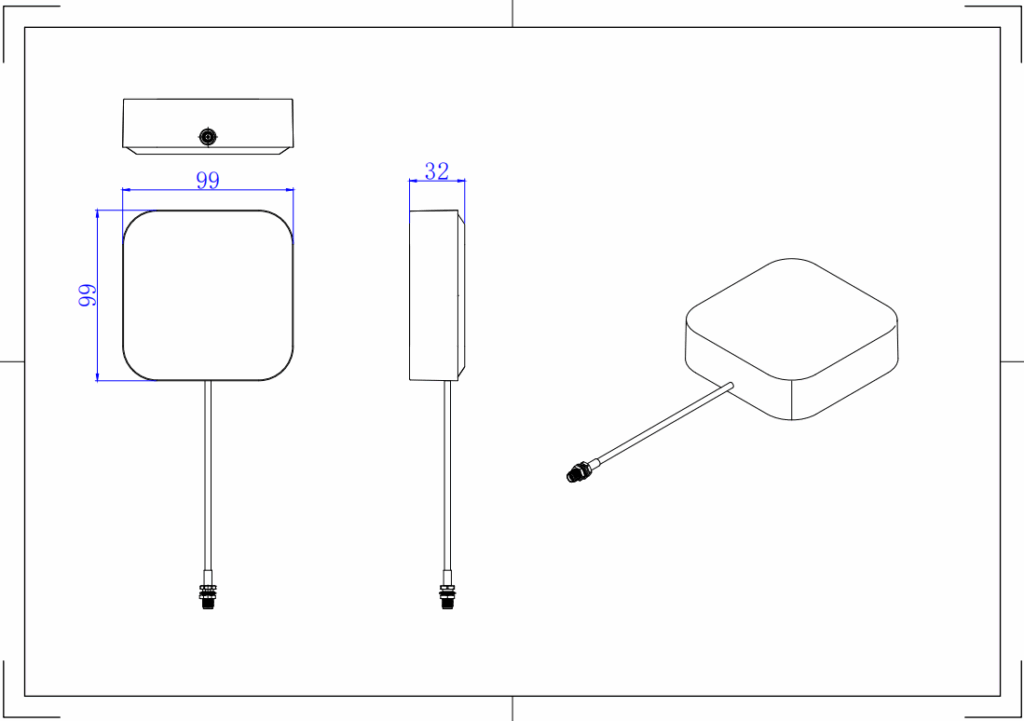

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more Small UHF RFID Panel Antenna products, or here for more RFID Products.
