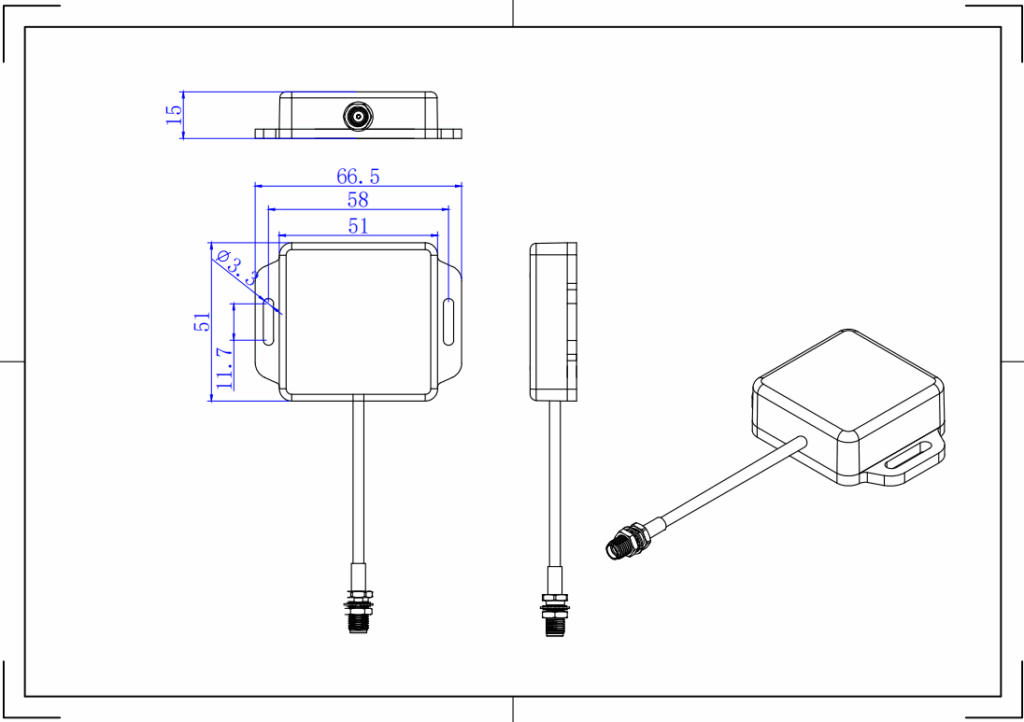

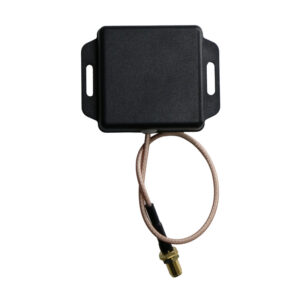

Small UHF RFID Antenna – 51x51mm

The main difference is the operating frequency range and the regional regulations associated with each band. The 865–868MHz range is commonly used for UHF RFID applications in Europe, while 902–928MHz is used in the United States and certain other markets. These frequency ranges are not universally interchangeable. The appropriate version should be selected according to the regulations of the country where the RFID system will operate.

A compact UHF RFID antenna is a small-sized antenna designed to transmit and receive radio frequency signals between an RFID reader and UHF tags. Its space-saving design makes it suitable for applications where installation space is limited, such as desktop readers, access control devices, smart shelves, and compact RFID equipment.

Despite its small size, its performance depends on factors such as operating frequency, antenna gain, polarization, and the surrounding environment.

When selecting an RFID antenna for a compact electronic device, consider its physical dimensions, operating frequency, polarization, impedance, and available installation space. The antenna must fit the device enclosure while maintaining suitable clearance from batteries, circuit boards, metal components, and other RF-sensitive parts. Its performance should be evaluated after integration because nearby components and enclosure materials can affect antenna characteristics.

Yes. A compact UHF RFID antenna can be integrated into handheld RFID equipment when its dimensions and electrical characteristics are compatible with the device design. During development, engineers should consider antenna placement, housing materials, cable routing, and the position of other electronic components. Testing the assembled device is important because the surrounding structure can influence reading performance.

A lower-gain antenna may be useful when an RFID system needs a more localized reading area, but gain alone does not determine the actual reading range or coverage. Reader output power, tag sensitivity, antenna orientation, cable loss, and the surrounding environment also affect performance. The reading area should be verified through testing in the intended installation rather than selected based on gain alone.

Antenna placement is important because nearby components can influence radio-frequency behavior. Metal parts, batteries, circuit boards, cables, and enclosure materials may affect impedance matching, radiation patterns, or reading performance. During device development, avoid assuming that an antenna will perform identically inside and outside its enclosure. Testing different mounting positions in the completed device helps identify a suitable layout.
