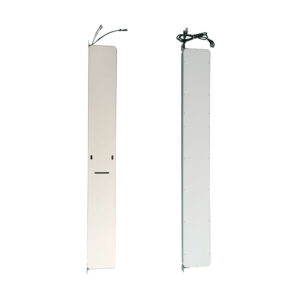

Retail Entrance Loss Prevention Wall-Mounted UHF RFID Portal
Retail Entrance Loss Prevention Wall-Mounted UHF RFID Portal
Model: AP15019
Frequency Range: 865-868MHz/902-928MHz
Polarization: Circular
Gain: 7dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 7dBi
- Circular Polarization
- 1500*190*30mm
Applications
- Access gate management
- Warehouse applications
- Door control system
- File cabinet management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 7dBi |
Beam width | Hor：70° Ver：70° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥13 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Antenna dimensions | 1500*190*30mm |
Net weight | 6kg |
Packing size | 25*25*8cm |
Antenna material | Aluminum |
Radome colour | White |
Operating temperature | -20-60℃ |

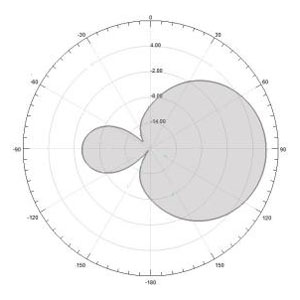

Antenna Pattern
H-Plane
E-Plane

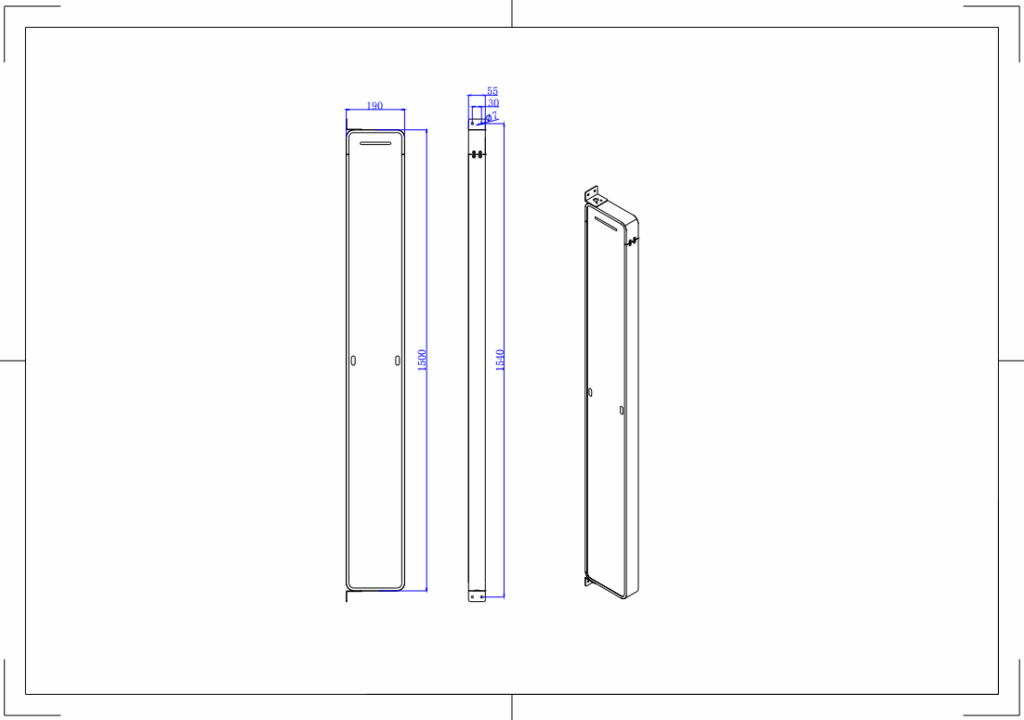

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more Retail Entrance Loss Prevention Wall-Mounted UHF RFID Portal products, or here for more RFID Products.
