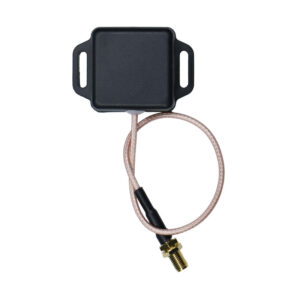

Mini RFID Tag Antenna – 36x36mm
Mini RFID Tag Antenna
Model: APRIA8000303LA/APRIA9000303LA
Frequency Range: 865-868MHz/902-928MHz
Polarization: Linear
Gain: 2dBi
Descriptions & Applications
Descriptions
- 865-868MHz/902-928MHz
- 2dBi
- Linear Polarization
- 36*36*15mm
Applications
- Vehicle management
- Book management
- Tool and consumables management
- Medical device management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz/902-928MHz |
Gain | 2dBi |
Polarization | Linear |
Axial ratio | ≤5dB |
Impedance | 50Ω |
Connector | SMA or customized |
Mechanical Specifications | |
Antenna dimensions | 36*36*15mm |
Antenna enclosure material | ABS |
Operating temperature | -20-60℃ |

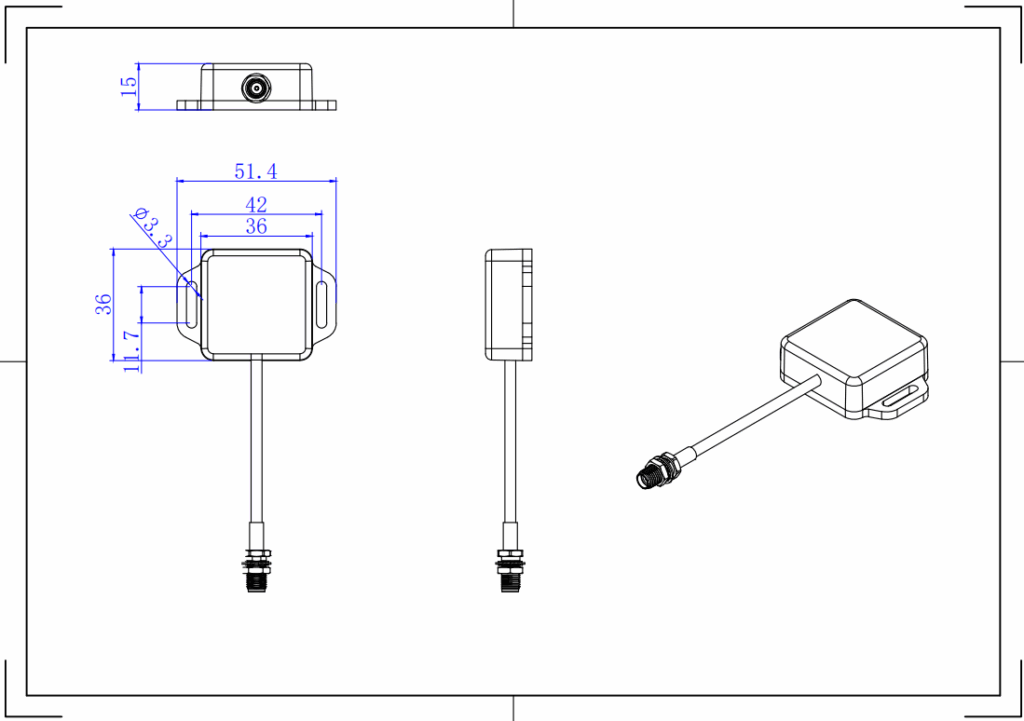

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more Mini RFID Tag Antenna products, or here for more RFID Products.
