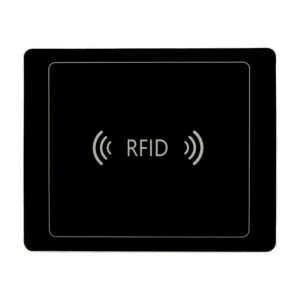

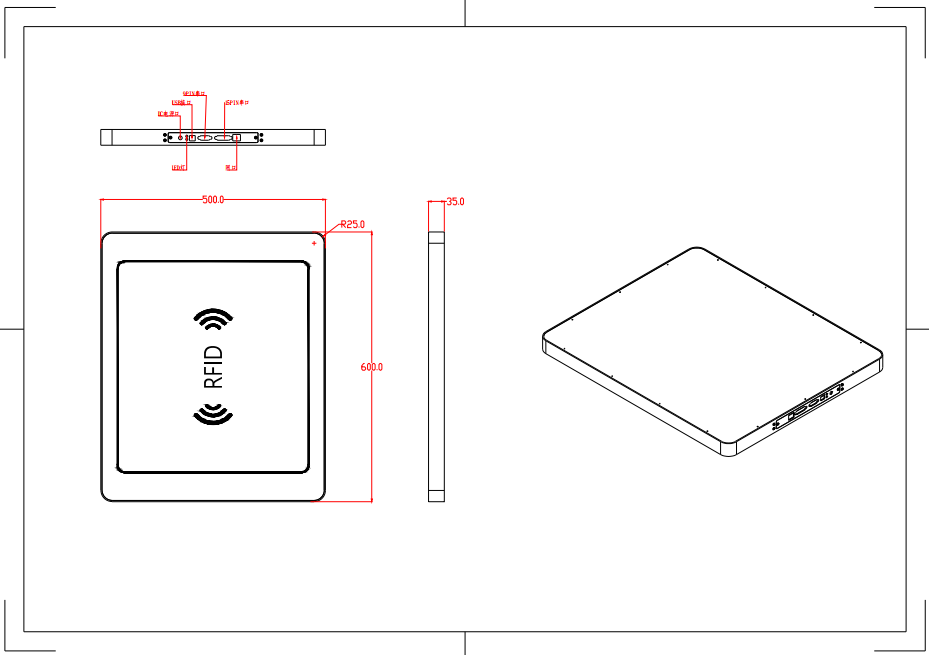

UHF RFID Wide Checkout Counter Antenna – 600x500x35mm

The main difference is the operating frequency range and the regional regulations associated with each band. The 865–868MHz range is commonly used for UHF RFID applications in Europe, while 902–928MHz is used in the United States and certain other markets. These frequency ranges are not universally interchangeable. The appropriate version should be selected according to the regulations of the country where the RFID system will operate.

An integrated UHF RFID antenna is designed as part of an RFID device or assembly to transmit and receive radio-frequency signals between an RFID reader and tagged items. When the reader sends out a signal, a passive RFID tag uses the received energy to respond with its stored identification data. The antenna helps establish the communication link and supports automatic identification in applications such as inventory management, asset tracking, and access control.

An RFID reading area can be created by integrating an antenna beneath or within a designated checkout surface, depending on the antenna’s construction and installation requirements. The setup should account for counter dimensions, product placement, tag orientation, and the position of the RFID reader. Testing with actual merchandise helps determine a suitable antenna position and reader configuration.

An RFID antenna can be used in a wide checkout area to identify tagged products placed within its effective reading zone. However, the physical size of the antenna does not automatically determine the reading area. Product arrangement, tag characteristics, antenna performance, reader settings, and surrounding materials all influence identification results.

An RFID checkout pad provides a designated reading area where products can be placed for identification. A handheld RFID reader allows staff to scan items manually at different locations. Checkout pads are useful for repeatable counter-based workflows, while handheld readers offer greater mobility for stock checks and locating individual items. The appropriate choice depends on the retail process and inventory requirements.

Unwanted RFID reads may occur when tags outside the intended checkout area are detected by the system. Retailers can address this by adjusting antenna placement, reader output power, tag positioning, and system filtering settings. The surrounding layout and nearby tagged products should also be considered. A properly tested installation helps keep identification focused on the intended checkout area.
