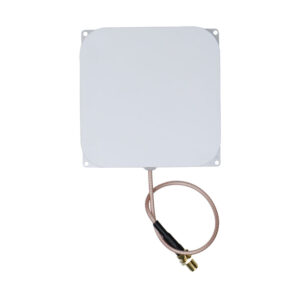

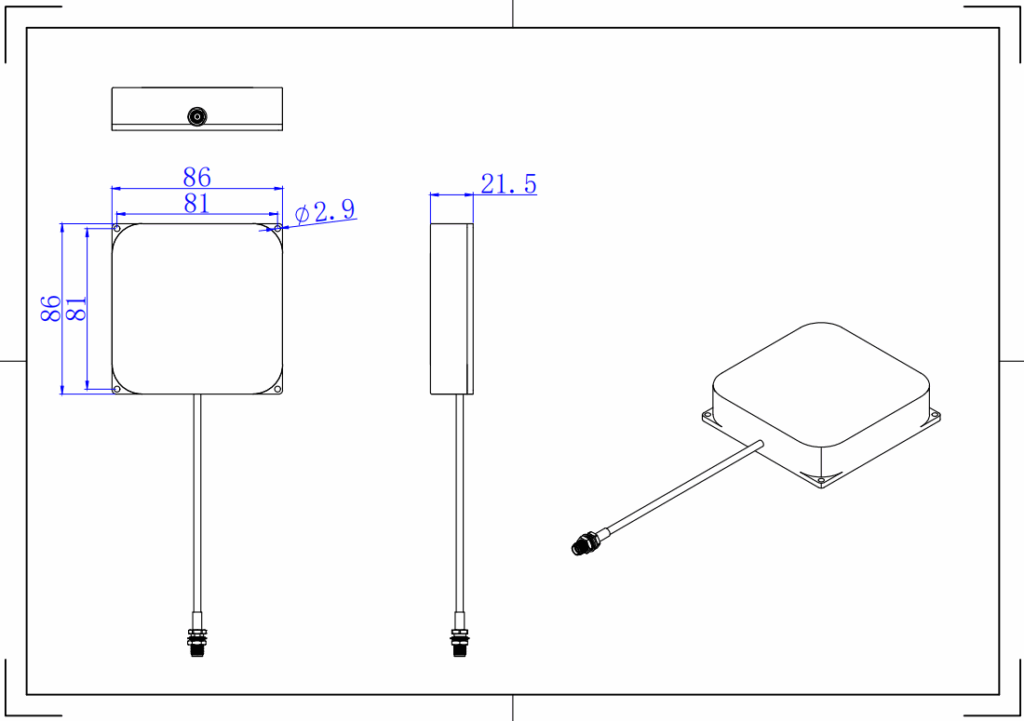

Compact UHF RFID Panel Antenna – 86x86mm

The main difference is the operating frequency range and the regional regulations associated with each band. The 865–868MHz range is commonly used for UHF RFID applications in Europe, while 902–928MHz is used in the United States and certain other markets. These frequency ranges are not universally interchangeable. The appropriate version should be selected according to the regulations of the country where the RFID system will operate.

A compact UHF RFID antenna is a small-sized antenna designed to transmit and receive radio frequency signals between an RFID reader and UHF tags. Its space-saving design makes it suitable for applications where installation space is limited, such as desktop readers, access control devices, smart shelves, and compact RFID equipment.

Despite its small size, its performance depends on factors such as operating frequency, antenna gain, polarization, and the surrounding environment.

RFID systems can identify tagged products and work-in-progress items as they move through different production stages. Antennas installed at selected checkpoints communicate with tags to record product movement and associate items with relevant production information.

This helps manufacturers improve process visibility, trace product history, and reduce manual data entry. The reading setup should account for production speed, tag placement, nearby machinery, and the materials being tracked.

Circular polarization is useful when RFID tags may be attached to products in different orientations. Compared with linear polarization, it is generally more tolerant of changes in tag orientation.

This can be helpful in warehouse and industrial environments where goods may be positioned differently during handling and movement. However, tag readability still depends on antenna placement, tag characteristics, surrounding materials, and the overall RFID system configuration.

When choosing an RFID antenna for a compact installation, consider the available mounting space, required reading area, operating frequency, polarization, and compatibility with the RFID reader.​
A compact panel antenna can help simplify integration where larger antennas are difficult to install. You should also evaluate nearby metal surfaces, tag orientation, and cable routing, then test the complete system in its final installation position.

RFID antennas help warehouses identify and track tagged goods, pallets, and containers at designated reading points. When connected to an RFID reader, they can collect tag information during receiving, storage, picking, and shipping operations.

This helps improve inventory visibility, reduce manual scanning, and provide more accurate records of item movement. Antenna placement should be planned according to the warehouse layout, tag positions, and required reading areas.
