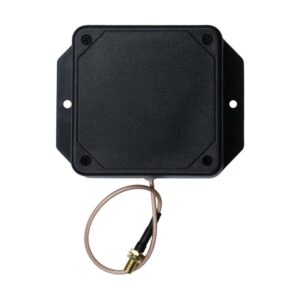

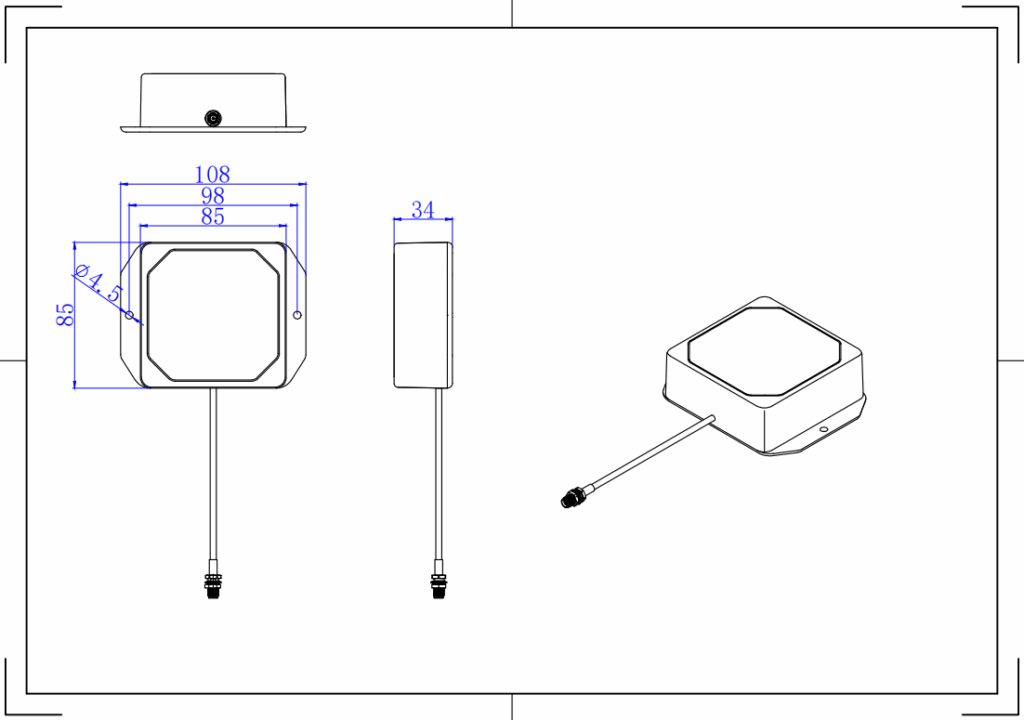

Compact UHF RFID Antenna – 85x85mm

The main difference is the operating frequency range and the regional regulations associated with each band. The 865–868MHz range is commonly used for UHF RFID applications in Europe, while 902–928MHz is used in the United States and certain other markets. These frequency ranges are not universally interchangeable. The appropriate version should be selected according to the regulations of the country where the RFID system will operate.

A compact UHF RFID antenna is a small-sized antenna designed to transmit and receive radio frequency signals between an RFID reader and UHF tags. Its space-saving design makes it suitable for applications where installation space is limited, such as desktop readers, access control devices, smart shelves, and compact RFID equipment.

Despite its small size, its performance depends on factors such as operating frequency, antenna gain, polarization, and the surrounding environment.

Setting up an RFID reading zone for small items requires careful positioning of the antenna, reader, and tagged objects. The antenna should be placed to provide a suitable reading area without unnecessary overlap with nearby zones. Tag spacing, item materials, reader output power, and antenna orientation should also be considered. Testing with actual items helps determine whether the setup can identify the required tags consistently.

Before connecting an RFID antenna to a reader, check the operating frequency, impedance, connector type, and maximum input power. Most UHF RFID systems use a 50Ω RF connection, but the connector on the antenna must also match the reader port or RF cable. If an adapter or extension cable is required, consider its compatibility and signal loss. Always follow the reader and antenna specifications when configuring the system.

RFID can provide vehicle identification data for applications such as access management, vehicle tracking, and automated checkpoint operations. A compatible RFID tag is attached to the vehicle, while antennas connected to readers detect the tag as the vehicle enters a designated reading area. The collected identification data can then be shared with a vehicle management platform. Reading reliability depends on tag placement, vehicle speed, antenna positioning, and system configuration.

An ABS enclosure provides a housing for the antenna components, but the material alone does not establish whether the antenna is waterproof or suitable for prolonged outdoor exposure. Before installing an antenna outdoors, check its IP rating, operating temperature range, UV resistance, and other environmental specifications. If these ratings are not available, the installation should be evaluated carefully under the expected operating conditions.
