Antenna Mounting Bracket
Antenna Mounting Bracket
The Airplux Antenna Mounting Bracket provides durable support for various antenna installations. Made from high-quality materials, the bracket ensures precise alignment and long-term stability in all environments. Compact, corrosion-resistant, and easy to install, the Antenna Mounting Bracket is ideal for telecom, industrial, and wireless network applications.
How to Choose the Right Antenna Mounting Bracket?
Finding the compatible hardware is crucial for ensuring the stability and RF performance of your wireless system. Our industrial-grade antenna mounting brackets are categorized by installation methods to simplify your selection:

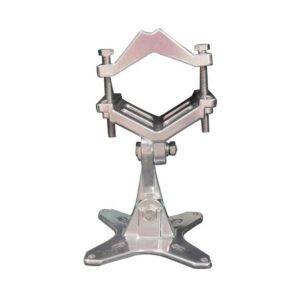

• For Pole-Mount Installations: Choose Model LYZ (heavy-duty aluminum), Model TH/TX/TL (compact pole clamps), or Model TJ for larger pole diameters (40-160mm).
• For Wall-Mount Installations: Model TGX and Model TG provide secure wall fixation for indoor and outdoor directional antennas.
• For Angle-Adjustable Requirements: If you need to tilt your antenna for optimal alignment, Model TD, TC, TW, or TWG offers a 0-30 degree adjustable elevation angle, perfect for complex RF environments.
LL
LYZ
TC
TD
TG
TGX
TH
TJ
TK
TL
TP
TT
TW
TWG
TX
| Model | Net Weight (KG) | Bracket Material | Surface Treatment | Center Mounting Hole Distance (mm) | Pole Diameter (mm) | Installation Method | Adjustable Angle (Degrees) | Load Capacity (KG) |

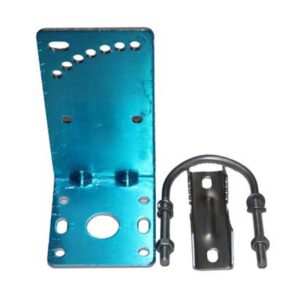

| LL | 0.17 | Aluminum | Double-Sided Blue Film Coating | 40×50 | Φ30-50 | – | – | – |
| LYZ | 0.72 | Aluminum | Natural Color Finish | 100 | Φ40-80 | – | – | – |
| TC | 0.8 | Iron | Dacromet coating | 60×60 | φ40-80 | – | 0-30 | 10 |

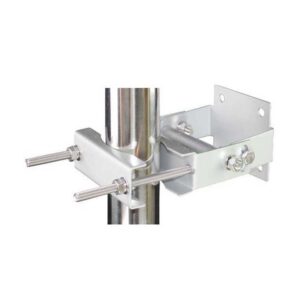

| TD | 0.7 | Iron | Dacromet coating | 60×60 | φ40-80 | – | 0-30 | 10 |

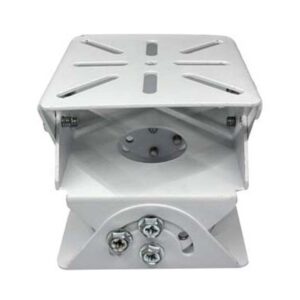

| TG | 0.7 | Aluminum Alloy | Baked Paint | 80×80 | – | Wall-Mount | – | – |

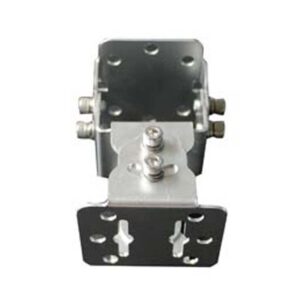

| TGX | 0.2 | Iron | Dacromet coating | 36×36 | – | Wall-Mount | – | – |

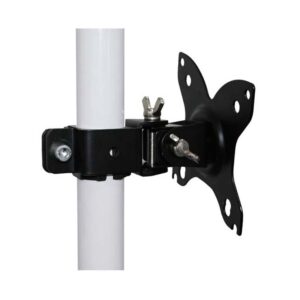

| TH | 0.46 | Iron | Spray coating | 75×75 | Φ35 | – | – | – |

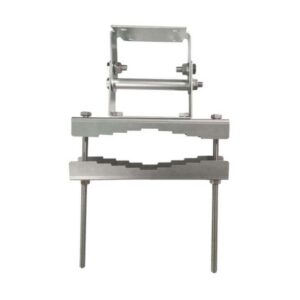

| TJ | 0.8 | Iron | Dacromet coating | 60×60 | φ40-160 | – | 0-30 | 10 |
| TK | 0.9 | Iron | Dacromet coating | 36×36 / 60×60 | – | – | – | – |

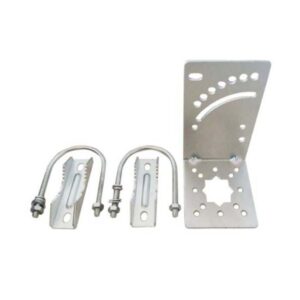

| TL | 0.42 | Iron | Dacromet coating | 36×36 | φ30-50 | – | – | – |

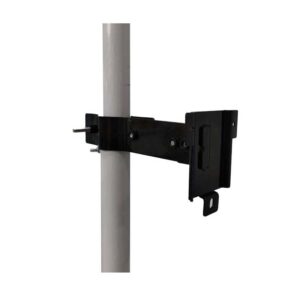

| TP | 0.34 | Iron | Spray coating | – | φ35-60 | – | – | – |

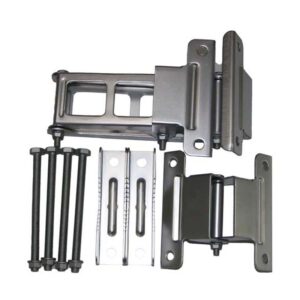

| TT | 2.2 | Iron | Dacromet coating | 110 | φ40-100 | – | – | – |

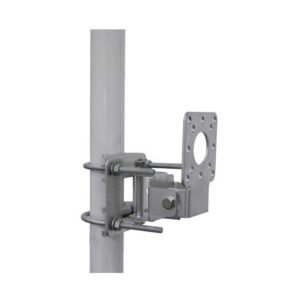

| TW | 0.3 | Iron | Dacromet coating | 36×36 / 51×51 | – | Wall-Mount | 0-30 | 10 |

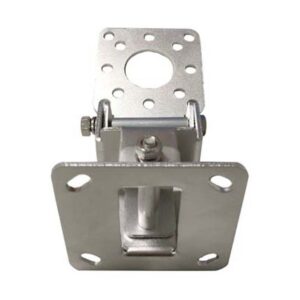

| TWG | 0.3 | Iron | Dacromet coating | 36×36 / 51×51 | Φ30-50 | – | 0-30 | 5 |

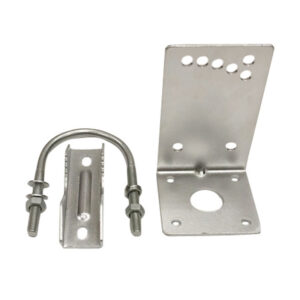

| TX | 0.19 | Iron | Dacromet coating | 36×36 | Φ30-50 | – | – | – |
Built for Harsh Environments: Outdoor Telecom & IoT Deployments
Airplux antenna mounting hardware is engineered to withstand severe weather conditions.
Corrosion Resistance: Most of our steel brackets (such as TD, TC, TW) feature advanced Dacromet coating, passing the rigorous 72-hour salt spray test to prevent rust in coastal or industrial areas.
High Load Capacity: With a rated load capacity of up to 10KG, these brackets provide durable support for high-gain RFID Antennas, 4G/5G base station antennas, and outdoor WiFi access points.
