9dBi UHF RFID Industrial Collision Avoidance Antenna

An RFID antenna transmits and receives radio frequency signals between an RFID reader and RFID tags. It enables the reader to communicate with tags and retrieve their stored identification data. In a typical RFID system, the antenna works with the reader, tags, and software to support functions such as inventory tracking, asset identification, and access control. Antenna selection affects the reading area, communication performance, and reliability of the overall RFID system.

Circularly polarized RFID antennas are useful when tag orientations vary or cannot be controlled, while linearly polarized antennas generally perform best when tag and antenna polarization are properly aligned. Circular polarization can help improve the likelihood of detecting tags at different orientations, although actual performance depends on the tag, antenna placement, and RF environment. For outdoor inventory tracking and access control, circular polarization can be a practical choice when items pass through the reading area in different positions.

A UHF RFID antenna can support industrial collision avoidance systems by detecting RFID-tagged vehicles, equipment, or assets within a configured reading zone. The APRIA86969CF operates at 860–960 MHz and features 9 dBi gain with circular polarization, making it a potential option for RFID-based detection in industrial environments. Actual detection performance depends on tag placement, reader configuration, antenna positioning, and system design.

An IP67 rating means the enclosure is dust-tight and can withstand temporary immersion in water under specified test conditions. The APRIA86969CF has an IP67 rating, an ABS radome, and an operating temperature range of -20°C to 60°C. Installation conditions and connector sealing should still be checked to ensure the complete system meets the site’s environmental requirements.

A 9 dBi panel antenna can be suitable for RFID logistics tracking, warehouse management, door control systems, and production line management. The APRIA86969CF has a 70° horizontal and 60° vertical beamwidth, providing directional coverage for a defined reading area. Antenna placement and reader configuration should be adjusted to match the application.

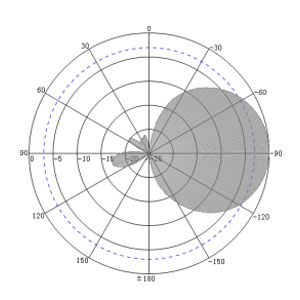

The APRIA86969CF has a beamwidth of 70° horizontally and 60° vertically. This directional pattern helps define the reading area rather than provide 360° horizontal coverage. Correct positioning can help cover the intended zone while reducing unnecessary reading outside it, although actual coverage depends on the installation environment.
