9dBi UHF RFID High Performance Integrated Reader Antenna
UHF RFID High Performance Integrated Reader Antenna
Model: APRIA9009CG
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 9dBi
Descriptions & Applications
Descriptions
- 902-928MHz
- 9dBi
- Circular Polarization
- 260*260*63mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Mechanical Specifications | |
Frequency | 902-928MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 260*260*63mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Radome material | Aluminum |
Radome colour | White |
Gross weight | 1.2kg |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

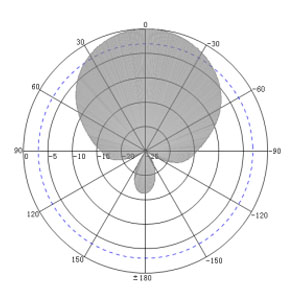

H-Plane
E-Plane

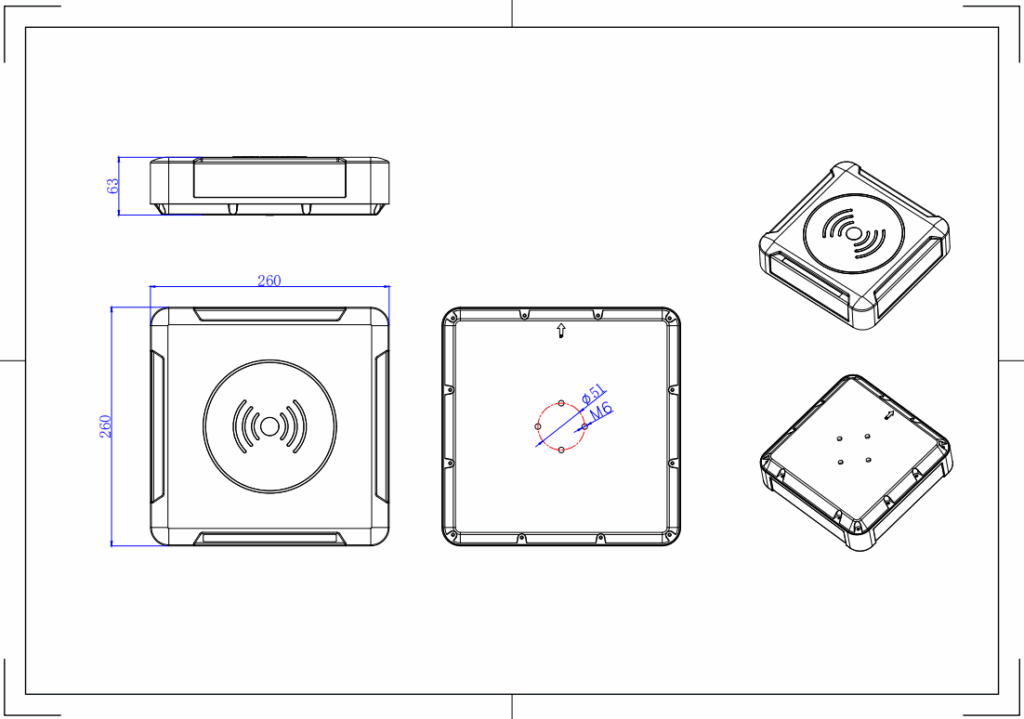

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID High Performance Integrated Reader Antenna products.
