9dBi High Performance UHF RFID Reader Antenna
UHF RFID Patch Antenna
Model: APRIA9009CA
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 9dBi
Product Descriptions
The APRIA9009CA UHF Circular RFID Reader Antenna is a high performance, high quality circularly polarized antenna, with 9dBi gain and very low VSWR. Antenna working frequency range is ETSI 865-868MHz , also available for FCC 902-928MHz version. Standard with N-Female connector, available of any type of customized antenna connector & cable length based on the actual usage requirements and applications.
This UHF RFID Antenna will be good for the applications of RFID logistics tracking, Warehouse management, Door control system, Man management system and so on.
Descriptions
- 902-928MHz
- 9dBi
- Circular Polarization
- 260*260*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking management
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 902-928MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Antenna dimensions | 260*260*30mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Gross weight | 1.68kg |
Radome material | Aluminum |
Radome colour | White |
Pole diameter | φ30-50mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |
IP Rating | IP67 |
Antenna Pattern

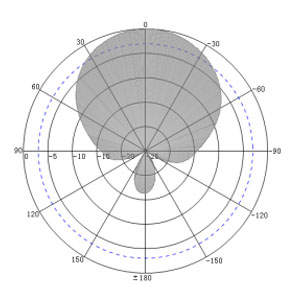

H-Plane
E-Plane

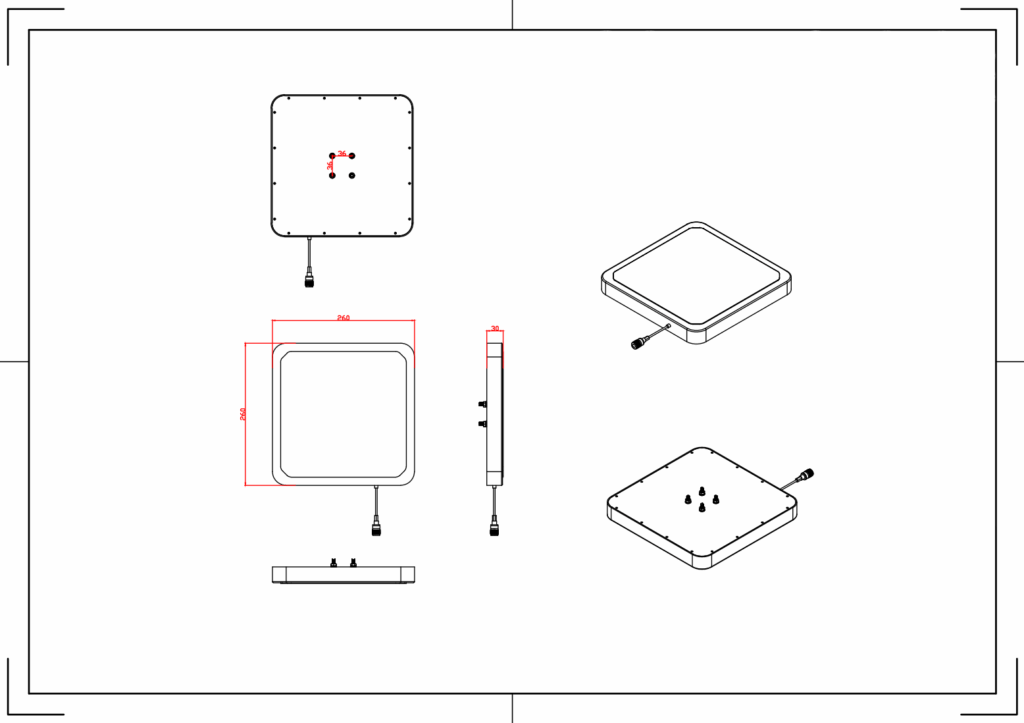

Antenna Drawing

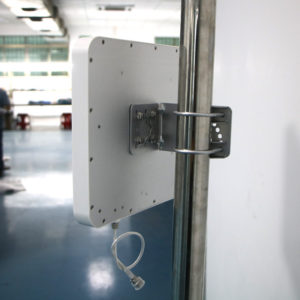

Installation Photos
RFID Antenna Applications
File Management
Libray Management
Retail store management
Door control system
Warehouse Management
Parking management
