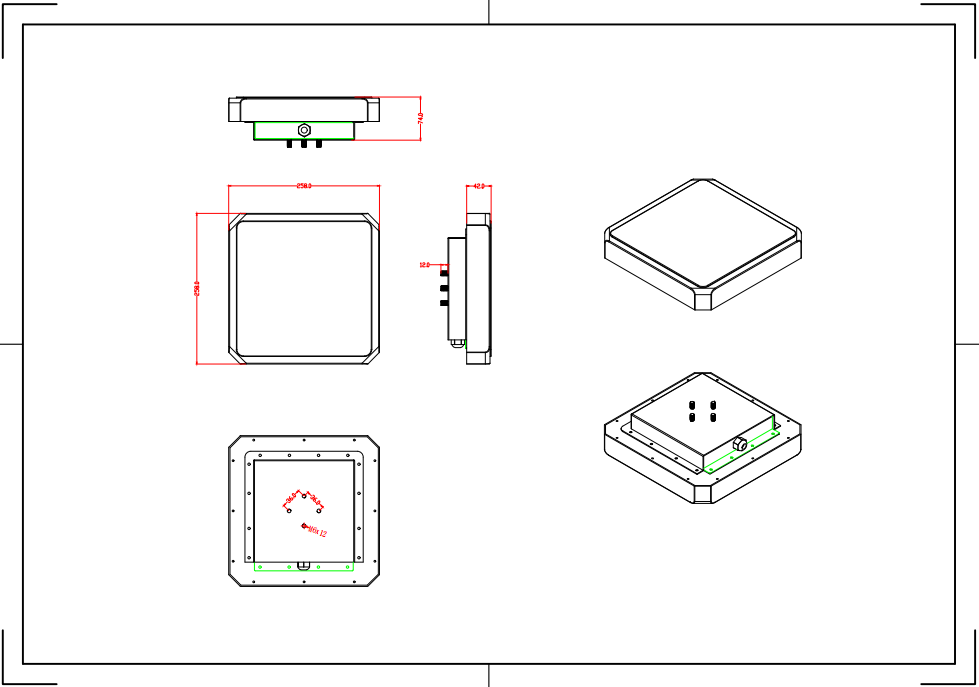

9dBi Circular RFID Antenna with Enclosure

An integrated RFID reader antenna is a device that combines an RFID reader and an antenna into a single unit. Unlike a traditional RFID setup that uses a separate reader and external antenna, this design reduces the number of individual components and simplifies system installation. It can be used in applications such as access control, inventory management, asset tracking, and automated identification. The exact functions depend on the reader’s communication interfaces, supported protocols, and system configuration.

An integrated UHF RFID reader antenna sends radio-frequency signals to detect nearby RFID tags. When a compatible passive UHF tag receives the signal, it uses the energy from the reader’s transmission to respond with its stored identification data. The integrated reader processes this response and makes the collected information available to the connected system. Reading performance depends on factors such as antenna characteristics, tag design, reader settings, and the surrounding environment.

An aluminum enclosure provides a rigid housing that helps protect the internal antenna structure during installation and daily operation. It can also offer better mechanical durability than some lightweight plastic housings. However, metal affects radio-frequency behavior, so the antenna’s internal design and enclosure structure must be properly engineered to maintain its intended RF performance.

An IP65-rated RFID antenna is designed to provide protection against dust and water jets from different directions. This makes it suitable for many outdoor installations exposed to rain and dust, such as warehouse entrances, loading areas, and access control points. IP65 does not mean the antenna can be submerged in water, so installation should still avoid prolonged flooding or immersion.

When selecting an RFID reader for an external antenna, check that the reader and antenna operate in the same frequency band. Their RF impedance, connector type, cable connection, and power limits must also be compatible. For example, a 50-ohm antenna should be connected through a suitable 50-ohm RF path. Always check the reader’s regional frequency settings and applicable RFID regulations before deployment.

Before pole installation, confirm that the pole diameter matches the antenna’s mounting range and that the brackets are securely fastened. Consider the antenna’s orientation, cable routing, grounding requirements, and exposure to wind and weather. The pole and mounting structure should be strong enough to support the complete installation under expected environmental conditions.
