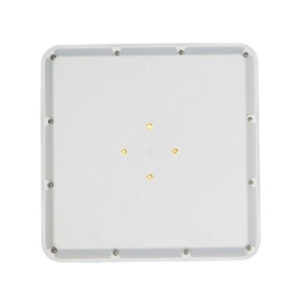

8dBi UHF RFID Vehicle Tracking Integrated Reader Antenna
Product Descriptions
The APRIA9008CG is an 8dBi circularly polarized UHF integrated RFID reader antenna designed for the 902–928 MHz band. Its 220×220×58mm white ABS radome offers a beamwidth of 80° horizontal / 60° vertical, VSWR ≤1.4, and a front-to-back ratio ≥20. Featuring IP65 protection, 100W power handling, and DC grounding lightning protection, it is ideal for RFID logistics tracking, warehouse management, door control systems, and parking lot management.
Descriptions
- 902-928MHz
- 8dBi
- Circular Polarization
- 220*220*58mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Model: APRIA9008CG
Electrical Specifications
Frequency | 902-928MHz |
Gain | 8dBi |
Beam width | Hor：80° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications
Dimension | 220*220*58mm |
Net weight | 0.65kg |
Packing size | 29*29*8cm |
Radome material | ABS |
Radome color | White |
Gross weight | 0.8kg |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

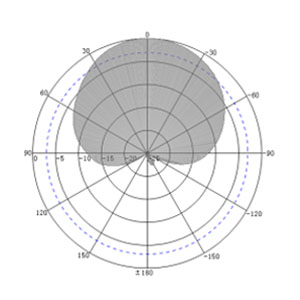

H-Plane
E-Plane

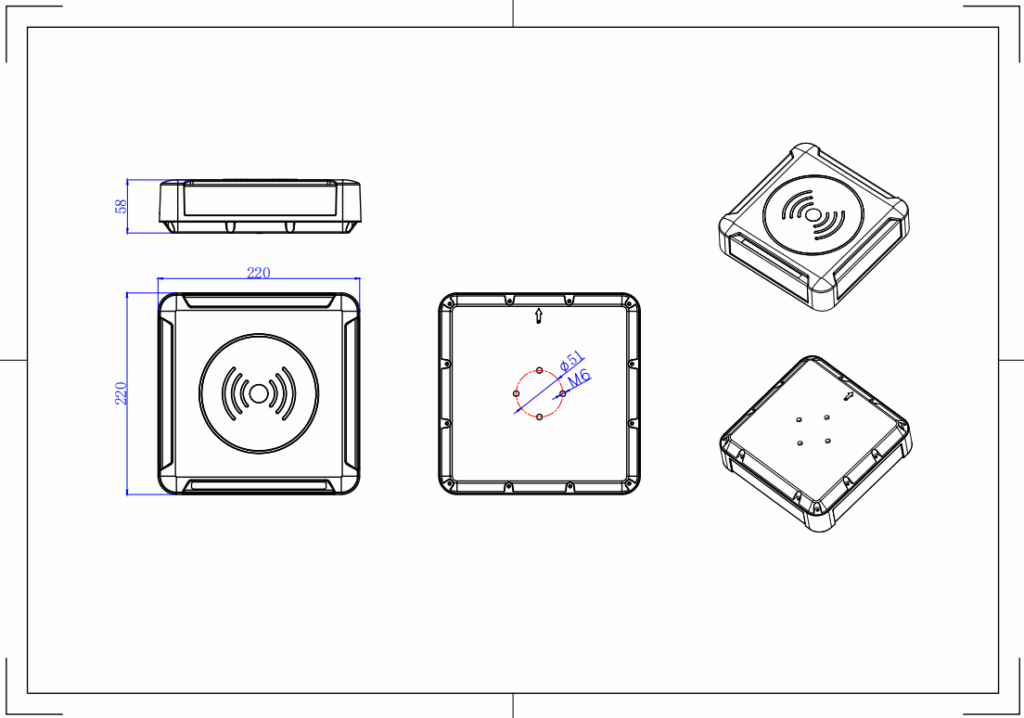

Antenna Drawing
Applications
RFID Logistics Tracking
Warehouse Management
Door Control System
Parking Management
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Vehicle Tracking Integrated Reader Antenna products.
