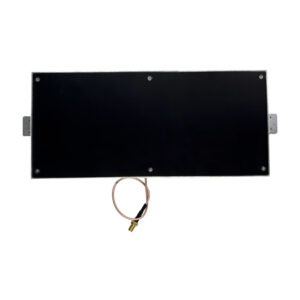

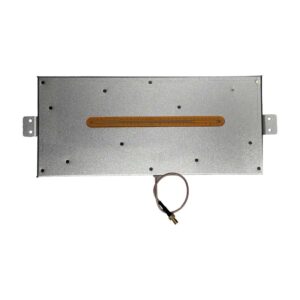

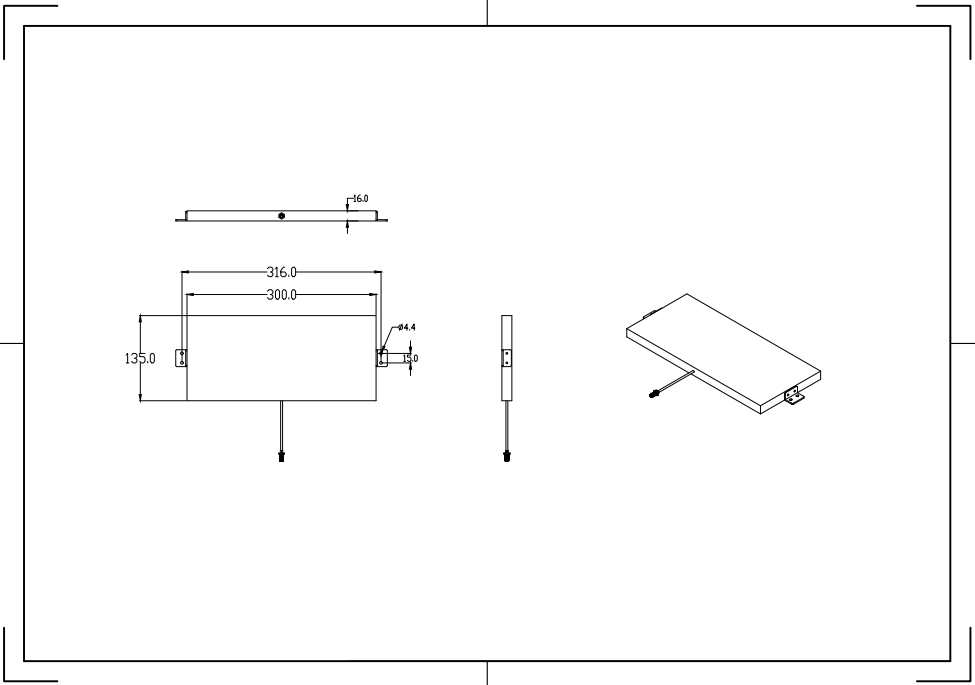

8dBi UHF RFID Narrow Beam Smart Shelf Antenna – 300x135x16mm

A UHF RFID narrow beam antenna is designed to concentrate radio frequency energy within a relatively focused area. In RFID systems, it helps direct the reading zone toward specific locations, such as conveyor lanes, access points, or designated tracking areas. This makes it useful for applications where controlled coverage and reduced reads from surrounding areas are important.

A narrow beam RFID antenna provides more focused coverage than a wider-beam antenna, helping limit the reading zone to a specific area. This can reduce unwanted reads from nearby tags and improve control over where RFID identification takes place. It is particularly useful in applications that require precise zone coverage, such as item tracking on production lines, targeted inventory checks, and controlled passage monitoring.

Choose the frequency band according to the RFID system requirements and the regulations in the country where the system will operate. This antenna series supports 865–868 MHz and 902–928 MHz versions. Confirm the required band and ensure that the RFID reader and tags operate on compatible frequencies before purchasing.

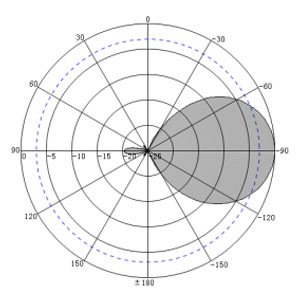

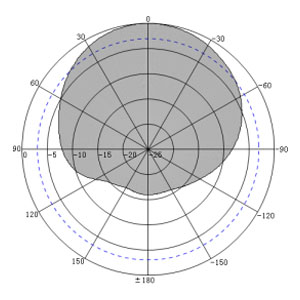

A 100° horizontal beamwidth provides a wider horizontal coverage angle than a 50° vertical beamwidth. This can help when planning a reading zone that needs broader horizontal coverage with more limited vertical coverage. Actual coverage depends on mounting position, distance, surrounding objects, and the installation environment.

Yes. Vehicle management is one of the listed applications for this antenna. In a compatible RFID system, it can be installed near a designated vehicle access point or passage to read tagged vehicles as they enter or leave. The antenna position, tag location, reader settings, and passage layout should be tested to achieve the required identification performance.

This antenna is specified for indoor use and has an operating temperature range of -20°C to 60°C. It should not be assumed suitable for direct outdoor exposure. For outdoor vehicle management or access control, select an antenna with suitable environmental protection or confirm the required protection with the manufacturer.
