7dBi UHF RFID Reader Antenna

An 865–868 MHz antenna is designed for UHF RFID and low-power wireless applications operating in the European ETSI SRD band. Typical uses include UHF RFID readers (EPC Gen2 / ISO 18000-6C), asset tracking, warehouse management, access control, smart retail, race timing, and IoT/M2M systems deployed in Europe and other regions following ETSI regulations.
Airplux offers this band across multiple product families: the ETSI 865–868 MHz RFID antenna line (3–15 dBi PCB, panel and mat antennas), near-field RFID antennas, narrow-beam antennas, and ETSI UHF integrated reader antennas. For example, the 3 dBi circular-polarized PCB antenna APRIA8003CM-137 suits compact desktop readers, while high-gain panel models support long-range portal and gate applications.

Read range depends on reader power (up to 2 W ERP in Europe), antenna gain, tag sensitivity and environment. With a typical ETSI-compliant setup: 3 dBi antennas read roughly 1–3 m, 8 dBi antennas 4–8 m, and 12–15 dBi panel antennas can exceed 10 m in open space. Indoor metal racking, liquids and dense tag populations reduce these figures.
Airplux’s high-gain ETSI models — the 8 dBi APRIA8008CM-206 PCB antenna, the 9 dBi underground/ground-mat antenna APRIA8009CE, and the 12 dBi APRIA80012CT floor mat — are engineered for long read range with stable circular polarization. For precise figures in your application, share your reader model, tag type and mounting environment with our engineering team for a link-budget recommendation.

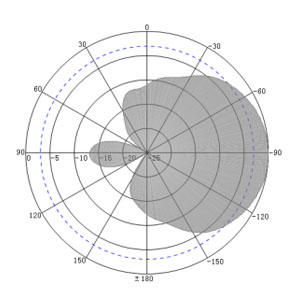

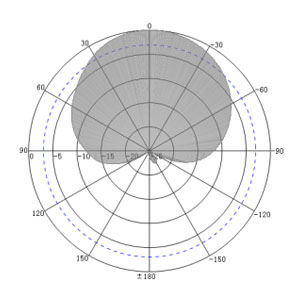

A 7dBi gain indicates how the antenna concentrates RF energy in its radiation pattern compared with a reference antenna. It can help support RFID reading in a defined area, but higher gain does not automatically guarantee a longer reading distance. The APRIA8007CA combines 7dBi gain with an 80° horizontal and 70° vertical beamwidth. The appropriate installation depends on the required reading area and tag positions.

Circular polarization can reduce the sensitivity of RFID reading to tag orientation compared with linear polarization. This is useful in warehouse environments where tagged goods may be stored or moved in different positions. The APRIA8007CA uses circular polarization to support more flexible tag orientation during inventory and logistics tracking. Actual reading reliability still depends on tag placement, antenna positioning, reader settings, and nearby materials.

Yes. The APRIA8007CA can be considered for warehouse door control systems that use UHF RFID to identify tagged goods, equipment, or authorized assets passing through a designated area. Its 80° horizontal and 70° vertical beamwidth helps characterize the coverage pattern when planning the installation. Antenna position and reader settings should be tested to define the intended reading zone and reduce missed or unintended reads.

Yes. A UHF RFID antenna can be part of a personnel identification system when people carry suitable RFID tags or badges. The APRIA8007CA’s circular polarization can help accommodate variations in tag orientation as people move through a designated reading area. System performance depends on the tag type, tag placement, reader configuration, antenna position, and the required identification process.
