7dBi UHF RFID High-Density Document Management Antenna

An 865–868 MHz antenna is designed for UHF RFID and low-power wireless applications operating in the European ETSI SRD band. Typical uses include UHF RFID readers (EPC Gen2 / ISO 18000-6C), asset tracking, warehouse management, access control, smart retail, race timing, and IoT/M2M systems deployed in Europe and other regions following ETSI regulations.
Airplux offers this band across multiple product families: the ETSI 865–868 MHz RFID antenna line (3–15 dBi PCB, panel and mat antennas), near-field RFID antennas, narrow-beam antennas, and ETSI UHF integrated reader antennas. For example, the 3 dBi circular-polarized PCB antenna APRIA8003CM-137 suits compact desktop readers, while high-gain panel models support long-range portal and gate applications.

ETSI 865–868 MHz antennas are tuned for the European UHF RFID band (ETSI EN 302 208), while FCC 902–928 MHz antennas cover the North American band (FCC Part 15). The two bands do not overlap, so an antenna optimized for one will have degraded VSWR, gain and read range on the other. Choose the version that matches your reader’s regional profile.
Airplux manufactures both variants with matching mechanical designs — e.g., the ETSI 865–868 MHz panel series and the FCC 902–928 MHz series are available at the same gain levels (3–15 dBi). For global or multi-region deployments that need one SKU for both markets, the wideband UHF 860–960 MHz antenna line covers both bands in a single antenna, ideal for asset tracking and smart retail projects shipped worldwide.

It is not recommended. A 915 MHz antenna is resonant around 902–928 MHz; at 865–868 MHz its impedance match detunes, VSWR rises, and radiated efficiency drops — typically reducing RFID read range by 20–40% or more, and in some regions pushing the system out of regulatory compliance. Always match the antenna to the device’s operating band.
If your hardware must serve both Europe (865–868 MHz) and North America (902–928 MHz), use a genuinely wideband model instead of compromising with a single-band antenna. Airplux’s UHF 860–960 MHz RFID antenna series maintains consistent gain and low VSWR across the entire 860–960 MHz range, so one antenna design can be certified and deployed in both regions.

RFID helps organizations identify and track large numbers of tagged documents without relying entirely on manual searches or barcode-by-barcode scanning. In a high-density document management system, RFID antennas communicate with tags attached to files, folders, or storage containers, allowing a reader to identify multiple items within its effective reading zone. The Airplux APRIA8005142CX is a 7 dBi circularly polarized UHF RFID PCB antenna designed for 865–868 MHz applications.

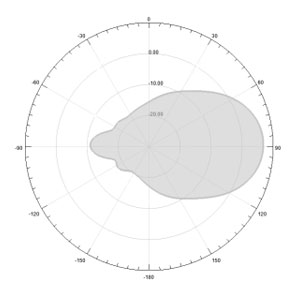

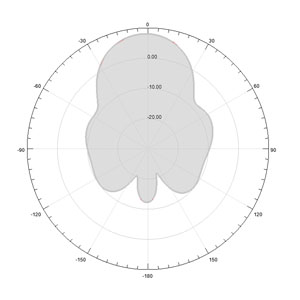

Beamwidth describes the angular spread of an antenna’s main radiation pattern, generally measured between its half-power points. The APRIA8005142CX has a horizontal beamwidth of 38° and a vertical beamwidth of 37°, indicating a relatively focused and symmetrical coverage pattern. This specification can help when planning a defined RFID reading zone for document storage, desktop management, or jewelry displays. Actual coverage will also depend on antenna placement and the surrounding environment.

Choose an RFID antenna according to the storage layout, number of tagged documents, tag positions, and the area that needs to be identified. A focused antenna pattern may help direct RF energy toward a designated storage zone, while antenna dimensions and mounting space determine whether it can be integrated into the cabinet or shelving structure. Before selecting a model, also check frequency compatibility, polarization, connector type, and reader configuration. On-site testing can help identify coverage gaps and unwanted reads.
