6dBi UHF RFID Compact Integrated Reader Antenna
UHF RFID Compact Integrated Reader Antenna
Model: APRIA9006CS
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 6dBi
Descriptions & Applications
Descriptions
- 902-928MHz
- 6dBi
- Circular Polarization
- 130*130*49.5mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Electrical Specifications | |
Frequency | 902-928MHz |
Gain | 6dBi |
Beam width | Hor：105° Ver：95° |
Polarization | Circular |
VSWR | ≤1.3 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 130*130*49.5mm |
Net weight | 0.4kg |
Packing size | 27.5*21*9cm |
Gross weight | 0.8kg |
Radome material | ABS |
Radome colour | White |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

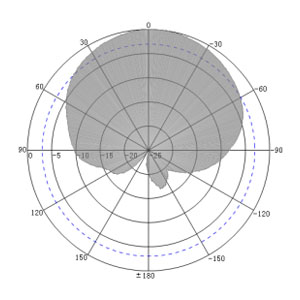

H-Plane

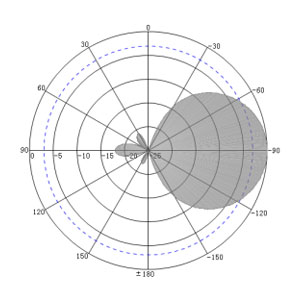

E-Plane

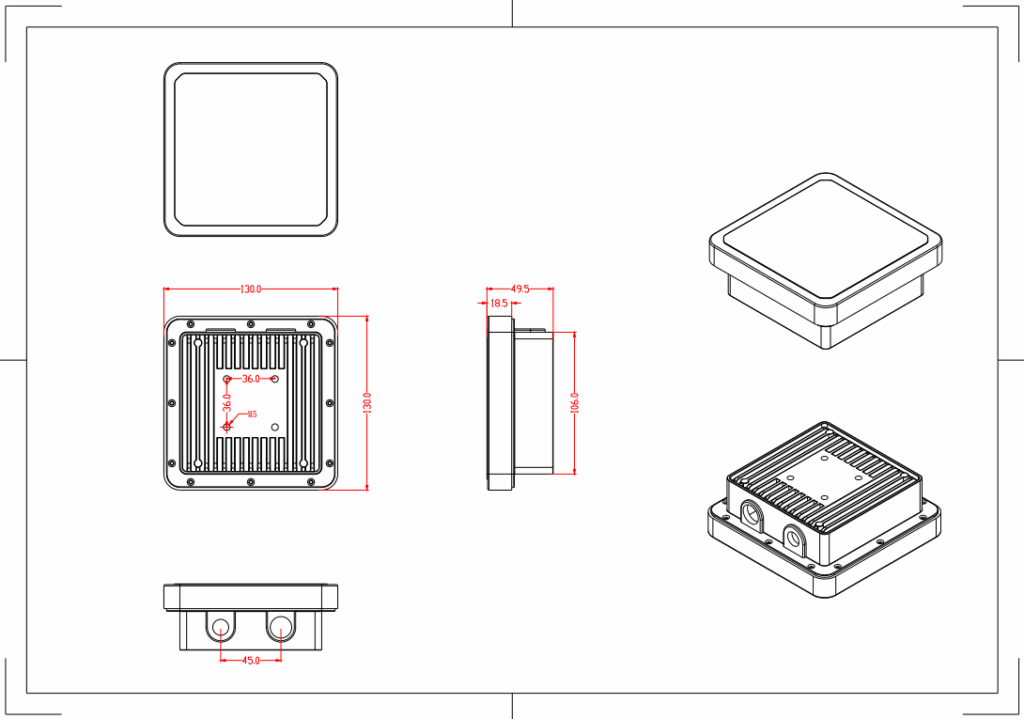

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Compact Integrated Reader Antenna products.
