6dBi UHF PCB RFID Antenna - 210x170mn

UHF PCB RFID Antenna

Model: APRIA9006CX

Frequency Range: 902-928MHz

Polarization: Circular

Gain: 6dBi

Product Descriptions

The APRIA9006CX is a 6dBi circularly polarized PCB antenna designed for reliable UHF RFID performance in the 902–928 MHz range. Its 210×170×1.5mm green PCB structure and beamwidth of 75° horizontal / 100° vertical provide strong directional coverage. Featuring VSWR ≤2.0, a front-to-back ratio ≥20, and 100W power handling, it is ideal for logistics tracking, warehouse management, door control systems, and production line management.

Descriptions

  • 902-928MHz
  • 6dBi
  • Circular Polarization
  • 210*170*1.5mm

Applications

  • RFID logistics tracking
  • Warehouse management
  • Door control system
  • Production line management

Product Specifications

Electrical Specifications

Frequency

902-928MHz

Gain

6dBi

Beam width

Hor:75°  Ver:100°

Polarization

Circular

VSWR

≤2.0

F/B Ratio

≥20

Impedance

50Ω

Maximum power

100W

Connector

SMA-Female



Mechanical Specifications

Antenna dimensions

210*170*1.5mm

Net weight

0.3kg

Packing size

28*18*1cm

Gross weight

0.5kg

Antenna material

PCB

Antenna color

Green

Operating temperature

-20-60℃



Antenna Pattern

3dBi UHF PCB RFID Antenna – 210x170mm - Antenna Pattern H
3dBi UHF PCB RFID Antenna – 210x170mm - Antenna Pattern V

H-Plane

E-Plane

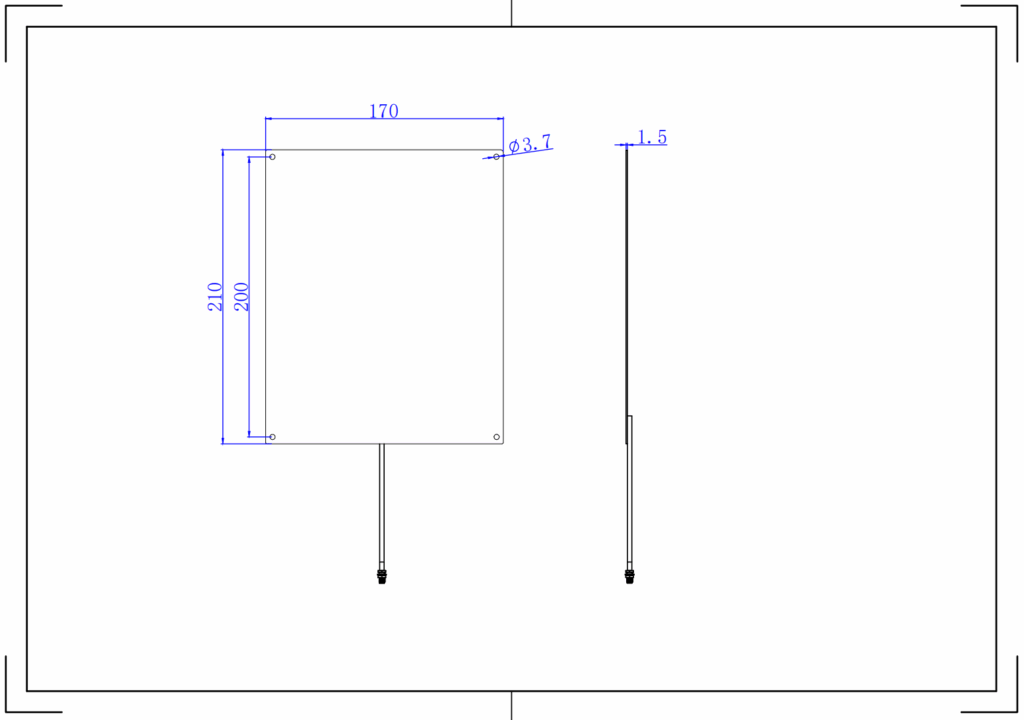

Antenna Drawing

6dBi UHF PCB RFID Antenna - 210x170mm

Applications

Supply Chain Management

RFID Logistics Tracking

RFID Antenna Warehouse Management

Warehouse Management

door control

Door Control System

product line

Production Line Management

PRODUCT SUPPORT

FAQ - 902–928MHz UHF RFID Antenna

902–928MHz UHF RFID antennas are commonly used in applications that require wireless identification and tracking of tagged items. Typical examples include:​

  • Warehouse management: Identifying goods during storage, inventory checks, and movement.​
  • Logistics tracking: Supporting identification at shipping, receiving, and distribution checkpoints.​
  • Retail inventory: Tracking tagged products and improving stock visibility.​
  • Industrial automation: Identifying components and work-in-progress items along production processes.​
  • Asset management: Tracking tools, equipment, and other valuable assets.​

The antenna design should match the application’s reading area, tag orientation, installation environment, and required coverage.​

RFID reading performance depends on several factors working together. These include antenna gain, polarization, tag sensitivity, reader output power, antenna positioning, and the distance between the antenna and tags.​

The surrounding environment also matters. Metal structures, liquid-filled objects, and nearby reflective surfaces can affect RF propagation and create areas with weaker or inconsistent tag detection. To improve reading reliability, position the antenna carefully, check tag placement, and test the system under actual operating conditions.​

When selecting a high-gain UHF RFID antenna, consider the required reading area, installation position, tag orientation, and surrounding materials. A 6dBi antenna can concentrate more RF energy in its main radiation direction than a lower-gain antenna with a comparable design. However, higher gain does not automatically guarantee a longer reading distance or better performance in every installation. The antenna pattern and actual site conditions should be evaluated together.

RFID can help identify tagged goods during receiving, storage, sorting, and dispatch. Antennas installed at warehouse checkpoints or logistics handling areas communicate with tags, allowing readers to collect item information and transfer it to inventory or logistics software. This can improve visibility into product movement and reduce reliance on manual scanning. For consistent identification, consider tag placement, antenna positioning, reader configuration, and the way goods pass through each reading area.

Yes. Thin PCB RFID antennas can be considered for integration into industrial equipment, workstations, and other structures where installation space is limited. A profile of 1.5mm can be useful when the design needs a low-profile antenna without a bulky enclosure. Before installation, check the available mounting area, supporting structure, nearby metal, and cable routing. The antenna should be tested in its intended position because the surrounding equipment can affect RF performance.

Before connecting a UHF RFID antenna, confirm that its frequency range matches the reader and tags, and check the impedance, connector type, and maximum rated input power. A 902–928MHz antenna with a 50Ω impedance and SMA-Female connector requires a compatible reader connection and cable assembly. The reader’s RF output power must remain within the antenna’s specified maximum input power of 100W. Cable length and quality should also be considered because transmission losses can reduce the power delivered to the antenna.

Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF PCB RFID Antenna products, or here for more RFID Products.
