6dBi Circular Polarized RFID Antenna
Circular Polarized RFID Antenna
Model: APRIA8006CB
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 6dBi
Product Descriptions
The APRIA8006CB 6dBi Circular Polarized RFID Antenna is a mid range, flat panel antenna.It is one of the most common type of RFID antenna, provides a 90 degrees beamwidth. The design of circular polarization makes the antenna could read the horizontal tag or vertical tag. The antenna size is 130x130x18mm, standard with one SMA-Female connector and a short cable, includes two hang mount bracket.
The rugged antenna radome is suitable for a range of indoor / outdoor RFID deployments, including industrial applications.It’s wide using application such as retail, logistic, production, banking. It’s used on Smart retail, Freezer management, Asset management, Filing cabinet management etc.
This model is ESTI UHF RFID frequencies for 865-868MHz, there is also another model is FCC UHF RFID frequencies for 902-928MHz.
Descriptions
- 865-868MHz
- 6dBi
- Circular Polarization
- 130*130*18mm
Applications
- Smart retail
- Freezer management
- Asset management
- Filing cabinet management
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 6dBi |
Beam width | Hor:90°Ver:90° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Dimension | 130*130*18mm |
Net weight | 0.2kg |
Packing size | 15.5*15.5*3.5cm |
Gross weight | 0.25kg |
Radome material | ABS |
Radome colour | White |
Operating temperature | -40-70℃ |
Antenna Pattern

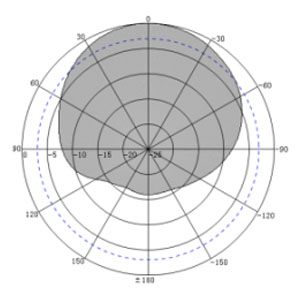

H-Plane

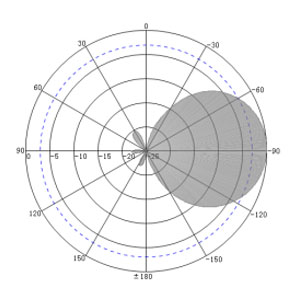

E-Plane

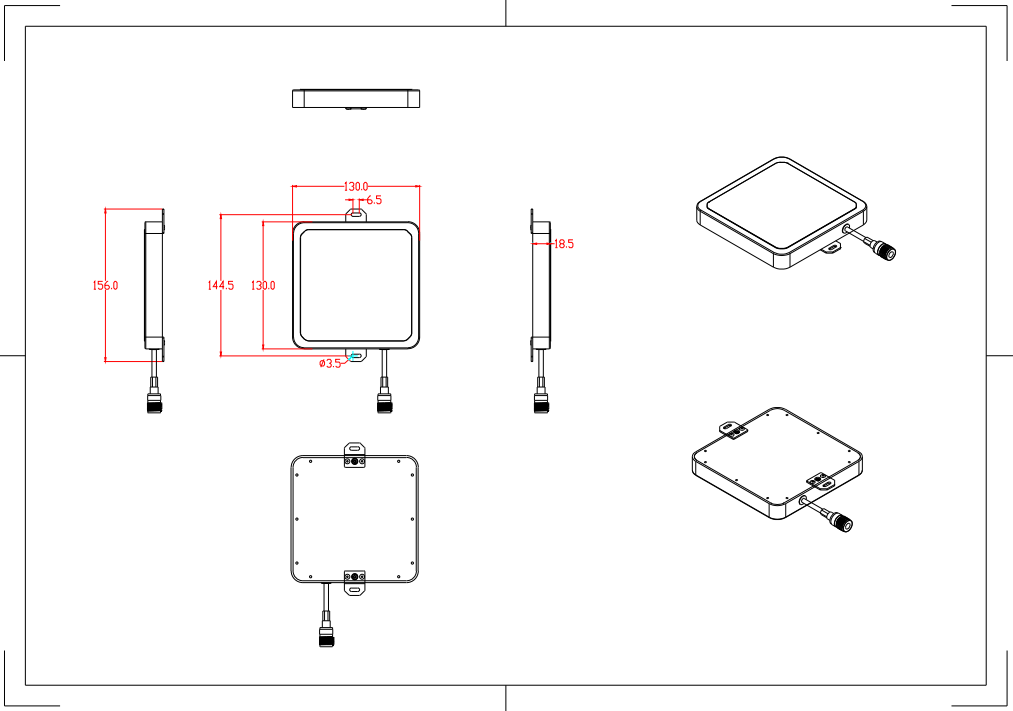

Antenna Drawing
Appliccations
Smart Retail
Enhances retail operations by enabling automatic identification and tracking of tagged items, improving inventory visibility, stock management, and loss prevention.
Freezer management
Enables reliable identification and tracking of tagged products inside freezers, improving inventory management and reducing manual stock checks.
Asset management
Improves asset visibility by automatically identifying and tracking RFID-tagged assets, making inventory checks, asset location, and management more efficient.
File cabinet management
Improves document management by automatically identifying and tracking RFID-tagged files, making storage, retrieval, and inventory checks faster and more efficient.
