5dBi UHF PCB RFID Antenna - 101x101mm

UHF PCB RFID Antenna

Model: APRIA9005CX

Frequency Range: 902-928MHz

Polarization: Circular

Gain: 5dBi

Product Descriptions

The APRIA9005CX delivers a balanced 5dBi gain with circular polarization in the 902–928 MHz band. Its compact 101×101×5.5mm white PCB housing and wide beamwidth (105° horizontal / 80° vertical) ensure flexible mounting and broad coverage. With VSWR ≤1.5 and 100W maximum power handling, this antenna is well-suited for RFID logistics, warehouse management, door control systems, and clothing management applications.

Descriptions

  • 902-928MHz
  • 5dBi
  • CircularPolarization
  • 101*101*5.5mm

Applications

  • RFID logistics tracking
  • Warehouse management
  • Door control system
  • Clothing management

Product Specifications

Electrical Specifications

Frequency

902-928MHz

Gain

5dBi

Beam width

Hor:105°Ver:80°

Polarization

Circular

VSWR

≤1.5

Impedance

50Ω

Maximum power

100W

Lightning protection

DC Ground

Connector

SMA-Female



Mechanical Specifications

Antenna dimensions

101*101*5.5mm

Net weight

0.1kg

Gross weight

0.3kg

Antenna material

PCB

Antenna color

White

Operating temperature

-20-60℃



Antenna Pattern

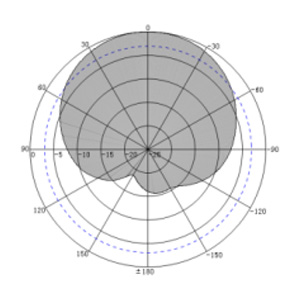

3dBi UHF PCB RFID Antenna – 101x101mm - Antenna Pattern H

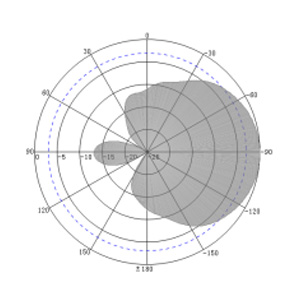

3dBi UHF PCB RFID Antenna – 101x101mm - Antenna Pattern V

H-Plane

H-Plane

Antenna Drawing

5dBi UHF PCB RFID Antenna - 101x101mm

Applications

Supply Chain Management

RFID Logistics Tracking

RFID Antenna Warehouse Management

Warehouse Management

door control

Door Control System

Retail Inventory Management

Clothing Management

PRODUCT SUPPORT

FAQ - 902–928MHz UHF RFID Antenna

Choosing the right 902–928MHz RFID antenna involves more than checking its frequency range. Consider the following factors:​

  • Gain: Determines how RF energy is distributed in the antenna’s radiation pattern.​
  • Beamwidth: Helps define the intended horizontal and vertical coverage.​
  • Polarization: Circular polarization can accommodate variations in tag orientation, while linear polarization can work well when tag alignment is predictable.​
  • Installation: Consider the available mounting space, antenna orientation, and surrounding materials.​
  • Compatibility: Check the reader’s frequency range, impedance, connector interface, and supported RF power.​

The best antenna depends on the reading area, tag placement, and operating requirements of the application.​

The 902–928MHz band is shared by different types of wireless devices, so interference may occur when multiple systems operate nearby. In RFID installations, nearby readers and other RF sources may affect reading consistency, particularly in environments with several wireless systems.​

Interference management usually involves suitable reader configuration, frequency planning, transmit power control, and frequency-hopping techniques where supported by the system. Antenna selection also matters: an appropriate radiation pattern and polarization can help control the intended reading area. Proper impedance matching supports efficient power transfer, but it does not eliminate interference from other devices.​

Compact UHF RFID PCB antennas are used in systems that need to identify tagged items while working within limited installation space. They can be considered for logistics tracking, warehouse inventory, clothing management, and access control equipment. A square PCB design measuring 101 × 101 × 5.5mm can suit installations where a smaller antenna footprint is preferred. Actual performance depends on antenna placement, tag position, reader settings, and the surrounding materials.

RFID helps clothing retailers and warehouses identify tagged garments during receiving, sorting, storage, stocktaking, and dispatch. Antennas communicate with garment tags through RFID readers, allowing item information to be collected and updated in inventory management software. This can reduce reliance on individual barcode scans and support more efficient stock handling. Tag placement, garment arrangement, and antenna positioning should be considered to maintain consistent identification.

A 5dBi UHF RFID antenna provides directional gain that helps concentrate RF energy toward its main radiation area. This can be useful when planning a defined reading zone for inventory, logistics, or access control applications. However, antenna gain alone does not determine the actual reading distance or guarantee better performance in every installation. Tag sensitivity, reader output power, antenna placement, and nearby materials also affect RFID system performance.

Circular-polarized RFID antennas can help accommodate changes in tag orientation during logistics handling. Unlike linear-polarized antennas, they are less dependent on maintaining one specific alignment between the reader antenna and the tag. This can be useful when tagged packages or goods are presented at different angles. However, circular polarization does not guarantee reading at every orientation. Tag design, spacing, antenna placement, and the surrounding environment still influence reading reliability.
