3dBi UHF RFID Ultra-Thin Antenna – 250x110x1mm
UHF RFID Ultra-Thin Antenna
Model: APRIA8003CB
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 3dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 3dBi
- Circular Polarization
- 250*110*1mm
Applications
- RFIDLogistics tracking
- Warehouse applications
- Access control system
- Clothing management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 3dBi |
Beam width | Hor：110°Ver：70° |
Polarization | Circular |
VSWR | ≤1.5 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 250*110*1mm |
Net weight | 0.2kg |
Gross weight | 0.5kg |
Radome material | PCB |
Radome colour | Black |
Operating temperature | -20-60℃ |
Antenna Pattern

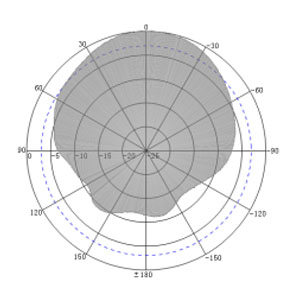

H-Plane

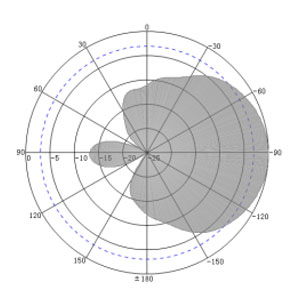

E-Plane

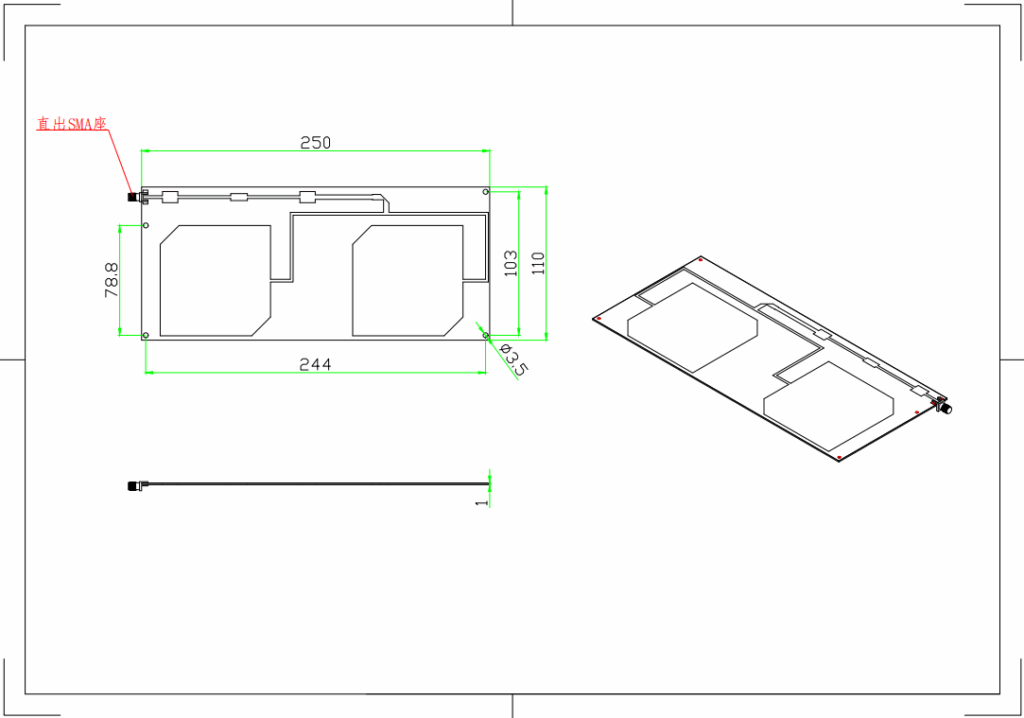

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Ultra-Thin Antenna products, or here for more RFID Products.
