3dBi UHF PCB RFID Antenna – 180x162mm
UHF PCB RFID Antenna
Model: APRIA8003CX-180
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 3dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 3dBi
- CircularPolarization
- 180*162*1mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Production line management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 3dBi |
Beam width | Hor：73° Ver：64° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥10 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 180*162*1 mm |
Net weight | 0.2kg |
Gross weight | 0.4kg |
Antenna material | PCB |
Antenna colour | Natural color |
Operating temperature | -20-60℃ |
Antenna Pattern

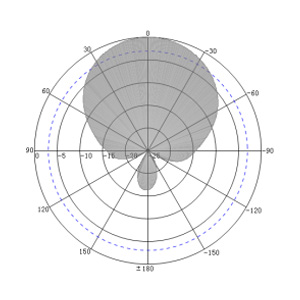

H-Plane

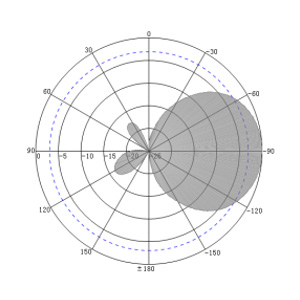

E-Plane
Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF PCB RFID Antenna products, or here for more RFID Products.
