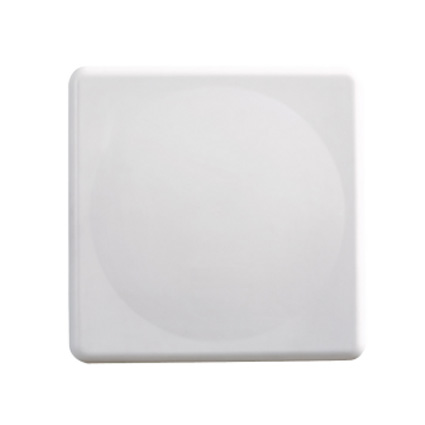

2.4GHz & 5.8GHz Outdoor Panel WiFi Antenna

An Outdoor WiFi Panel Antenna is a directional antenna designed to transmit and receive wireless signals in outdoor WiFi networks.
Unlike omni-directional antennas that radiate signals around 360 degrees, a panel antenna focuses RF energy toward a specific direction, providing more concentrated coverage and improved wireless link performance.
Cisco Meraki DocumentationCisco Meraki Do…
A typical outdoor WiFi system works as:
Router / Access Point
↓
RF Signal
↓
Outdoor WiFi Panel Antenna
↓
Directional Wireless Coverage
↓
Remote Client Devices
Outdoor panel antennas are commonly used for:

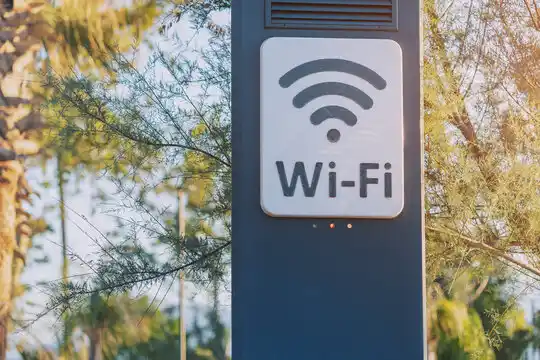

• Outdoor WiFi coverage extension

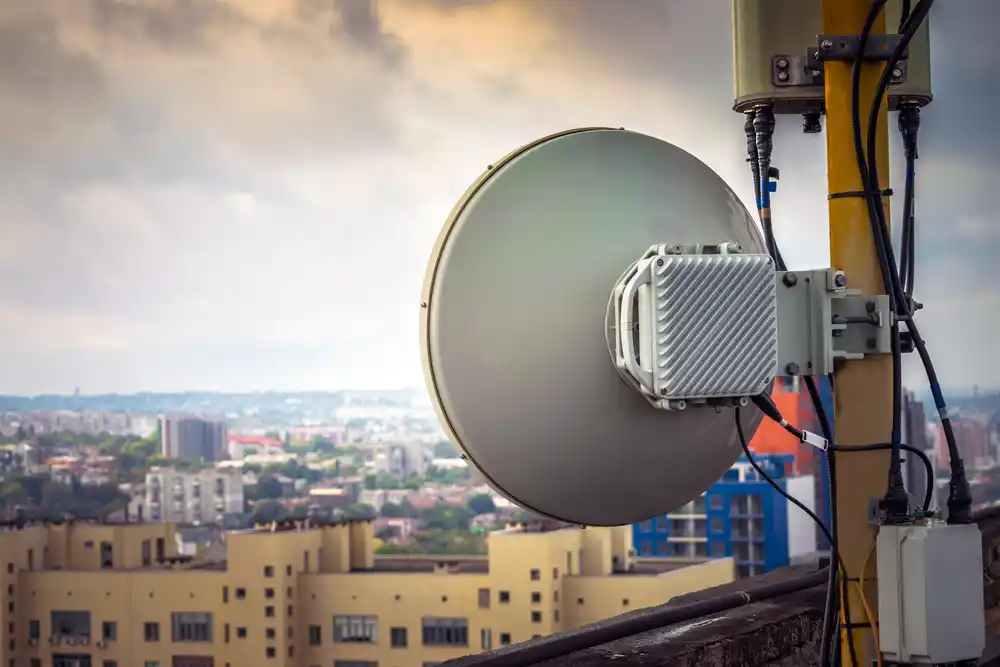

• Wireless bridge connections
• Industrial wireless networks

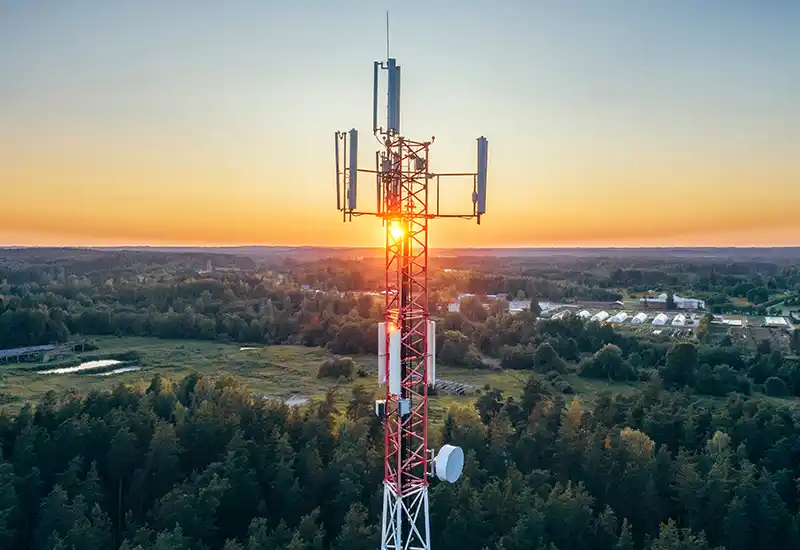

• WISP deployments
• Campus and building-to-building communication
The antenna design helps optimize:
• Signal direction
• Coverage distance
• Network stability
• Interference control

A Dual Band WiFi Panel Antenna supports both 2.4GHz and 5.8GHz frequency bands in a single antenna design.

It allows wireless equipment to operate across different WiFi standards while simplifying installation and antenna management.

Advantages include:

• Support for multiple WiFi bands
• Flexible network deployment
• Reduced installation complexity
• Compatibility with dual-band access points

Dual-band panel antennas are commonly used in:

• Outdoor WiFi networks
• WISP systems
• Industrial wireless applications
• Wireless bridge solutions

When selecting a dual-band antenna, users should verify:

• Frequency range
• Gain performance on each band
• Connector type
• MIMO configuration

Outdoor WiFi Panel Antennas provide several advantages compared with standard indoor antennas.
Directional Coverage
The antenna focuses wireless energy toward a specific area, making it suitable for targeted outdoor coverage.
Extended Wireless Range
By concentrating RF energy, panel antennas can improve communication distance in the intended direction.
Reduced Interference
Directional radiation helps reduce unwanted signals from other directions.
Flexible Installation
Outdoor panel antennas can be mounted on:
• Walls
• Poles
• Towers
• Outdoor equipment
They are widely used in applications where stable wireless connections are required over larger outdoor areas.

A dual-band outdoor panel WiFi antenna provides flexible wireless connectivity by supporting both 2.4GHz and 5.8GHz frequency bands in one antenna solution.
Key advantages include:

Flexible Frequency Support
The 2.4GHz band provides wider compatibility and better propagation characteristics, while the 5.8GHz band supports higher-capacity wireless applications with reduced interference in many environments.
Directional Signal Control
The panel design focuses wireless energy toward the target area, improving signal efficiency and reducing unwanted interference.
Simplified Deployment
A dual-band antenna allows network operators to support different wireless requirements without installing separate antennas for each frequency.
These advantages make dual-band panel antennas suitable for outdoor wireless infrastructure and long-range communication systems.

The coverage distance of an Outdoor WiFi Panel Antenna depends on the complete wireless system, not only the antenna itself.
Important factors include:
Antenna Gain
Higher gain antennas can provide more focused signal coverage.
Beam Width
A narrower beam concentrates energy over a smaller area, which is suitable for longer-distance directional links.
Transmitter Power
The WiFi device output power affects the achievable range.
Installation Environment
Performance can be affected by:
• Obstacles
• Building structures
• Antenna alignment
• Cable loss
For this reason, outdoor WiFi range should be evaluated based on the entire link design rather than antenna gain alone.

Choosing the correct Outdoor WiFi Panel Antenna requires evaluating the network environment and application requirements.

Key factors include:

Frequency Band

Select:

• 2.4GHz
• 5.8GHz
• Dual-band 2.4GHz/5.8GHz

according to the wireless equipment.

Coverage Direction

Choose based on deployment:

• Wide directional coverage
• Long-distance point-to-point link
• Specific coverage area

Gain and Beam Width

Higher gain provides stronger directional coverage, while beam width determines the coverage angle.

Installation Environment

Consider:

• Outdoor weather conditions
• Mounting method
• Connector compatibility

A properly matched antenna improves wireless reliability and avoids unnecessary signal loss.
