12dBi ETSI UHF Integrated RFID Reader Antenna
UHF Integrated RFID Reader Antenna
Model: APRIA80012CD
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 12dBi
Descriptions
- 865-868MHz
- 12dBi
- Circular Polarization
- 445*445*74mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 12dBi |
Beam width | Hor：40° Ver：40° |
Polarization | Circular |
VSWR | ≤1.3 |
F/B Ratio | ≥25 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 445*445*74mm |
Net weight | 2.3kg |
Packing size | 60*48*11cm |
Gross weight | 4.25kg |
Radome material | Aluminum |
Radome colour | White |
Pole diameter | Φ40-80mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

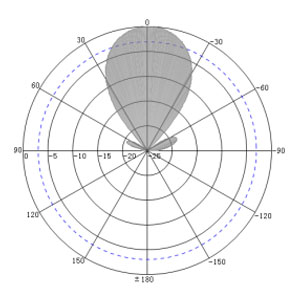

H-Plane

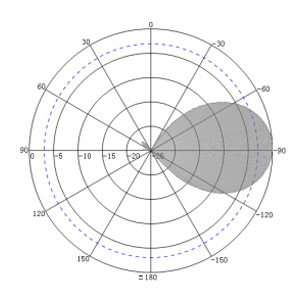

E-Plane

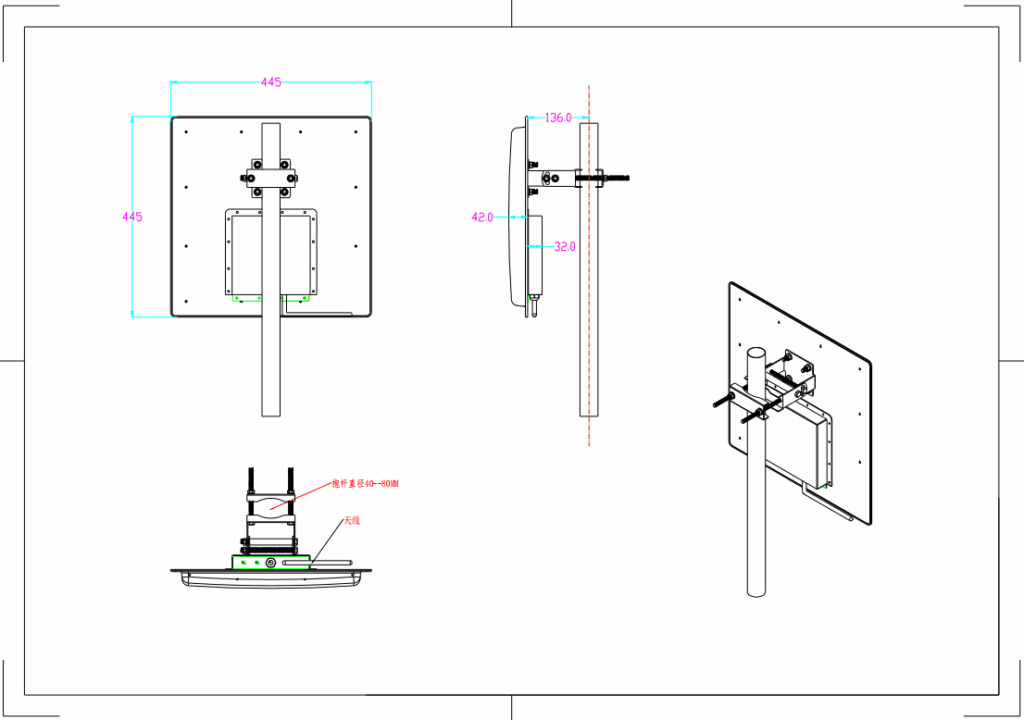

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more ETSI UHF Integrated RFID Reader Antenna products.
