UHF Near-Field RFID Antenna – 40x30mm
UHF Near-Field RFID Antenna
Model: APRIA8000403NF / APRIA9000403NF
Frequency Range: 865-868MHz / 902-928MHz
Polarization: Circular
Gain: -15dBi
Descriptions & Applications
Descriptions
- 865-868MHz / 902-928MHz
- -15dBi
- Circular Polarization
- 40*30*1mm
Applications
- Smart retail
- Freezer management
- Asset management
- Jewelry management
Product Descriptions
Airplux’s 40x30mm UHF Near Field RFID Antenna is expertly designed for ultra-precise, short-range RFID identification, making it the ideal solution for item-level tagging in compact or high-density environments. Its small form factor and low profile make it perfect for use in POS terminals, document cabinets, medical storage trays, and cold-chain applications such as freezers.
This model is available in two frequency versions:
ETSI 865–868 MHz (Model: APRIA8000403NF)
FCC 902–928 MHz (Model: APRIA9000403NF)
It comes standard with an SMA-Female connector, and supports full customization of connector types and cable lengths to suit your specific hardware configuration or deployment needs.
Built for precision and reliability, the 40x30mm antenna helps eliminate stray reads and ensures only the intended tags are captured — making it a top choice for secure, targeted RFID scanning.
Product Specifications
|
Electrical Specifications |
|
|
Frequency |
865-868MHz / 902-928MHz |
|
Gain |
-15dBi |
|
Polarization |
Circular |
|
VSWR |
≤1.8 |
|
Impedance |
50Ω |
|
Maximum power |
100W |
|
Lightning protection |
DC Ground |
|
Connector |
SMA-Female |
|
Mechanical Specifications |
|
|
Antenna dimensions |
40*30*1mm |
|
Net weight |
0.1kg |
|
Gross weight |
0.12kg |
|
Antenna material |
PCB |
|
Antenna color |
Black |
|
Operating temperature |
-20-60℃ |
|
IP Rating |
Indoor Use |

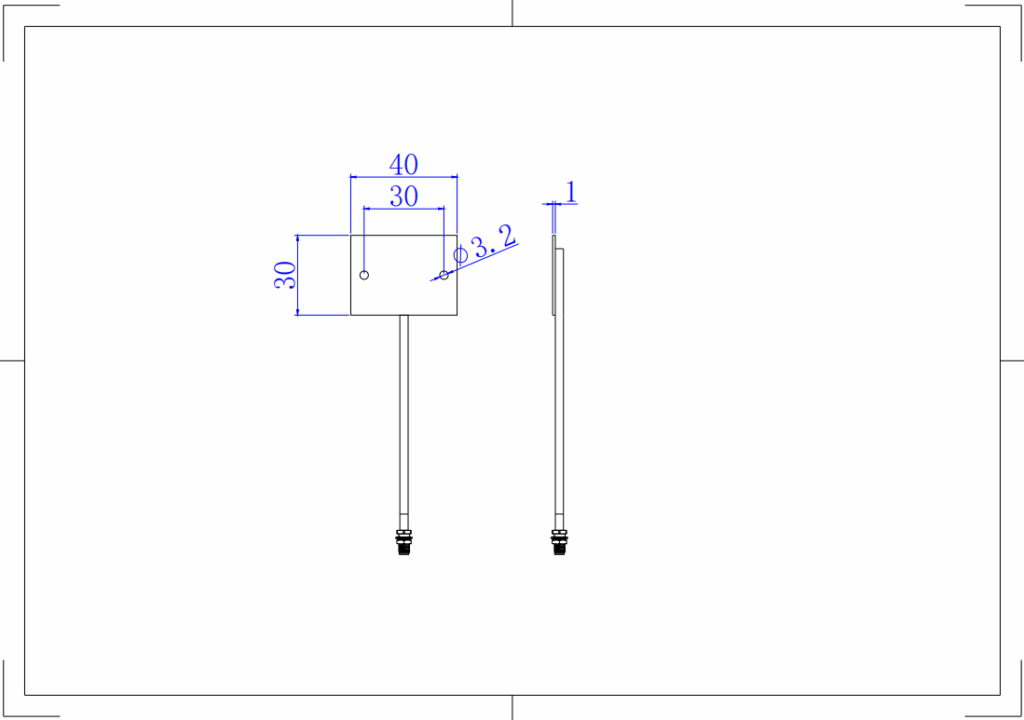

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF Near-Field RFID Antenna products.
