MIMO Omnidirectional WiFi Antennas
MIMO Omnidirectional WiFi Antennas -2

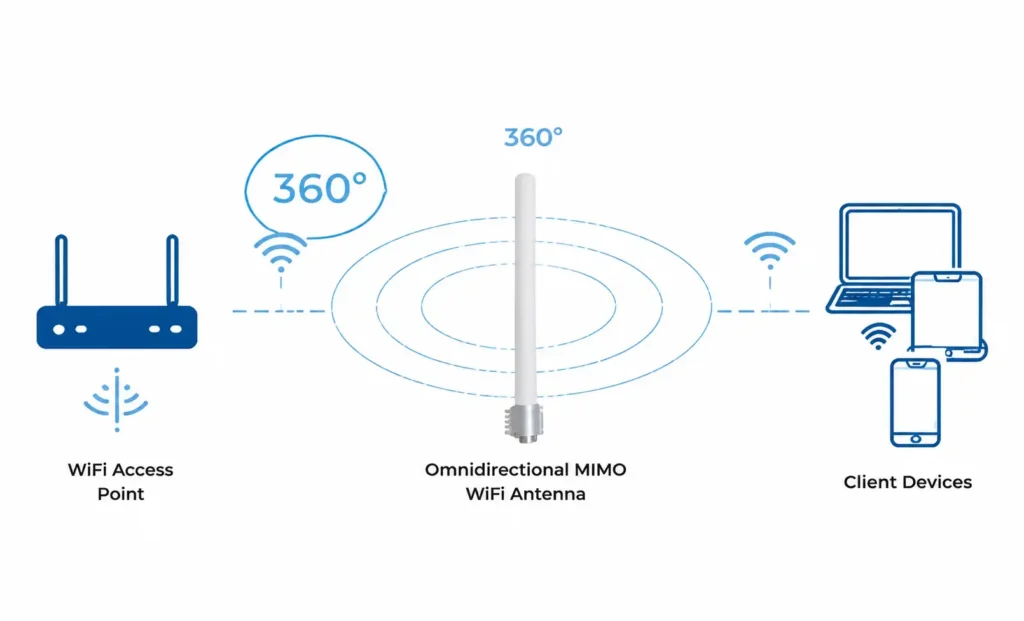

MIMO Omnidirectional WiFi Antennas are included 2.4GHz mimo omni antenna, 5.8GHz mimo omni antenna, 2.4/5.8GHz dual band mimo omni antenna. The antennas combine horizontal and vertical polarization, provides powerful 360 degrees coverage, designed for MIMO point to multipoint applications in the 2.4GHz frequency range from 2400-2500MHz and 5GHz frequency range from 5150-5850MHz.

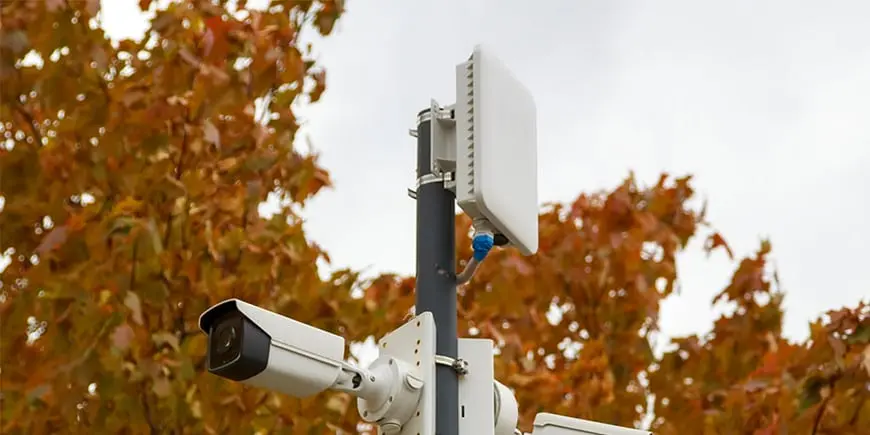

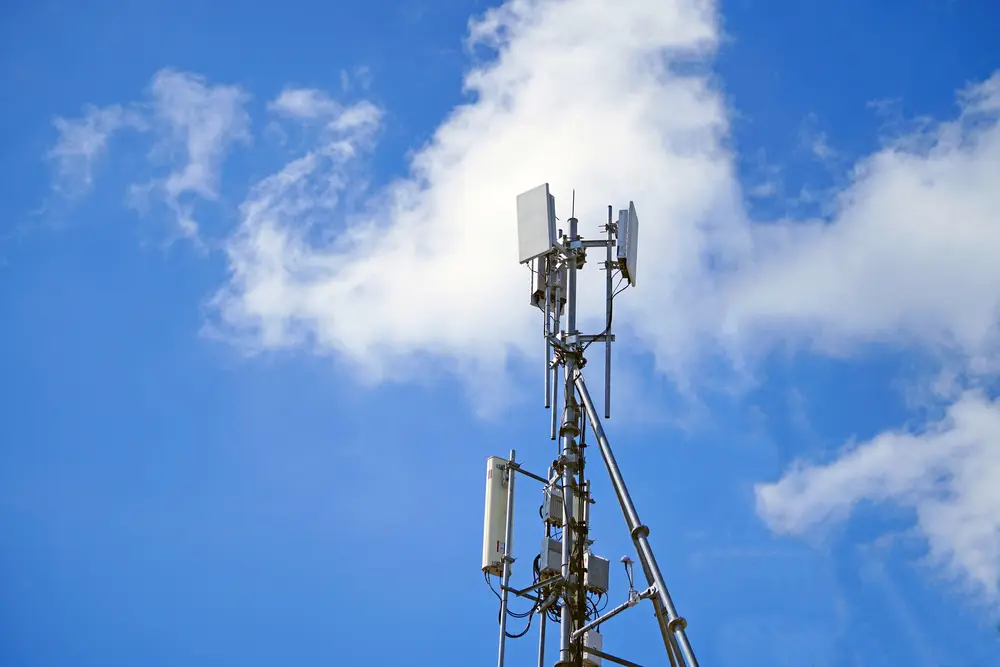

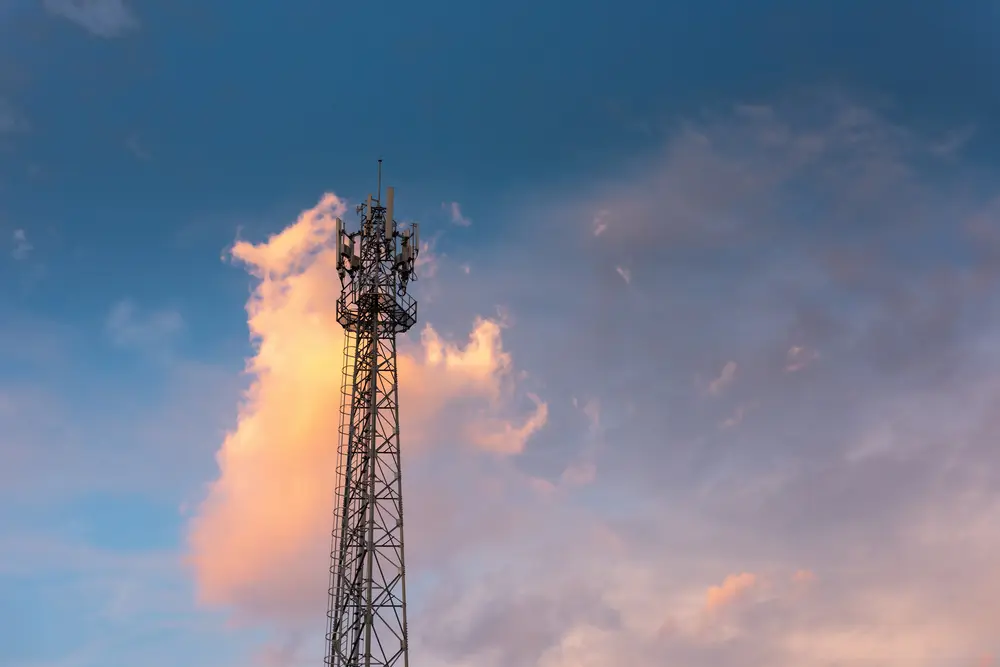

The UV-resistant radome is for all weather operation, antenna includes mast mounting hardware for outdoor pole installation. This mimo omnidirectional antenna is suitable for 2.4GHz/5GHz Outdoor Wireless LAN systems, supports MIMO WIFI AP/Router, IEEE 802.11b/g/n applications, WISP (Wireless Internet Service Provider), WiFi Communication. It’d help you to creat a powerful omnidirectional WIFI base station.

2.4GHz 12dBi MIMO Omnidirectional WiFi Antennas

2.4GHz 12dBi MIMO Omni WIFI Antenna

Model

APOA240012M

Electrical specifications

Frequency range (MHz)

2400-2500

Polarization

Horizontal+Vertical

Gain(dBi)

12

Half-power beam wid(°)

Hor:360 Ver:8

Impedance (Ω)

50

Port to Port Isolation(dB)

≥25

VSWR

≤1.5

Maximum input power (W)

100

Lightning protection

DC Ground

Mechanical specifications

Connector

2xN-Female or Customized

Connector position

Bottom

Size(mm)

Φ75×1150

Antenna weight(kg)

2.5

Rated wind velocity

210 km/h

Radome material

PVC

Radome color

White

Operating temperature (℃)

-40~65

Mounting hardware (mm)

Φ40~φ75

5.8GHz 12dBi MIMO Omnidirectional WiFi Antennas

5GHz 12dBi MIMO Omni WIFI Antenna

Model

APOA580012MS

Electrical specifications

Frequency range (MHz)

5150-5850

Polarization

Horizontal+Vertical

Gain(dBi)

12

Half-power beam wid(°)

Hor:360 Ver:8

Impedance (Ω)

50

Port to Port Isolation(dB)

≥25

VSWR

≤1.8

Maximum input power (W)

100

Lightning protection

DC Ground

Mechanical specifications

Connector

 2xRP-SMA Female

Connector position

Bottom

Size(mm)

Φ40×570

Antenna weight(kg)

2

Rated wind velocity

210 km/h

Radome material

PVC

Radome color

White

Operating temperature (℃)

-40~65

Mounting hardware (mm)

Φ40~φ75

5GHZ MIMO OMNI WIFI ANTENNA
5GHZ MIMO OMNI WIFI ANTENNA
5GHZ MIMO OMNI WIFI ANTENNA

2.4/5.8GHz 8/12dBi MIMO Omni WIFI Antenna

5GHz 12dBi MIMO Omni WIFI Antenna

Model

APOA245812M

Electrical specifications

Frequency range (MHz)

2400-2500/5150-5850

Polarization

H+V/H+V

Gain(dBi)

8/12

Half-power beam wid(°)

Hor:360 Ver:12/8

Impedance (Ω)

50

Port to Port Isolation(dB)

≥25

VSWR

≤1.8

Maximum input power (W)

100

Lightning protection

DC Ground

Mechanical specifications

Connector

4xN-Female or Customized

Connector position

Bottom

Size(mm)

Φ75×1150

Antenna weight(kg)

4

Rated wind velocity

210 km/h

Radome material

PVC

Radome color

White

Operating temperature (℃)

-40~65

Mounting hardware (mm)

Φ40~φ75

About Airplux Technologies:

Airplux Technologies is one professional Antenna manufacturer which is integrating R&D, production and sales of antennas. Airplux manufactures superior quality DAS antennasWiFi antennasRFID antennas, IOT antennas, Base Station antennas and customized antennas from 350MHz to 6GHz. Airplux specializes in the production of custom antennas and related accessories.
