9dBi UHF RFID Reader Antenna with Enclosure
UHF RFID Reader Antenna with Enclosure
Model: APRIA9009CS
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 9dBi
Descriptions
- 902-928MHz
- 9dBi
- Circular Polarization
- 260*260*100mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Electrical Specifications | |
Frequency | 902-928MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 260*260*100mm |
Net weight | 1.9kg |
Packing size | 40.5*30.5*10.5cm |
Gross weight | 2.75kg |
Radome material | Aluminum |
Radome colour | White |
Pole diameter | Φ30-50mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

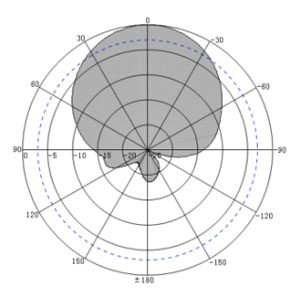

H-Plane

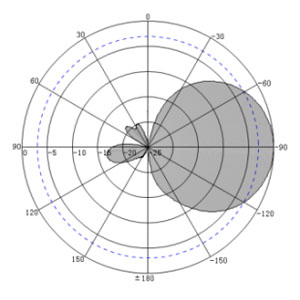

E-Plane
Antenna Drawing
