9dBi UHF Circular RFID Reader Antenna
UHF RFID Reader Antenna
Model: APRIA8009CA
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 9dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 9dBi
- Circular Polarization
- 260*260*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Man management system
Product Descriptions
The APRIA8009CA UHF Circular RFID Reader Antenna is a high performance, high quality circularly polarized antenna, with 9dBi gain and very low VSWR. Antenna working frequency range is ETSI 865-868MHz , also available for FCC 902-928MHz version. Standard with N-Female connector, available of any type of customized antenna connector & cable length based on the actual usage requirements and applications.
This UHF RFID Antenna will be good for the applications of RFID logistics tracking, Warehouse management, Door control system, Man management system and so on.
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 9dBi |

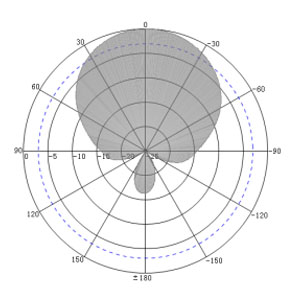

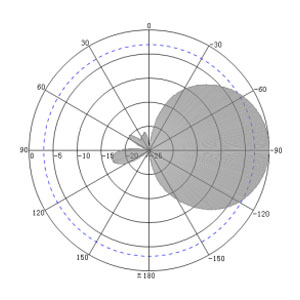

Beam width | Hor：70° Ver：70° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |

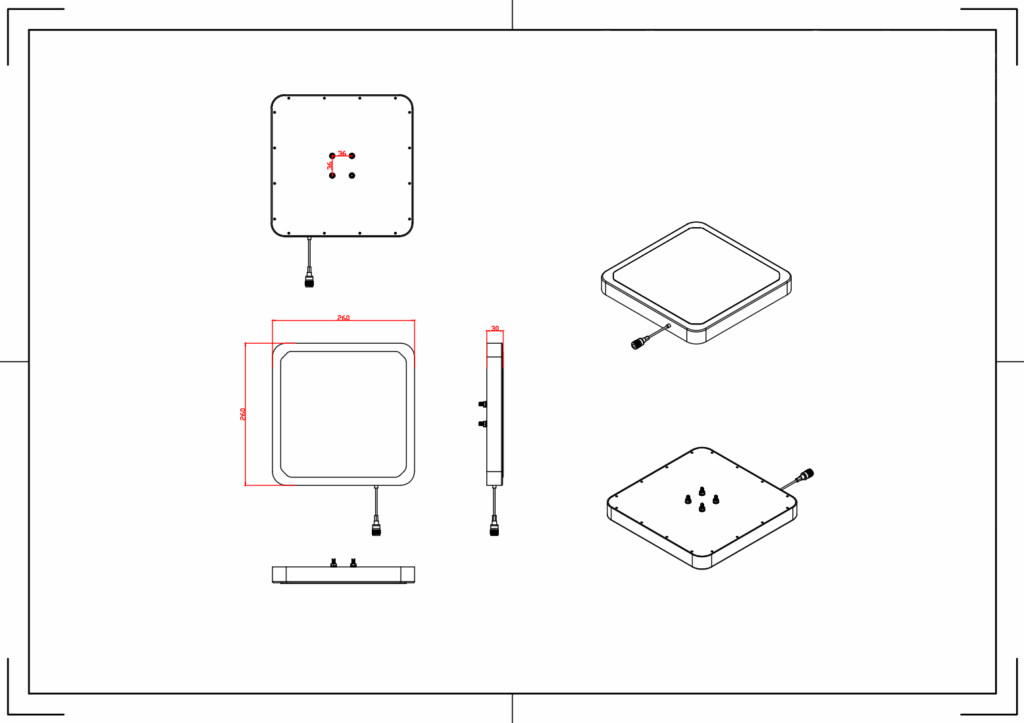

Dimension | 260*260*30mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Gross weight | 1.68kg |
Radome material | ABS |
Radome colour | White |
Pole Diameter | Φ30-50mm |
Rated wind velocity | 60m/s |
Operating temperature | -40-70℃ |
Installation Photos
RFID Antenna Applications
File Management
Retail store management
Warehouse Management
Libray Management
Door control system
Access Control Management
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more RFID Antenna products, or here for more RFID Products.
