9dBi Industrial Grade UHF RFID Reader Antenna
UHF RFID Patch Antenna
Model: APRIA86969CC
Frequency Range: 860-960MHz
Polarization: Circular
Gain: 9dBi
Descriptions & Applications
Descriptions
- 860-960MHz
- 9dBi
- Circular Polarization
- 260*260*30mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking management
Product Specifications
Electrical Specifications | |
Frequency | 860-960MHz |
Gain | 9dBi |
Beam width | Hor：70° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | N-Female |
Mechanical Specifications | |
Antenna dimensions | 260*260*30mm |
Net weight | 1.1kg |
Packing size | 29*29*8cm |
Gross weight | 1.68kg |
Radome material | Aluminum |
Radome colour | White |
Pole diameter | φ30-50mm |
Operating temperature | -20-60℃ |
IP Rating | IP67 |
Antenna Pattern

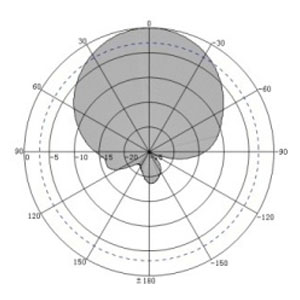

H-Plane

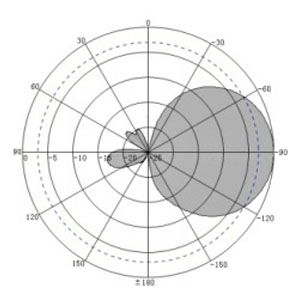

E-Plane

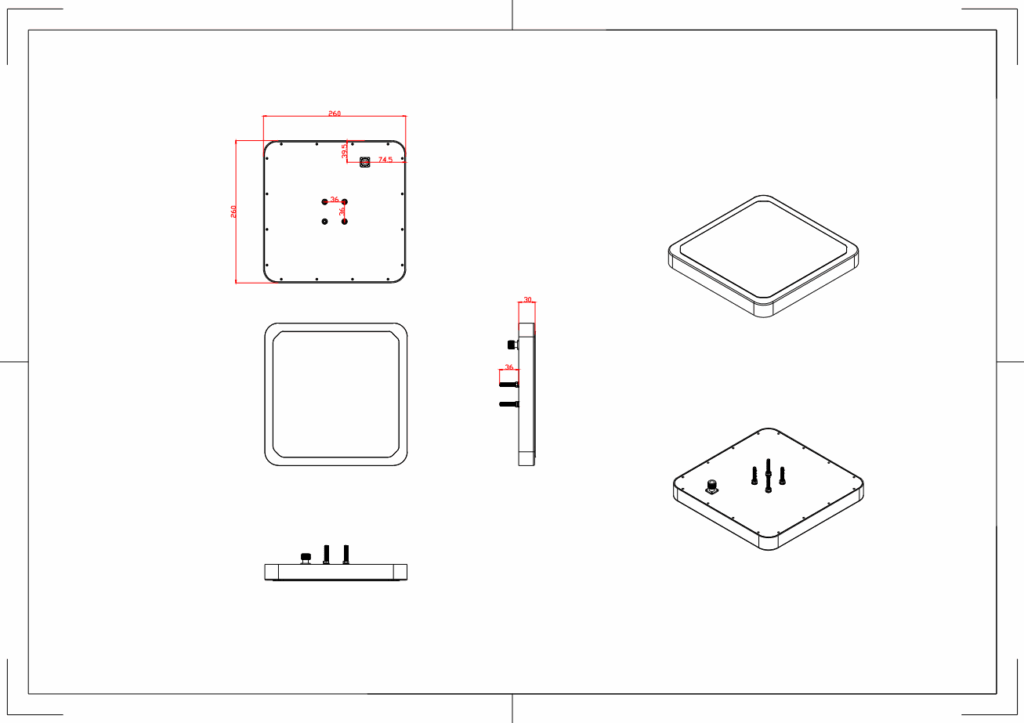

Antenna Drawing
