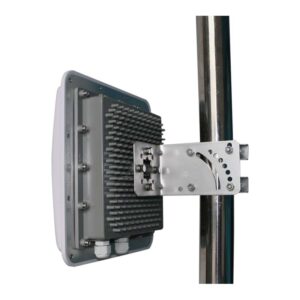

UHF RFID Industrial Grade Integrated Reader Antenna
Model: APRIA800BCS
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 8dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 8dBi
- Circular Polarization
- 256*256*100mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Mechanical Specifications | |
Frequency | 865-868MHz |
Gain | 8dBi |
Beam width | Hor：65° Ver：60° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥22 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 256*256*100mm |
Net weight | 2.5kg |
Packing size | 28*28*12cm |
Gross weight | 3kg |
Radome material | Aluminum |
Radome colour | White |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

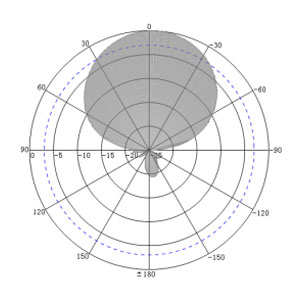

H-Plane

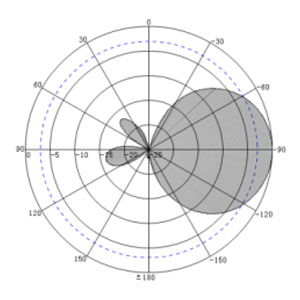

E-Plane

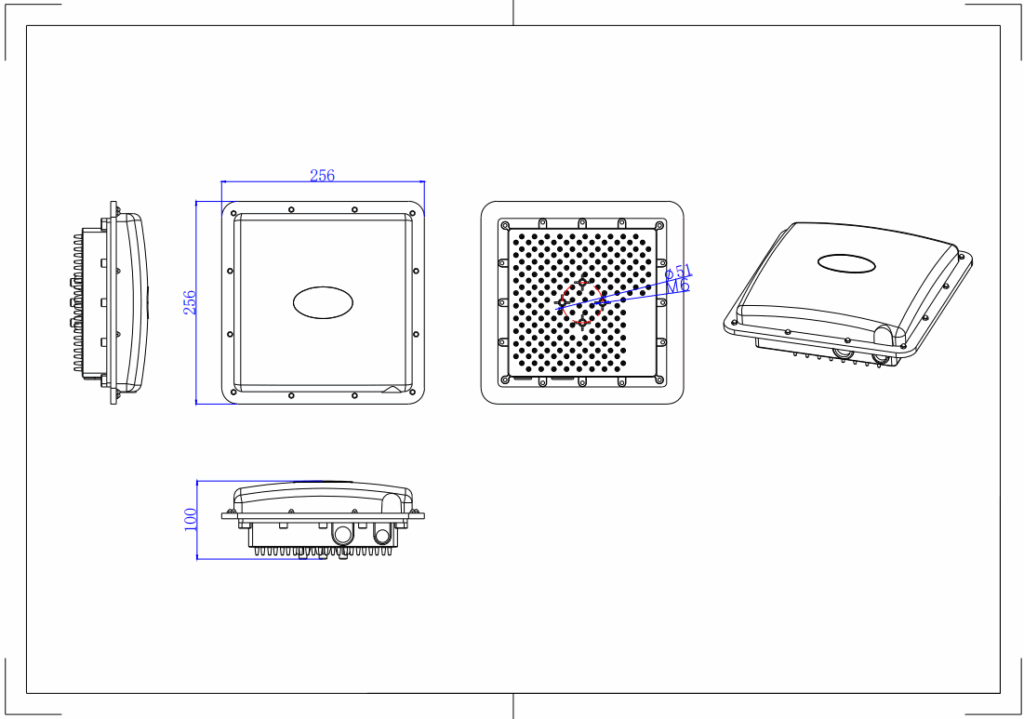

Antenna Drawing
