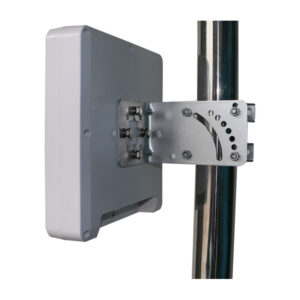

8dBi UHF RFID Asset Tracking Integrated Reader Antenna
UHF RFID Asset Tracking Integrated Reader Antenna
Model: APRIA8008CX
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 8dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 8dBi
- Circular Polarization
- 220*220*56mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Mechanical Specifications | |
Frequency | 865-868MHz |
Gain | 8dBi |
Beam width | Hor：80° Ver：60° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 220*220*56mm |
Net weight | 0.65kg |
Packing size | 24*24*7cm |
Gross weight | 1.32kg |
Radome material | Aluminum |
Radome colour | White |
Pole diameter | Φ30-50mm |
Rated wind velocity | 50m/s |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

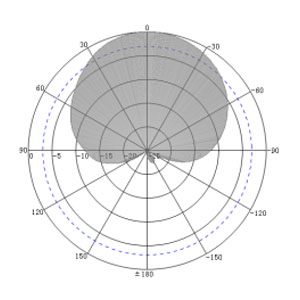

H-Plane

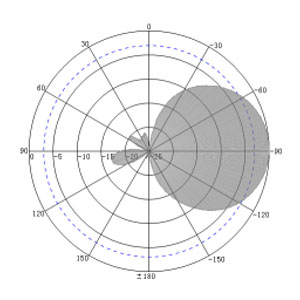

E-Plane
Antenna Drawing
