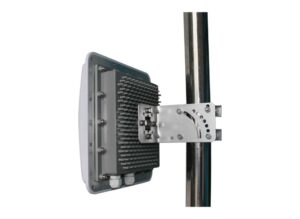

8dBi UHF Integrated RFID Logistics Tracking Antenna
8dBi UHF Integrated RFID Logistics Tracking Antenna
Model: APRIA9008CS
Frequency Range: 902-928MHz
Polarization: Circular
Gain: 8dBi
Descriptions & Applications
Descriptions
- 902-928MHz
- 8dBi
- Circular Polarization
- 256*256*100mm
Applications
- RFID logistics tracking
- Warehouse management
- Door control system
- Parking lot management
Product Specifications
Mechanical Specifications | |
Frequency | 902-928MHz |
Gain | 8dBi |
Beam width | Hor：65° Ver：60° |
Polarization | Circular |
VSWR | ≤1.5 |
F/B Ratio | ≥22 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | Customized |
Mechanical Specifications | |
Dimension | 256*256*100mm |
Net weight | 2.5kg |
Packing size | 28*28*12cm |
Radome material | Aluminum |
Radome colour | White |
Gross weight | 3kg |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

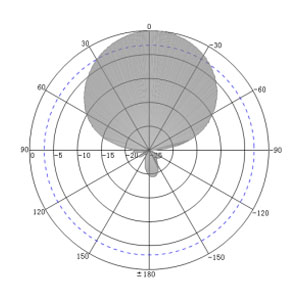

H-Plane

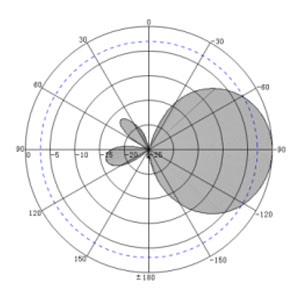

E-Plane
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more UHF RFID Access Control Integrated Reader Antenna products.
