8dBi UHF Circular RFID Reader Antenna
UHF Circular RFID Reader Antenna
Model: APRIA8008CP
Frequency Range: 865-868MHz
Polarization: Circular
Gain: 8dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 8dBi
- Circular Polarization
- 452*163*20mm
Applications
- Smart retail
- Freezer management
- asset management
- Filing cabinet management
Product Specifications
The APRIA8008CP 8dBi UHF RFID Reader Antenna is a mid range, circularly polarized, flat panel antenna.It is one of the most common type of RFID antenna, provides a 65 degrees horizontal beamwidth and 35 degrees vertical beamwidth . The design of circular polarization makes the antenna could read the horizontal tag or vertical tag. The antenna size is 452x163x20mm, comes with an integral SMA-Female connector.
The rugged antenna radome is suitable for a range of indoor / outdoor RFID deployments, including industrial applications.It’s wide using application such as warehousing, logistic, retail, banking. It’s used on assets tracking, warehouse management, Freezer management, Smart retail, Smart cabinet, Filing cabinet management etc.
This model is FCC ETSI UHF RFID frequencies for 865-868MHz, there is also another model is FCC UHF RFID frequencies for 902-928MHz.
Product Photos
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 8dBi |

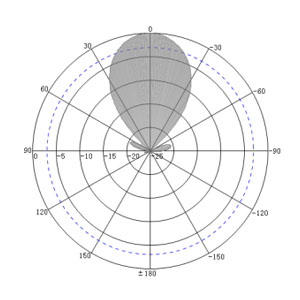

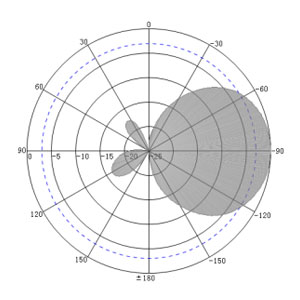

Beam width | Hor：65° Ver：35° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 50W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |

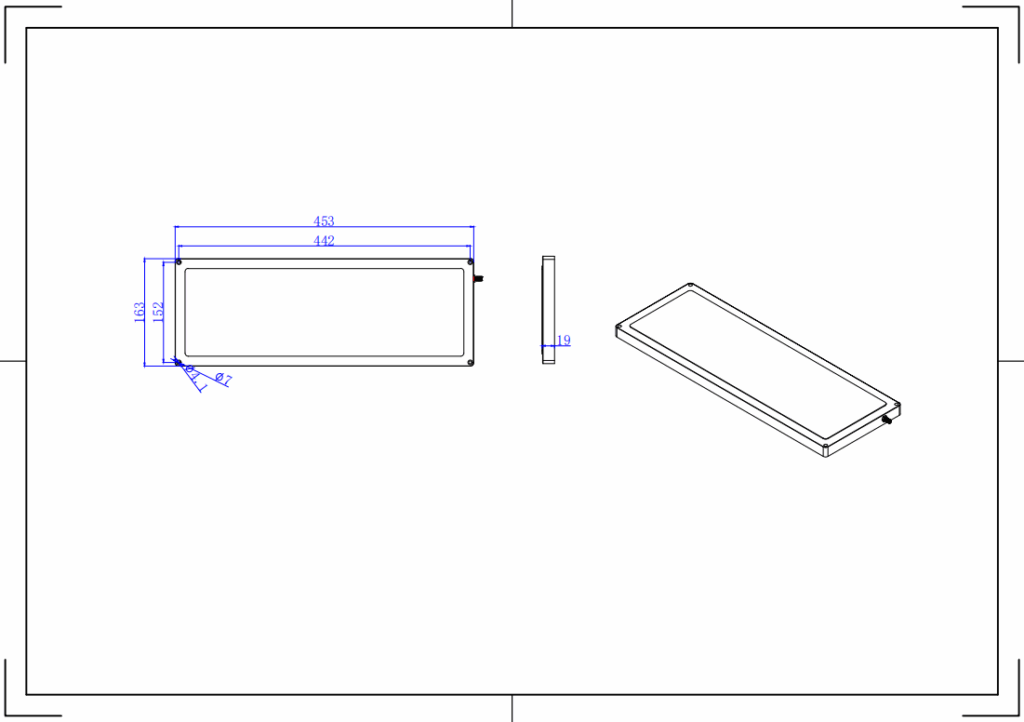

Dimension | 452*163*20mm |
Net weight | 0.7kg |
Packing size | 49*22*3cm |
Gross weight | 1.2kg |
Radome material | Organic Glass |
Radome colour | White |
Operating temperature | -40-70℃ |
