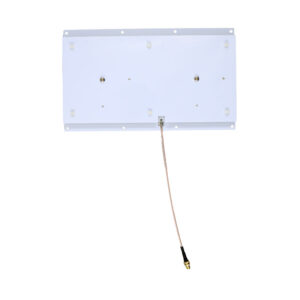

7dBi UHF RFID Narrow Beam Portal Gate Antenna – 260x155x9mm
UHF RFID Narrow Beam Portal Gate Antenna
Model: APRIA8007CZ / APRIA9007CZ
Frequency Range: 865-868MHz / 902-928MHz
Polarization: Circular
Gain:7dBi
Descriptions & Applications
Descriptions
- 865-868MHz / 902-928MHz
- 7dBi
- Circular Polarization
- 260*155*9mm
Applications
- Access gate management
- Freezer management
- Asset management
- File cabinet management
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz / 902-928MHz |
Gain | 7dBi |
Beam width | Hor:75° Ver:55° |
Polarization | Circular |
VSWR | ≤1.3 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 260*155*9mm |
Net weight | 0.4kg |
Packing size | 35*20*6cm |
Gross weight | 0.5kg |
Radome radome material | PCB |
Radome colour | Green |
Operating temperature | -20-60℃ |
Antenna Pattern

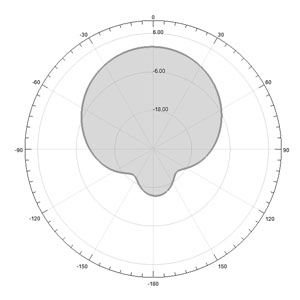

H-Plane

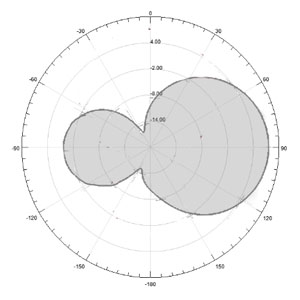

E-Plane

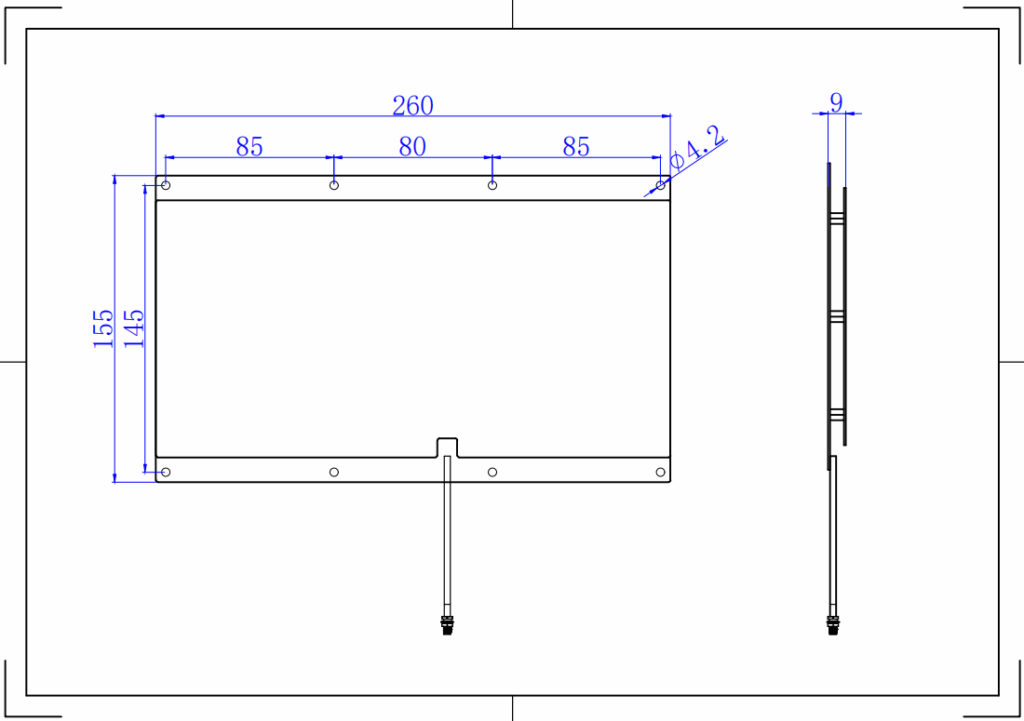

Antenna Drawing
