6dBi Ultra-Slim UHF RFID Antenna – 815x34x5mm
Ultra-Slim UHF RFID Antenna
Model: APRIA8006LX
Frequency Range: 865-868MHz
Polarization: Linear
Gain: 6dBi
Descriptions & Applications
Descriptions
- 865-868MHz
- 6dBi
- Linear Polarization
- 815*34*5mm
Applications
- Production line management
- Garment management
- Access control system
- Smart inventory
Product Specifications
Electrical Specifications | |
Frequency | 865-868MHz |
Gain | 6dBi |
Beam width | Hor：200° Ver：20° |
Polarization | Linear |
VSWR | ≤1.5 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 815*34*5mm |
Net weight | 0.28kg |
Packing size | 84*5*3cm |
Gross weight | 0.5kg |
Antenna material | PCB |
Antenna colour | Black |
Operating temperature | -20-60℃ |
Antenna Pattern

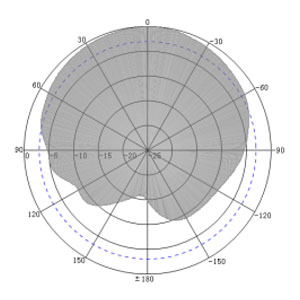

H-Plane

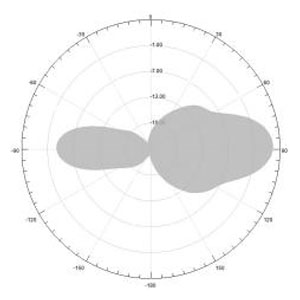

E-Plane

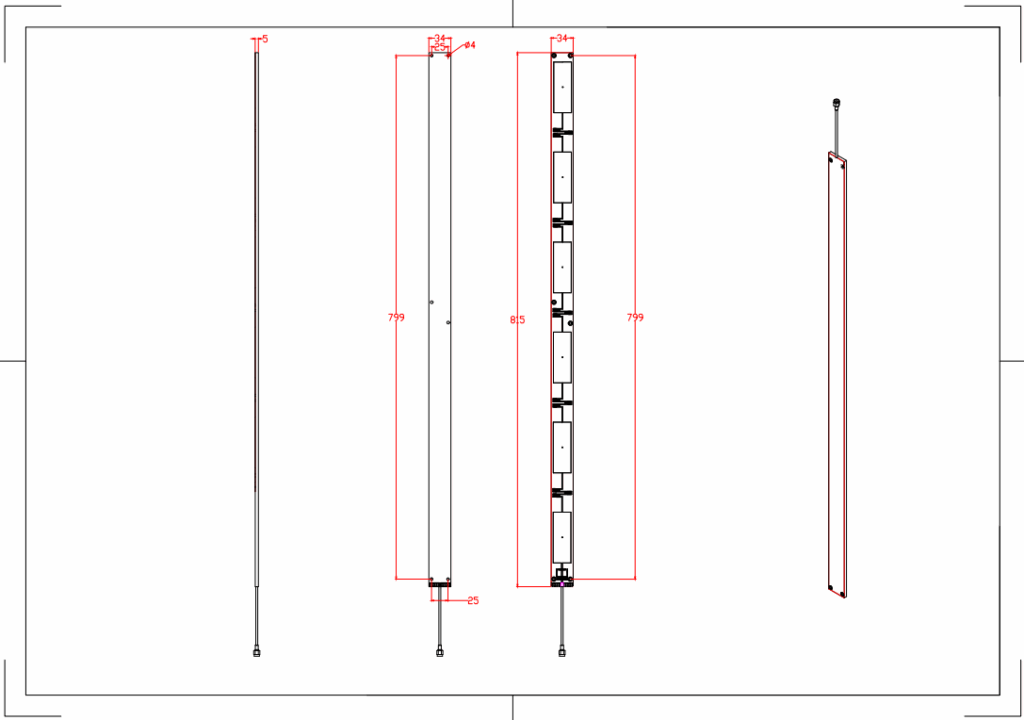

Antenna Drawing
Please feel free to contact us by info@airpluxtec.com for more detailed info if you’re interested in this Antenna, or please check here for our more Ultra-Slim UHF RFID Antenna products, or here for more RFID Products.
