6dBi UHF RFID Smart Cabinet Antenna
UHF RFID Smart Cabinet Antenna
Model: APRIA86966CB
Frequency Range: 860-960MHz
Polarization: Circular
Gain: 6dBi
Descriptions & Applications
Descriptions
- 860-960MHz
- 6dBi
- Circular Polarization
- 130*130*18.5mm
Applications
- Smart retail
- Freezer management
- Assetmanagement
- File cabinet management
Product Specifications
Electrical Specifications | |
Frequency | 860-960MHz |
Gain | 6dBi |
Beam width | Hor: 105°Ver: 95° |
Polarization | Circular |
VSWR | ≤1.4 |
F/B Ratio | ≥20 |
Impedance | 50Ω |
Maximum power | 100W |
Lightning protection | DC Ground |
Connector | SMA-Female |
Mechanical Specifications | |
Antenna dimensions | 130*130*18.5mm |
Net weight | 0.2kg |
Packing size | 15.5*15.5*3.5cm |
Gross weight | 0.25kg |
Radome material | ABS |
Radome colour | White |
Installation method | Hang mount |
Operating temperature | -20-60℃ |
IP Rating | IP65 |
Antenna Pattern

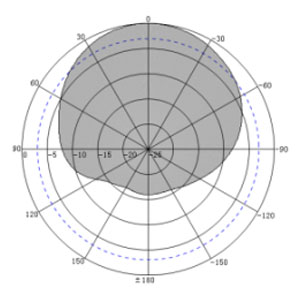

H-Plane

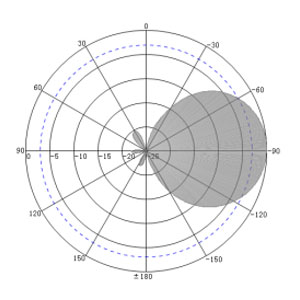

E-Plane

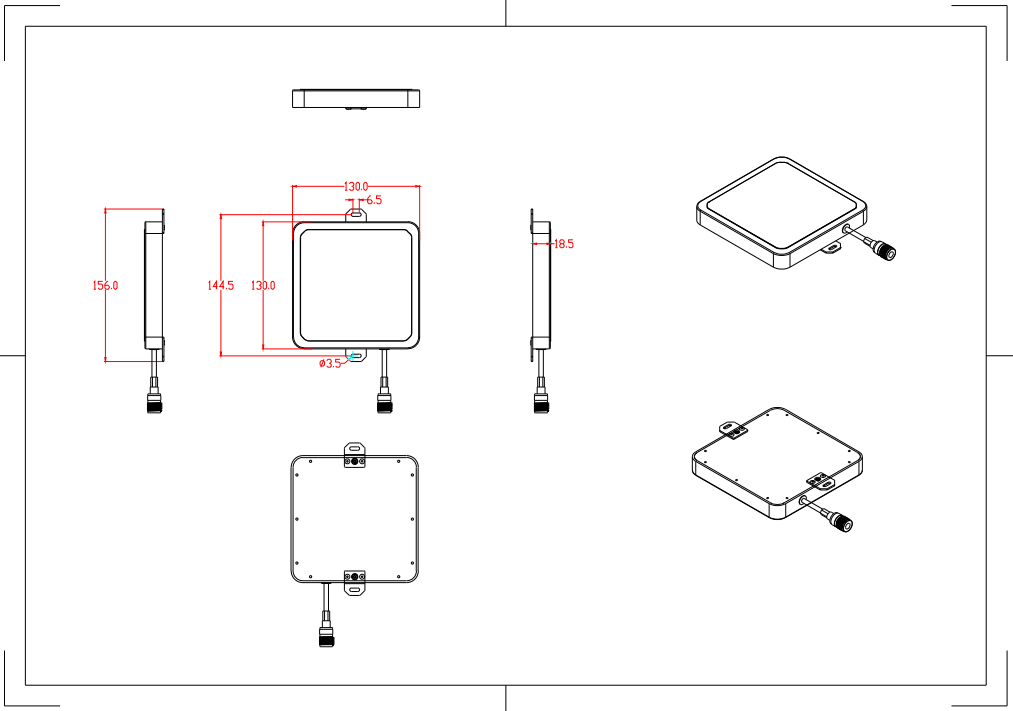

Antenna Drawing
